Case IH Farmall Compact 50C vs Kioti DK5010

Across 8 measurable specs, the Kioti DK5010 leads 5 categories to 3. Machine pages: Case IH Farmall Compact 50C and Kioti DK5010.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

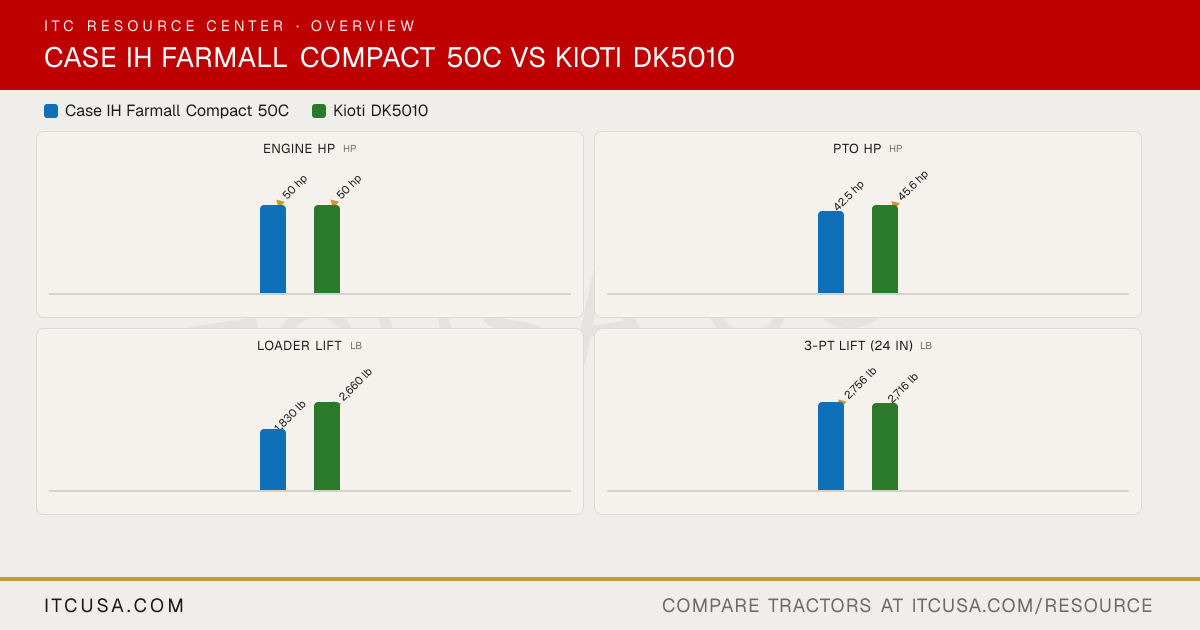

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 50C	KiotiDK5010

▶Engine
Engine Manufacturer	LS Mtron	KIOTI (Daedong)
Engine Model	Not Published	3HT-TM4B
Engine Type	Diesel, 3-cylinder, turbocharged	In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI (3-cylinder)
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	50 hp	50.3 hp
PTO Power	40 hp	45.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Common rail direct injection	Common Rail Direct Injection (CRDI)
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	Not Published	14.5 gpm
Overall Hydraulic Pump Flow	Not Published	14.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	2	2
▶Fluid Capacity
Fuel Tank Capacity	10.5 gal	11.9 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	2,716 lb
Lift Control Type	Mechanical draft control (MDC)	Position
▶Transmission & Drivetrain
Transmission Type	3-range hydrostatic (HST)	Synchronized shuttle
No. of Speeds	infinitely variable, 3 ranges	8F/8R
Max Travel Speed (Forward)	Not Published	17.3 mph
Max Travel Speed (Reverse)	Not Published	16.9 mph
Clutch	Not Applicable	Dry type, single stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Not Published	Hydrostatic power steering
Brakes	Not Published	Wet multi disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	128.1 in	124.3 in
Overall Width	Not Published	62.8 in
Wheelbase	73.2 in	71.3 in
Ground Clearance	Not Published	15.2 in
Min. Turn Radius without Brakes	Not Published	8.6 ft (with brake applied)
Height to Top of ROPS	97.1 in	92.0 in
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	Not Published
▶Weight
Tractor Weight (Base)	3,770 lb	3,373 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	13.6-24
R3 Turf - Front	Not Published	29-12.5-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Quick attach (QA) bucket, 66 in / 72 in
Loader Model	L360A	KL5510; KL5520
Loader Lift Height	112 in	KL5510: 109 in; KL5520: 105.7 in
Loader Lift Capacity (Full Height)	2,500 lb	KL5510: 2,660 lb; KL5520: 2,474 lb
Loader Breakout Force	3,114 lbf	KL5510: 3,900 lb; KL5520: 3,895 lb
▶Warranty
Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Case IH dealer near you→Find a KIOTI dealer near you→

Case IH Farmall Compact 50C vs Kioti DK5010: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 50C or the Kioti DK5010?

The Kioti DK5010 leads on engine hp at 50.3 hp hp, compared to 50 hp hp for the Case IH Farmall Compact 50C.

Which has more PTO horsepower, the Case IH Farmall Compact 50C or the Kioti DK5010?

The Kioti DK5010 leads on pto hp at 45.6 hp hp, compared to 40 hp hp for the Case IH Farmall Compact 50C.

Which is heavier, the Case IH Farmall Compact 50C or the Kioti DK5010?

The Case IH Farmall Compact 50C leads on weight at 3,770 lb lb, compared to 3,373 lb lb for the Kioti DK5010.

Which has more loader lift capacity, the Case IH Farmall Compact 50C or the Kioti DK5010?

The Kioti DK5010 leads on loader lift at 2,660 lb lb, compared to 2,500 lb lb for the Case IH Farmall Compact 50C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 50C or the Kioti DK5010?

The Case IH Farmall Compact 50C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,716 lb lb for the Kioti DK5010.
