Case IH Farmall Compact 50C vs Kioti NX5010

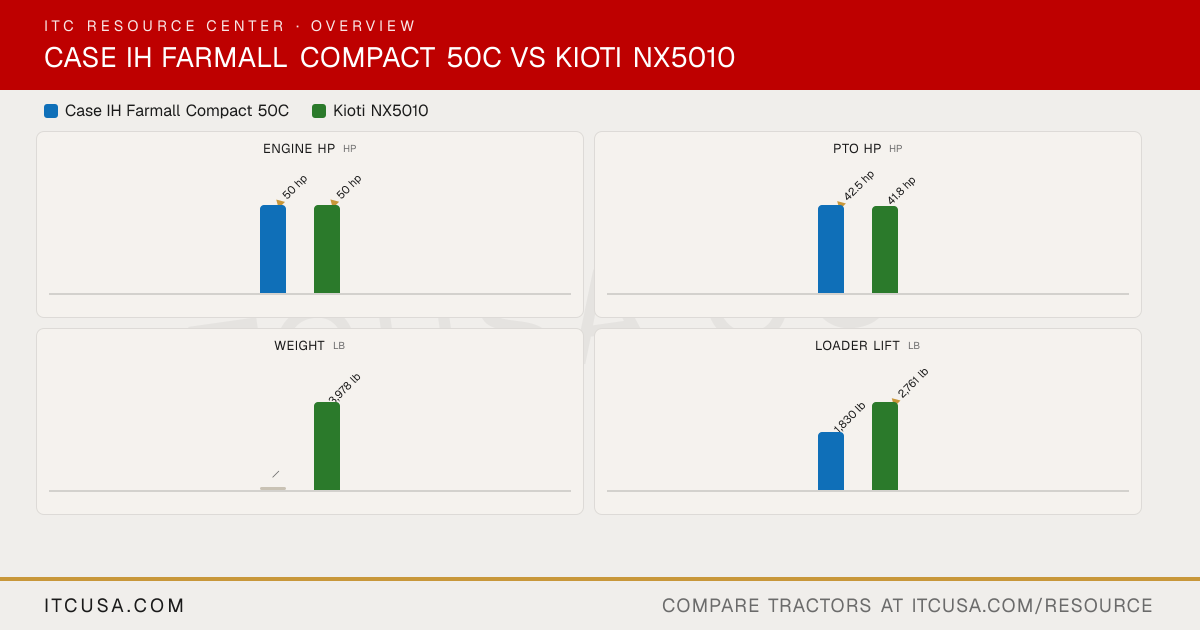

Across 7 measurable specs, the Kioti NX5010 leads 4 categories to 2 (1 tied). Machine pages: Case IH Farmall Compact 50C and Kioti NX5010.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 50C	KiotiNX5010

▶Engine
PTO Power	42.5 hp	41.8 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection	Common Rail Direct Injection (CRDI)
Displacement	115.9 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	Not Published	2600 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	50 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	3,978 lb
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	Not Published	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)
▶Hydraulics
Pump Type	Not Published	Gear
Steering Flow	Not Published	8.2 gpm
Implement Flow	8.2 gpm	8.2 gpm
Total Hydraulic Flow	Not Published	16.50 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	16.50 gpm
No. of Optional Remote Valves	Not Published	1
No. of Standard Remote Valves	Not Published	1
▶PTO & Hitch
PTO Rear	540 rpm (standard)	540 rpm
PTO Type	Independent rear PTO with electro-hydraulic engagement (standard)	Independent
Lift Control Type	Mechanical position control	Position with Draft Control
Hitch Lift Capacity	Not Published	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional mid-PTO @ 2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Not Published	Category I
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	3,177 lbs
▶Tire Options
R3 Turf - Rear	Not Published	21.5lx16.1
R3 Turf - Front	Not Published	29x12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	14.9-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.58 gal
Fuel Tank Capacity	Not Published	14.8 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
Transmission / Hydraulic System Capacity	Not Published	14.53 gal
▶Loader & Attachments
Loader Lift Height	112 in	108.3 in
Loader Breakout Force	3,114 lb	3,727 lb
Quick Attach Loader System	Compatible with L360A loader	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	1,830 lb	2,761 lb
▶Transmission & Drivetrain
Clutch	Not Published	Dry Type Single Stage
No. of Speeds	16x16 (Mechanical) / 3-range (Hydrostatic)	24X24
Transmission Type	16x16 Mechanical Shuttle or 3-range Hydrostatic	Synchro Shuttle
Max Travel Speed (Forward)	Not Published	15.71 mph
Max Travel Speed (Reverse)	Not Published	13.96 mph
Differential Lock & Limited Slip Options	Not Published	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Brakes	Not Published	Wet Multi Disc
Steering	Not Published	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable Seat
▶Dimensions & Maneuverability
Wheelbase	Not Published	75.6 in
Overall Width	Not Published	65.6 in
Ground Clearance	Not Published	13.7 in
Height to Top of ROPS	Not Published	103.1 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	Not Published	139.6 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection

Case IH Farmall Compact 50C vs Kioti NX5010: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 50C or the Kioti NX5010?

They are effectively tied: both machines are rated at 50 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 50C or the Kioti NX5010?

The Case IH Farmall Compact 50C leads on pto hp at 42.5 hp hp, compared to 41.8 hp hp for the Kioti NX5010.

Which has more loader lift capacity, the Case IH Farmall Compact 50C or the Kioti NX5010?

The Kioti NX5010 leads on loader lift at 2,761 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 50C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 50C or the Kioti NX5010?

The Kioti NX5010 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,756 lb lb for the Case IH Farmall Compact 50C.
