Across 4 measurable specs, the Case IH Farmall Compact 55C leads 2 categories to 1 (1 tied). Machine pages: Case IH Farmall Compact 55C and Kioti DK55 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Case IH Farmall Compact 55C Kioti DK55 Engine HP (hp) 55 hp 55 hp PTO HP (hp) ▲ 46.7 hp45.2 hp Loader Lift (lb) 1,830 lb — 3-Pt Lift (24 in) (lb) ▲ 2,756 lb2,643 lb Lift Height (in) 112 in — Breakout Force (lbf) 3,114 lbf — Hydraulic Flow (gpm) 8.2 gpm ▲ 14.2 gpmTravel Speed (mph) — 16.4 mph

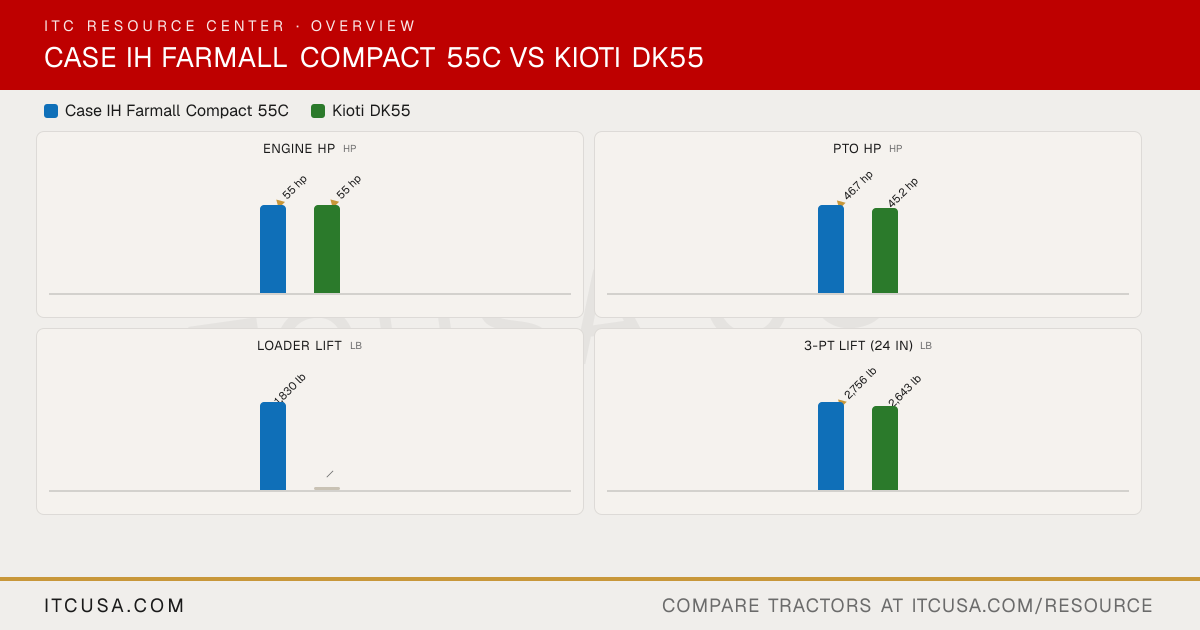

Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall Compact 55C Kioti DK55
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall Compact 55C Kioti DK55
▶ EnginePTO Power 46.7 hp 45.2 hp Alternator Not Published 50 A, 12 V Air Cleaner Not Published Not Published Engine Type Diesel, turbocharged Turbocharged diesel, liquid-cooled Fuel System Common Rail Direct Injection In-line pump system; mechanical control; indirect injection Displacement 115.9 in³ 134.1 in³ No. of Cylinders 3 4 Rated Engine Speed 2600 rpm 2600 rpm Cooling System Type Not Published Liquid-cooled Engine Manufacturer Not Published KIOTI (Daedong) Engine Power (Gross) 55 hp 55 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ HydraulicsPump Type Not Published Tandem gear Steering Flow Not Published 4.2 gpm Implement Flow 8.2 gpm 9.9 gpm Total Hydraulic Flow Not Published 14.2 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published 14.2 gpm No. of Optional Remote Valves Cab: Not offered; Non-cab: 2 Not Published No. of Standard Remote Valves Cab: 2; Non-cab: 1 2 ▶ PTO & HitchPTO Rear 540 rpm 540/1000 RPM PTO Type Rear: Independent, electro-hydraulic engagement Independent Lift Control Type Mechanical Draft Control (MDC) Top link draft sensing Hitch Lift Capacity Not Published 2,643 lbs at 24 in Mid-PTO Availability Optional @ 2,000 rpm Not Published Category, 3-Point Hitch Category 1 Category II/I Hitch Lift Capacity (at 24”) 2,756 lb @ 24 in behind pin 2,643 lbs ▶ Tire OptionsR3 Turf - Rear Not Published 21.5LX16.1/4 R3 Turf - Front Not Published 29X12.5X15/6 Tire Size & Options Not Published R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear Not Published 17.5X24/8 R4 Industrial - Front Not Published 12X16.5/6 R1 Agricultural - Rear Not Published 14.9-28 R1 Agricultural - Front Not Published 9.5-20/6 ▶ Fluid CapacityCoolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Fuel Tank Capacity 12.4 gal / 10.5 gal 18 gal Front Axle Fluid Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published ▶ Loader & AttachmentsLoader Lift Height 112 in Not Published Loader Breakout Force 3,114 lb Not Published Quick Attach Loader System Compatible with L360A loader (quick-attach) Not Published Loader Lift Capacity (Full Height) 1,830 lb Not Published ▶ Transmission & DrivetrainClutch Dry clutch (mechanical shuttle) Dry disc No. of Speeds 16F/16R (Mechanical); Hydrostatic: 3 ranges 12F/12R Transmission Type 16x16 mechanical shuttle w/ synchro shift (dry clutch); optional 3-range hydrostatic Synchronized shuttle Max Travel Speed (Forward) Not Published 16.4 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical differential lock Mechanical rear differential lock ▶ Chassis, Steering & ControlsBrakes Not Published Wet disc brakes Steering Not Published Power steering Frame Type Not Published Not Published Front Axle Type Mechanical Front Drive (MFD) Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Adjustable suspension seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 73.2 in 76.8 in Overall Width Not Published 69.3 in Ground Clearance Not Published 17.5 in Height to Top of ROPS 97.1 in 106.5 in Height to Top of Cab Model 93.3 in 104 in Height to Top of ROPS (folded) 78.6 in 85.5 in Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 128.1 in 130.5 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Case IH Farmall Compact 55C vs Kioti DK55: Quick Answers
Which has more horsepower, the Case IH Farmall Compact 55C or the Kioti DK55? They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 55C or the Kioti DK55? The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 45.2 hp hp for the Kioti DK55.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the Kioti DK55? The Case IH Farmall Compact 55C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,643 lb lb for the Kioti DK55. More Head-to-Heads
