Which has more horsepower, the Case IH Farmall Compact 55C or the Kioti NX5510C?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 55C or the Kioti NX5510C?

The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 46 hp hp for the Kioti NX5510C.

Which has more loader lift capacity, the Case IH Farmall Compact 55C or the Kioti NX5510C?

The Kioti NX5510C leads on loader lift at 2,761 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 55C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the Kioti NX5510C?

The Kioti NX5510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,756 lb lb for the Case IH Farmall Compact 55C.

Case IH Farmall Compact 55C vs Kioti NX5510C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Kioti NX5510C leads 4 categories to 2 (1 tied). Machine pages: Case IH Farmall Compact 55C and Kioti NX5510C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 55C	Kioti NX5510C
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 46.7 hp	46 hp
Weight (lb)	—	4,562 lb
Loader Lift (lb)	1,830 lb	▲ 2,761 lb
3-Pt Lift (24 in) (lb)	2,756 lb	▲ 3,177 lb
Lift Height (in)	▲ 112 in	108.3 in
Breakout Force (lbf)	3,114 lbf	▲ 3,727 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 16.5 gpm
Travel Speed (mph)	—	17.4 mph

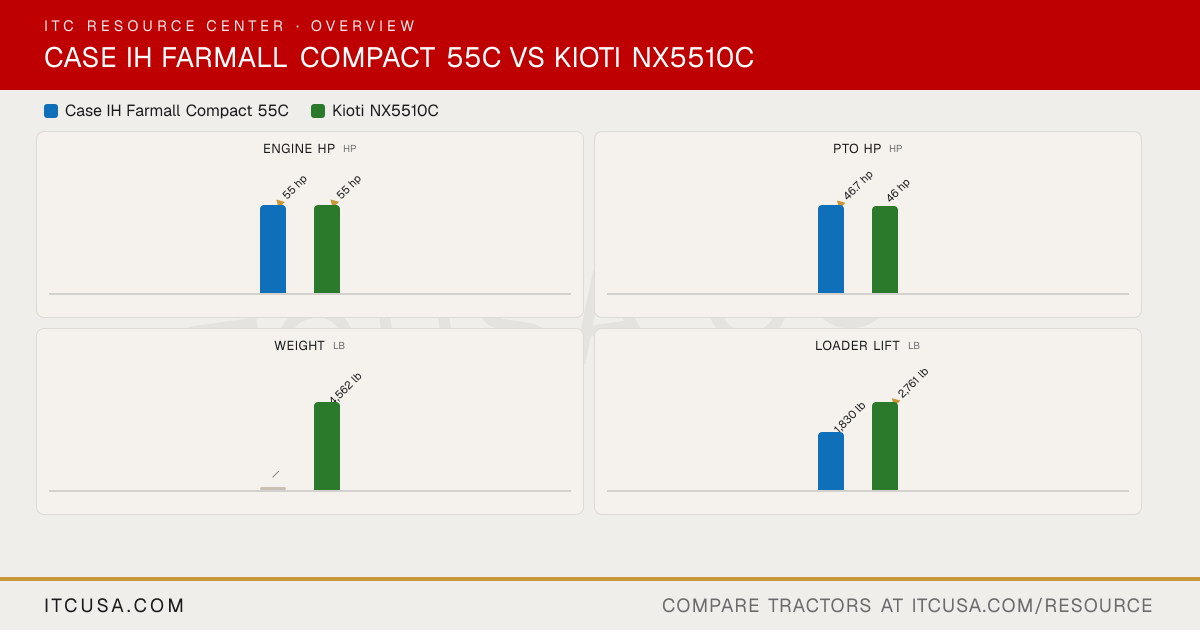

The headline numbers at a glance.

Case IH Farmall Compact 55CKioti NX5510C

Engine HPhp

▲55 hp

PTO HPhp

▲46.7 hp

46 hp

Weightlb

—

4,562 lb

Loader Liftlb

1,830 lb

▲2,761 lb

3-Pt Lift (24 in)lb

2,756 lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 55C	KiotiNX5510C


PTO Power	46.7 hp	46 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection	Common Rail Direct Injection (CRDI)
Displacement	115.9 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Water-cooled
Engine Manufacturer	Not Published	KIOTI (Daedong)
Engine Power (Gross)	55 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	4,562 lb

Warranty Length & Coverage	Not Published	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Not Published	Gear
Steering Flow	Not Published	8.2 gpm
Implement Flow	8.2 gpm	8.2 gpm
Total Hydraulic Flow	Not Published	16.50 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	16.50 gpm
No. of Optional Remote Valves	Cab: Not offered; Non-cab: 2	1
No. of Standard Remote Valves	Cab: 2; Non-cab: 1	1

PTO Rear	540 rpm	540 rpm
PTO Type	Rear: Independent, electro-hydraulic engagement	Independent
Lift Control Type	Mechanical Draft Control (MDC)	Position with Draft Control
Hitch Lift Capacity	Not Published	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional @ 2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	3,177 lbs

R3 Turf - Rear	Not Published	21.5lx16.1
R3 Turf - Front	Not Published	29x12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	13.6-28
R1 Agricultural - Front	Not Published	9.5-18

Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.58 gal
Fuel Tank Capacity	12.4 gal / 10.5 gal	14.8 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
Transmission / Hydraulic System Capacity	Not Published	14.53 gal

Loader Lift Height	112 in	108.3 in
Loader Breakout Force	3,114 lb	3,727 lb
Quick Attach Loader System	Compatible with L360A loader (quick-attach)	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	1,830 lb	2,761 lb

Clutch	Dry clutch (mechanical shuttle)	Dry Type Single Stage
No. of Speeds	16F/16R (Mechanical); Hydrostatic: 3 ranges	24X24
Transmission Type	16x16 mechanical shuttle w/ synchro shift (dry clutch); optional 3-range hydrostatic	Synchro Shuttle
Max Travel Speed (Forward)	Not Published	17.35 mph
Max Travel Speed (Reverse)	Not Published	15.42 mph
Differential Lock & Limited Slip Options	Mechanical differential lock	Differential Lock: Rear (Standard)

Brakes	Not Published	Wet Multi Disc
Steering	Not Published	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable Seat

Wheelbase	73.2 in	75.6 in
Overall Width	Not Published	65.6 in
Ground Clearance	Not Published	15.7 in
Height to Top of ROPS	97.1 in	Not Applicable
Height to Top of Cab Model	93.3 in	94.1 in
Height to Top of ROPS (folded)	78.6 in	Not Applicable
Min. Turn Radius without Brakes	Not Published	9.97 ft (3.04 m)
Overall Length with 3-Point Hitch	128.1 in	139.6 in

Accessories that fit	None tagged yet	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Case IH Farmall Compact 55C vs Kioti NX5510C: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 55C or the Kioti NX5510C?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 55C or the Kioti NX5510C?: The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 46 hp hp for the Kioti NX5510C.
Which has more loader lift capacity, the Case IH Farmall Compact 55C or the Kioti NX5510C?: The Kioti NX5510C leads on loader lift at 2,761 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 55C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the Kioti NX5510C?: The Kioti NX5510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,756 lb lb for the Case IH Farmall Compact 55C.
