Which has more horsepower, the Case IH Farmall Compact 55C or the TYM 5520?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 55C or the TYM 5520?

The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 44 hp hp for the TYM 5520.

Which has more loader lift capacity, the Case IH Farmall Compact 55C or the TYM 5520?

The TYM 5520 leads on loader lift at 2,701 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 55C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the TYM 5520?

The Case IH Farmall Compact 55C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,425 lb lb for the TYM 5520.

Case IH Farmall Compact 55C vs TYM 5520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Case IH Farmall Compact 55C, 3 to the TYM 5520, 1 tied. Machine pages: Case IH Farmall Compact 55C and TYM 5520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 55C	TYM 5520
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 46.7 hp	44 hp
Loader Lift (lb)	1,830 lb	▲ 2,701 lb
3-Pt Lift (24 in) (lb)	▲ 2,756 lb	2,425 lb
Lift Height (in)	▲ 112 in	106.6 in
Breakout Force (lbf)	3,114 lbf	▲ 3,660 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 16.5 gpm
Travel Speed (mph)	—	19.5 mph

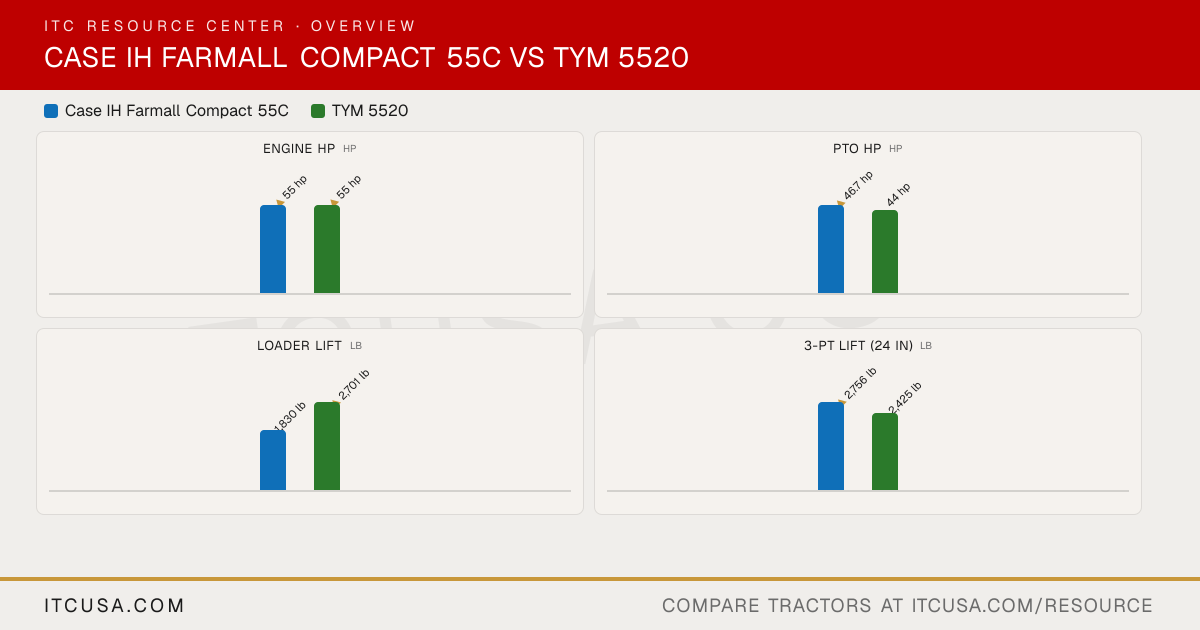

The headline numbers at a glance.

Case IH Farmall Compact 55CTYM 5520

Engine HPhp

▲55 hp

PTO HPhp

▲46.7 hp

44 hp

Weightlb

—

Loader Liftlb

1,830 lb

▲2,701 lb

3-Pt Lift (24 in)lb

▲2,756 lb

2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 55C	TYM5520


PTO Power	46.7 hp	44 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	Diesel, turbocharged	4-cylinder, turbocharged diesel
Fuel System	Common Rail Direct Injection	IDI
Displacement	115.9 in³	139.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	TYM
Engine Power (Gross)	55 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	Not Published	5.2 gpm
Implement Flow	8.2 gpm	11.4 gpm
Total Hydraulic Flow	Not Published	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	16.5 gpm
No. of Optional Remote Valves	Cab: Not offered; Non-cab: 2	Up to 4
No. of Standard Remote Valves	Cab: 2; Non-cab: 1	0

PTO Rear	540 rpm	540/750 rpm
PTO Type	Rear: Independent, electro-hydraulic engagement	Independent
Lift Control Type	Mechanical Draft Control (MDC)	Position control
Hitch Lift Capacity	Not Published	3,306 lb
Mid-PTO Availability	Optional @ 2,000 rpm	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	2,425 lb

R3 Turf - Rear	Not Published	41x14-20 / 44x18-20
R3 Turf - Front	Not Published	27x8.5-15 / 29x12.5-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5Lx24
R4 Industrial - Front	Not Published	12-16.5
R1 Agricultural - Rear	Not Published	13.6-26
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	6.2 qt
Crankcase Capacity	Not Published	4.8 qt
Fuel Tank Capacity	12.4 gal / 10.5 gal	11.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
Transmission / Hydraulic System Capacity	Not Published	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	112 in	106.6 in
Loader Breakout Force	3,114 lb	3,660 lb
Quick Attach Loader System	Compatible with L360A loader (quick-attach)	BL200: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	1,830 lb	2,701 lb

Clutch	Dry clutch (mechanical shuttle)	Dry single type (N/A)
No. of Speeds	16F/16R (Mechanical); Hydrostatic: 3 ranges	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	16x16 mechanical shuttle w/ synchro shift (dry clutch); optional 3-range hydrostatic	HST: Hydrostatic (HST); Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Differential lock system

Brakes	Not Published	Wet, multi disc
Steering	Not Published	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Suspension seat

Wheelbase	73.2 in	71.1 in
Overall Width	Not Published	64.9 in
Ground Clearance	Not Published	15.5 in
Height to Top of ROPS	97.1 in	98.4 in
Height to Top of Cab Model	93.3 in	Not Applicable
Height to Top of ROPS (folded)	78.6 in	Not Published
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	128.1 in	127.4 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00

Case IH Farmall Compact 55C vs TYM 5520: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 55C or the TYM 5520?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 55C or the TYM 5520?: The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 44 hp hp for the TYM 5520.
Which has more loader lift capacity, the Case IH Farmall Compact 55C or the TYM 5520?: The TYM 5520 leads on loader lift at 2,701 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 55C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the TYM 5520?: The Case IH Farmall Compact 55C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,425 lb lb for the TYM 5520.
