John Deere 1025R vs John Deere 1R 25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the John Deere 1025R, 4 to the John Deere 1R 25, 1 tied. Machine pages: John Deere 1025R and John Deere 1R 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1025R	John Deere 1R 25
Engine HP (hp)	▲ 23.9 hp	23.2 hp
PTO HP (hp)	▲ 18 hp	17.8 hp
Weight (lb)	1,444 lb	▲ 1,797 lb
Loader Lift (lb)	▲ 836 lb	803 lb
3-Pt Lift (24 in) (lb)	758 lb	▲ 915 lb
Lift Height (in)	72 in	72 in
Breakout Force (lbf)	▲ 2,008 lbf	1,823 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 7 gpm
Travel Speed (mph)	9.1 mph	▲ 12.3 mph

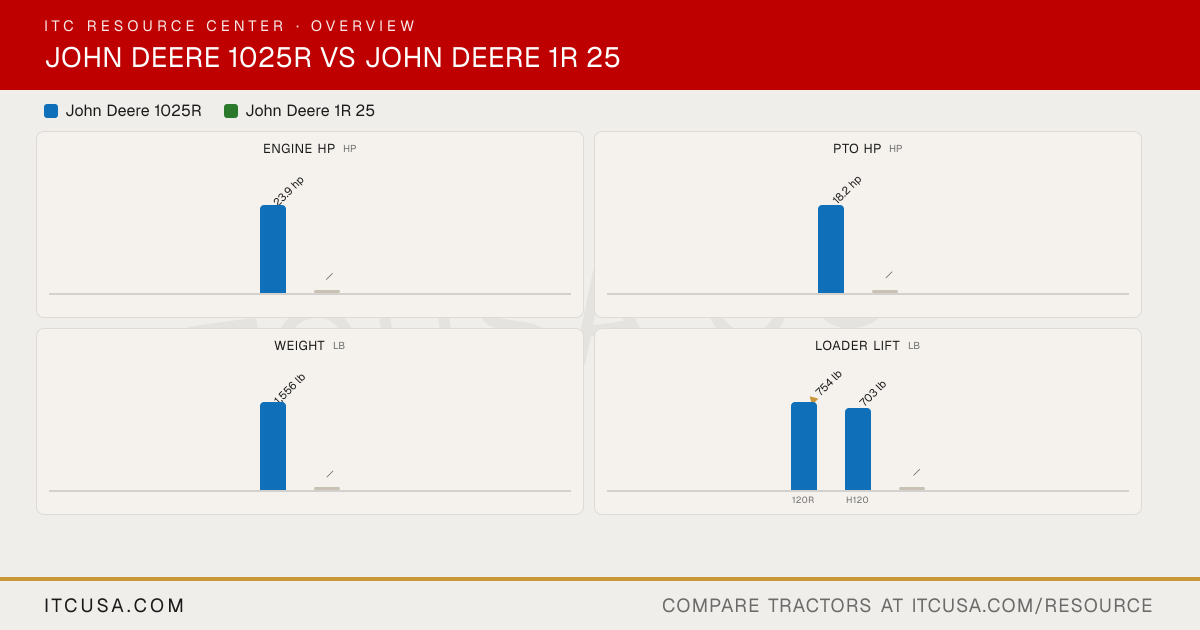

The headline numbers at a glance.

John Deere 1025RJohn Deere 1R 25

Engine HPhp

▲23.9 hp

23.2 hp

PTO HPhp

▲18 hp

17.8 hp

Weightlb

1,444 lb

▲1,797 lb

Loader Liftlb

752 lb

548 lb

825 lb

▲836 lb

803 lb

120R NSL120R MSLD120H120

3-Pt Lift (24 in)lb

758 lb

▲915 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	John Deere1R 25


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-CJT	3TNV80F-NCJT
Engine Type	3-cylinder, liquid-cooled diesel	Diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	23.9 hp	23.2 hp
PTO Power	18 hp	17.8 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry with safety element	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published

Pump Type	Gear	Gear
Implement Flow	3.3 gpm	3.5 gpm
Steering Flow	3.3 gpm	3.5 gpm
Total Hydraulic Flow	6.5 gpm	7 gpm
Overall Hydraulic Pump Flow	6.5 gpm	7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Three	Not Published

Fuel Tank Capacity	5.6 gal	5.31 gal
Coolant Capacity	3.9 qt	Not Published
Crankcase Capacity	2.9 qt	Not Published
Transmission / Hydraulic System Capacity	3.25 gal	Not Published
Front Axle Fluid Capacity	3.0 qt	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2100 rpm	Standard, 2100 rpm
Category, 3-Point Hitch	Limited Category I	Limited Category I
Hitch Lift Capacity	1177 lb	Not Published
Hitch Lift Capacity (at 24”)	758 lb	915 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic - 2 range	Hydrostatic - 2 range
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	Infinite (hydrostatic), 2 ranges forward and reverse
Max Travel Speed (Forward)	9.1 mph	12.3 mph
Max Travel Speed (Reverse)	9.1 mph	12.3 mph
Clutch	wet disc	Not Published
Differential Lock & Limited Slip Options	Standard rear differential lock	Not Published

Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Foldable ROPS, standard equipment
Steering	Power steering	Power steering
Brakes	Wet disk, left-hand pedal	Wet disc, left-hand pedal
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Deluxe suspension seat with high back and adjustable settings; tilt steering
Front Axle Type	Four-wheel drive (mechanical front-wheel drive, on-the-go engagement)	Four-wheel drive
Front Axle Rating	1349 lb	Not Published
Drawbar Capacity	2165 lb	Not Published

Overall Length with 3-Point Hitch	108 in	Not Published
Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	47.22 in (R3 tires); 48.03 in (R4 tires)
Wheelbase	57.1 in	63 in
Ground Clearance	9.0 in under the front axle (operator's manual); 7.7 in (Deere website)	Not Published
Min. Turn Radius without Brakes	88.8 in	Not Published
Height to Top of ROPS	90 in	Not Published
Height to Top of ROPS (folded)	73 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1444 lb	Approx. 1,797 lb open station; 2,242 lb cab (shipping weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard R4, optional R3	R3 Turf, R3 Hybrid, or R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	23x8.50-12
R3 Turf - Rear	26x12-12	12-16.5
R4 Industrial - Front	18x8.5-10	23x8.50-12
R4 Industrial - Rear	26x12-12	12-16.5

Quick Attach Loader System	Quik-Park (MSL option on 120R)	Quik-Park
Loader Model	120R (NSL or MSL) or 120E (D120 and H120 on earlier units)	120R
Loader Lift Height	120R (NSL and MSL): 72 in; 120E: 71.2 in; D120 and H120: 71.2 in	120R: 72 in
Loader Lift Capacity (Full Height)	120R NSL: 752 lb (49 in bucket) or 704 lb (53 in bucket); 120R MSL: 548 lb (53 in bucket); D120: 825 lb; H120: 836 lb (all at pivot pin, max height)	120R (NSL): 803 lb
Loader Breakout Force	120R NSL: 2008 lbf (49 in bucket) or 1816 lbf (53 in bucket); 120R MSL: 1591 lbf; D120: 1808 lbf; H120: 1819 lbf (at pivot pin)	1823 lbf (at pivot pin)

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use

Find a John Deere dealer near you

John Deere 1025R vs John Deere 1R 25: Quick Answers

Which has more horsepower, the John Deere 1025R or the John Deere 1R 25?: The John Deere 1025R leads on engine hp at 23.9 hp hp, compared to 23.2 hp hp for the John Deere 1R 25.
Which has more PTO horsepower, the John Deere 1025R or the John Deere 1R 25?: The John Deere 1025R leads on pto hp at 18 hp hp, compared to 17.8 hp hp for the John Deere 1R 25.
Which is heavier, the John Deere 1025R or the John Deere 1R 25?: The John Deere 1R 25 leads on weight at 1,797 lb lb, compared to 1,444 lb lb for the John Deere 1025R.
Which has more loader lift capacity, the John Deere 1025R or the John Deere 1R 25?: The John Deere 1025R leads on loader lift at 836 lb lb, compared to 803 lb lb for the John Deere 1R 25.
Which has more three-point hitch lift capacity, the John Deere 1025R or the John Deere 1R 25?: The John Deere 1R 25 leads on 3-pt lift (24 in) at 915 lb lb, compared to 758 lb lb for the John Deere 1025R.

More Head-to-Heads

Category Verdict

Spec	John Deere 1025R	John Deere 1R 25
Engine HP (hp)	▲ 23.9 hp	23.2 hp
PTO HP (hp)	▲ 18 hp	17.8 hp
Weight (lb)	1,444 lb	▲ 1,797 lb
Loader Lift (lb)	▲ 836 lb	803 lb
3-Pt Lift (24 in) (lb)	758 lb	▲ 915 lb
Lift Height (in)	72 in	72 in
Breakout Force (lbf)	▲ 2,008 lbf	1,823 lbf
Hydraulic Flow (gpm)	6.5 gpm	▲ 7 gpm
Travel Speed (mph)	9.1 mph	▲ 12.3 mph

The headline numbers at a glance.

John Deere 1025RJohn Deere 1R 25

Engine HPhp

▲23.9 hp

23.2 hp

PTO HPhp

▲18 hp

17.8 hp

Weightlb

1,444 lb

▲1,797 lb

Loader Liftlb

752 lb

548 lb

825 lb

▲836 lb

803 lb

120R NSL120R MSLD120H120

3-Pt Lift (24 in)lb

758 lb

▲915 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	John Deere1R 25


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-CJT	3TNV80F-NCJT
Engine Type	3-cylinder, liquid-cooled diesel	Diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	23.9 hp	23.2 hp
PTO Power	18 hp	17.8 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry with safety element	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published

Pump Type	Gear	Gear
Implement Flow	3.3 gpm	3.5 gpm
Steering Flow	3.3 gpm	3.5 gpm
Total Hydraulic Flow	6.5 gpm	7 gpm
Overall Hydraulic Pump Flow	6.5 gpm	7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Three	Not Published

Fuel Tank Capacity	5.6 gal	5.31 gal
Coolant Capacity	3.9 qt	Not Published
Crankcase Capacity	2.9 qt	Not Published
Transmission / Hydraulic System Capacity	3.25 gal	Not Published
Front Axle Fluid Capacity	3.0 qt	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2100 rpm	Standard, 2100 rpm
Category, 3-Point Hitch	Limited Category I	Limited Category I
Hitch Lift Capacity	1177 lb	Not Published
Hitch Lift Capacity (at 24”)	758 lb	915 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic - 2 range	Hydrostatic - 2 range
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	Infinite (hydrostatic), 2 ranges forward and reverse
Max Travel Speed (Forward)	9.1 mph	12.3 mph
Max Travel Speed (Reverse)	9.1 mph	12.3 mph
Clutch	wet disc	Not Published
Differential Lock & Limited Slip Options	Standard rear differential lock	Not Published

Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Foldable ROPS, standard equipment
Steering	Power steering	Power steering
Brakes	Wet disk, left-hand pedal	Wet disc, left-hand pedal
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Deluxe suspension seat with high back and adjustable settings; tilt steering
Front Axle Type	Four-wheel drive (mechanical front-wheel drive, on-the-go engagement)	Four-wheel drive
Front Axle Rating	1349 lb	Not Published
Drawbar Capacity	2165 lb	Not Published

Overall Length with 3-Point Hitch	108 in	Not Published
Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	47.22 in (R3 tires); 48.03 in (R4 tires)
Wheelbase	57.1 in	63 in
Ground Clearance	9.0 in under the front axle (operator's manual); 7.7 in (Deere website)	Not Published
Min. Turn Radius without Brakes	88.8 in	Not Published
Height to Top of ROPS	90 in	Not Published
Height to Top of ROPS (folded)	73 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1444 lb	Approx. 1,797 lb open station; 2,242 lb cab (shipping weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard R4, optional R3	R3 Turf, R3 Hybrid, or R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	23x8.50-12
R3 Turf - Rear	26x12-12	12-16.5
R4 Industrial - Front	18x8.5-10	23x8.50-12
R4 Industrial - Rear	26x12-12	12-16.5

Quick Attach Loader System	Quik-Park (MSL option on 120R)	Quik-Park
Loader Model	120R (NSL or MSL) or 120E (D120 and H120 on earlier units)	120R
Loader Lift Height	120R (NSL and MSL): 72 in; 120E: 71.2 in; D120 and H120: 71.2 in	120R: 72 in
Loader Lift Capacity (Full Height)	120R NSL: 752 lb (49 in bucket) or 704 lb (53 in bucket); 120R MSL: 548 lb (53 in bucket); D120: 825 lb; H120: 836 lb (all at pivot pin, max height)	120R (NSL): 803 lb
Loader Breakout Force	120R NSL: 2008 lbf (49 in bucket) or 1816 lbf (53 in bucket); 120R MSL: 1591 lbf; D120: 1808 lbf; H120: 1819 lbf (at pivot pin)	1823 lbf (at pivot pin)

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use

Find a John Deere dealer near you

John Deere 1025R vs John Deere 1R 25: Quick Answers

Which has more horsepower, the John Deere 1025R or the John Deere 1R 25?

The John Deere 1025R leads on engine hp at 23.9 hp hp, compared to 23.2 hp hp for the John Deere 1R 25.

Which has more PTO horsepower, the John Deere 1025R or the John Deere 1R 25?

The John Deere 1025R leads on pto hp at 18 hp hp, compared to 17.8 hp hp for the John Deere 1R 25.

Which is heavier, the John Deere 1025R or the John Deere 1R 25?

The John Deere 1R 25 leads on weight at 1,797 lb lb, compared to 1,444 lb lb for the John Deere 1025R.

Which has more loader lift capacity, the John Deere 1025R or the John Deere 1R 25?

The John Deere 1025R leads on loader lift at 836 lb lb, compared to 803 lb lb for the John Deere 1R 25.

Which has more three-point hitch lift capacity, the John Deere 1025R or the John Deere 1R 25?

The John Deere 1R 25 leads on 3-pt lift (24 in) at 915 lb lb, compared to 758 lb lb for the John Deere 1025R.
