John Deere 1025R vs John Deere 2210

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the John Deere 1025R leads 9 categories to 0. Machine pages: John Deere 1025R and John Deere 2210.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1025R	John Deere 2210
Engine HP (hp)	▲ 23.9 hp	23 hp
PTO HP (hp)	▲ 18 hp	17.7 hp
Weight (lb)	▲ 1,444 lb	1,400 lb
Loader Lift (lb)	▲ 836 lb	622 lb
3-Pt Lift (24 in) (lb)	▲ 758 lb	701 lb
Lift Height (in)	▲ 72 in	68.5 in
Breakout Force (lbf)	▲ 2,008 lbf	1,577 lbf
Hydraulic Flow (gpm)	▲ 6.5 gpm	5.5 gpm
Travel Speed (mph)	▲ 9.1 mph	8.4 mph

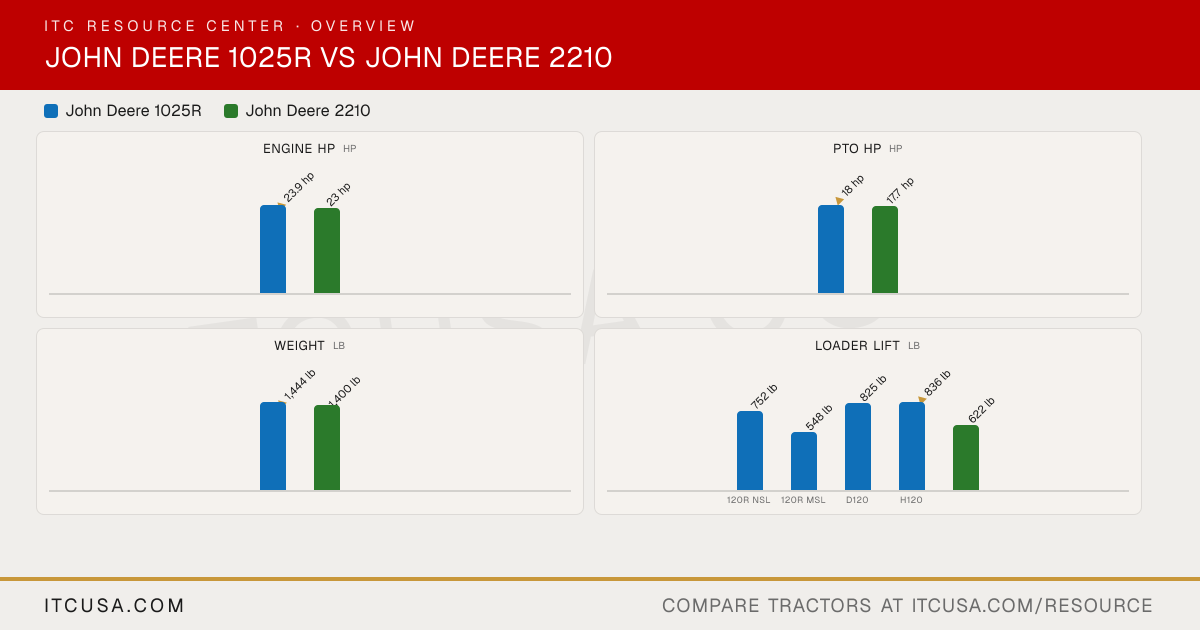

The headline numbers at a glance.

John Deere 1025RJohn Deere 2210

Engine HPhp

▲23.9 hp

23 hp

PTO HPhp

▲18 hp

17.7 hp

Weightlb

▲1,444 lb

1,400 lb

Loader Liftlb

752 lb

548 lb

825 lb

▲836 lb

622 lb

120R NSL120R MSLD120H120

3-Pt Lift (24 in)lb

▲758 lb

701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	John Deere2210


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-CJT	3TNE74
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder liquid-cooled diesel, indirect injection
No. of Cylinders	3	3
Displacement	77.3 in³	61.4 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	23.9 hp	23 hp
PTO Power	18 hp	17.7 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry with safety element	Dry type with safety element
Fuel System	Indirect injection	Indirect injection, in-line fuel pump with solenoid shutoff
Alternator	40 A, 12 V	20 A

Pump Type	Gear	Not Published
Implement Flow	3.3 gpm	3 gpm
Steering Flow	3.3 gpm	2.5 gpm
Total Hydraulic Flow	6.5 gpm	5.5 gpm
Overall Hydraulic Pump Flow	6.5 gpm	5.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Three	Not Published

Fuel Tank Capacity	5.6 gal	5.0 gal
Coolant Capacity	3.9 qt	3.2 qt
Crankcase Capacity	2.9 qt	2.2 qt
Transmission / Hydraulic System Capacity	3.25 gal	3.4 gal
Front Axle Fluid Capacity	3.0 qt	2.6 qt

PTO Type	Independent	Independent, wet disk clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2100 rpm	Standard, 2100 rpm
Category, 3-Point Hitch	Limited Category I	Category 1
Hitch Lift Capacity	1177 lb	Not Published
Hitch Lift Capacity (at 24”)	758 lb	701 lb
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic - 2 range	2-range hydrostatic
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	9.1 mph	8.4 mph
Max Travel Speed (Reverse)	9.1 mph	6.3 mph
Clutch	wet disc	Not Published
Differential Lock & Limited Slip Options	Standard rear differential lock	Not Published

Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Two-post fixed ROPS; four-wheel drive
Steering	Power steering	Power steering
Brakes	Wet disk, left-hand pedal	Wet disk
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Not Published
Front Axle Type	Four-wheel drive (mechanical front-wheel drive, on-the-go engagement)	Mechanical front wheel drive (MFWD), standard, all ranges, engages on the go
Front Axle Rating	1349 lb	3120 lb
Drawbar Capacity	2165 lb	562 lb

Overall Length with 3-Point Hitch	108 in	104.3 in
Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	47.2 in
Wheelbase	57.1 in	57.1 in
Ground Clearance	9.0 in under the front axle (operator's manual); 7.7 in (Deere website)	7.7 in (front axle)
Min. Turn Radius without Brakes	88.8 in	88.6 in (MFWD off)
Height to Top of ROPS	90 in	77.6 in
Height to Top of ROPS (folded)	73 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1444 lb	1400 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard R4, optional R3	18x8.5-10 front and 26x12.00-12 rear; R1 standard, R3 optional
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12.00-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.50-10
R4 Industrial - Rear	26x12-12	26x12.00-12

Quick Attach Loader System	Quik-Park (MSL option on 120R)	Not Published
Loader Model	120R (NSL or MSL) or 120E (D120 and H120 on earlier units)	210
Loader Lift Height	120R (NSL and MSL): 72 in; 120E: 71.2 in; D120 and H120: 71.2 in	210: 68.5 in
Loader Lift Capacity (Full Height)	120R NSL: 752 lb (49 in bucket) or 704 lb (53 in bucket); 120R MSL: 548 lb (53 in bucket); D120: 825 lb; H120: 836 lb (all at pivot pin, max height)	210: 622 lb (to max height at pivot point)
Loader Breakout Force	120R NSL: 2008 lbf (49 in bucket) or 1816 lbf (53 in bucket); 120R MSL: 1591 lbf; D120: 1808 lbf; H120: 1819 lbf (at pivot pin)	210: 1577 lbf (at pivot point)

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	Not Published

Find a John Deere dealer near you

John Deere 1025R vs John Deere 2210: Quick Answers

Which has more horsepower, the John Deere 1025R or the John Deere 2210?: The John Deere 1025R leads on engine hp at 23.9 hp hp, compared to 23 hp hp for the John Deere 2210.
Which has more PTO horsepower, the John Deere 1025R or the John Deere 2210?: The John Deere 1025R leads on pto hp at 18 hp hp, compared to 17.7 hp hp for the John Deere 2210.
Which is heavier, the John Deere 1025R or the John Deere 2210?: The John Deere 1025R leads on weight at 1,444 lb lb, compared to 1,400 lb lb for the John Deere 2210.
Which has more loader lift capacity, the John Deere 1025R or the John Deere 2210?: The John Deere 1025R leads on loader lift at 836 lb lb, compared to 622 lb lb for the John Deere 2210.
Which has more three-point hitch lift capacity, the John Deere 1025R or the John Deere 2210?: The John Deere 1025R leads on 3-pt lift (24 in) at 758 lb lb, compared to 701 lb lb for the John Deere 2210.
