John Deere 1025R vs John Deere 3025D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the John Deere 3025D leads 8 categories to 1. Machine pages: John Deere 1025R and John Deere 3025D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1025R	John Deere 3025D
Engine HP (hp)	23.9 hp	▲ 24.4 hp
PTO HP (hp)	18 hp	▲ 20.7 hp
Weight (lb)	1,444 lb	▲ 2,987 lb
Loader Lift (lb)	836 lb	▲ 1,186 lb
3-Pt Lift (24 in) (lb)	758 lb	▲ 2,081.2 lb
Lift Height (in)	72 in	▲ 84 in
Breakout Force (lbf)	▲ 2,008 lbf	1,704 lbf
Hydraulic Flow (gpm)	7 gpm	▲ 8.9 gpm
Travel Speed (mph)	9.1 mph	▲ 11.1 mph

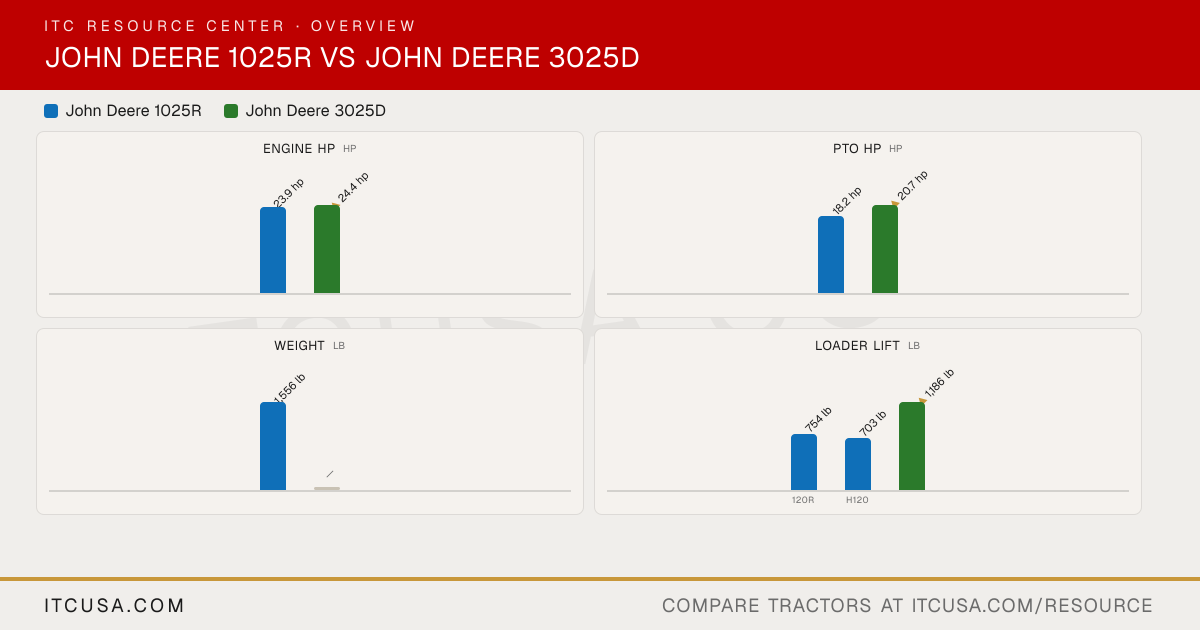

The headline numbers at a glance.

John Deere 1025RJohn Deere 3025D

Engine HPhp

23.9 hp

▲24.4 hp

PTO HPhp

18 hp

▲20.7 hp

Weightlb

1,444 lb

▲2,987 lb

Loader Liftlb

752 lb

548 lb

825 lb

836 lb

▲1,186 lb

120R NSL120R MSLD120H120

3-Pt Lift (24 in)lb

758 lb

▲2,081.2 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	John Deere3025D


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-CJT	3TNV88F-EPJT
Engine Type	3-cylinder, liquid-cooled diesel	4-cycle, inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	77.3 in³	100.1 in³
Rated Engine Speed	3200 rpm	2400 rpm
Engine Power (Gross)	23.9 hp	24.4 hp
PTO Power	18 hp	20.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid
Air Cleaner	Dry with safety element	Dual element
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	55 A, 12 V

Pump Type	Gear	Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow	3.5 gpm	4.8 gpm
Steering Flow	3.5 gpm	3.6 gpm
Total Hydraulic Flow	7 gpm	Not Published
Overall Hydraulic Pump Flow	7 gpm	8.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Three	Up to two (optional)

Fuel Tank Capacity	5.6 gal	10.0 gal
Coolant Capacity	3.9 qt	1.2 gal
Crankcase Capacity	2.9 qt	1.1 gal
Transmission / Hydraulic System Capacity	3.25 gal	9.2 gal
Front Axle Fluid Capacity	3.0 qt	1.0 gal

PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm at 2400 rpm engine (rated)
Mid-PTO Availability	Standard, 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category 1	Category 1
Hitch Lift Capacity	1177 lb	Not Published
Hitch Lift Capacity (at 24”)	758 lb	2,081.2 lb @ 24 in behind link arms
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic - 2 range	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	8F/8R
Max Travel Speed (Forward)	9.1 mph	11.1 mph
Max Travel Speed (Reverse)	9.1 mph	11.6 mph
Clutch	wet disc	Not Published
Differential Lock & Limited Slip Options	Standard rear differential lock	Not Published

Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Not Published
Steering	Power steering	Power steering
Brakes	Wet disk, left-hand pedal	Not Published
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Not Published
Front Axle Type	Four-wheel drive (mechanical front-wheel drive, on-the-go engagement)	MFWD (4WD)
Front Axle Rating	1349 lb	Not Published
Drawbar Capacity	2165 lb	1102 lb

Overall Length with 3-Point Hitch	108 in	111.2 in
Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	57.3 in
Wheelbase	57.1 in	62.6 in
Ground Clearance	9.0 in under the front axle (operator's manual); 7.7 in (Deere website)	13.0 in
Min. Turn Radius without Brakes	88.8 in	6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS	90 in	Not Published
Height to Top of ROPS (folded)	73 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1444 lb	2987 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard R4, optional R3	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	18x8.5-10	27X8.50-15
R3 Turf - Rear	26x12-12	41X14-20
R4 Industrial - Front	18x8.5-10	25X8.50-14
R4 Industrial - Rear	26x12-12	15.00-19.5

Quick Attach Loader System	Quik-Park (MSL option on 120R)	Quick-change attachment carrier
Loader Model	120R (NSL or MSL) or 120E (D120 and H120 on earlier units)	D160
Loader Lift Height	120R (NSL and MSL): 72 in; 120E: 71.2 in; D120 and H120: 71.2 in	84.0 in
Loader Lift Capacity (Full Height)	120R NSL: 752 lb (49 in bucket) or 704 lb (53 in bucket); 120R MSL: 548 lb (53 in bucket); D120: 825 lb; H120: 836 lb (all at pivot pin, max height)	1,186 lb
Loader Breakout Force	120R NSL: 2008 lbf (49 in bucket) or 1816 lbf (53 in bucket); 120R MSL: 1591 lbf; D120: 1808 lbf; H120: 1819 lbf (at pivot pin)	1,704 lb

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Find a John Deere dealer near you

John Deere 1025R vs John Deere 3025D: Quick Answers

Which has more horsepower, the John Deere 1025R or the John Deere 3025D?: The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 23.9 hp hp for the John Deere 1025R.
Which has more PTO horsepower, the John Deere 1025R or the John Deere 3025D?: The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 18 hp hp for the John Deere 1025R.
Which is heavier, the John Deere 1025R or the John Deere 3025D?: The John Deere 3025D leads on weight at 2,987 lb lb, compared to 1,444 lb lb for the John Deere 1025R.
Which has more loader lift capacity, the John Deere 1025R or the John Deere 3025D?: The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 836 lb lb for the John Deere 1025R.
Which has more three-point hitch lift capacity, the John Deere 1025R or the John Deere 3025D?: The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 758 lb lb for the John Deere 1025R.

More Head-to-Heads

Category Verdict

Spec	John Deere 1025R	John Deere 3025D
Engine HP (hp)	23.9 hp	▲ 24.4 hp
PTO HP (hp)	18 hp	▲ 20.7 hp
Weight (lb)	1,444 lb	▲ 2,987 lb
Loader Lift (lb)	836 lb	▲ 1,186 lb
3-Pt Lift (24 in) (lb)	758 lb	▲ 2,081.2 lb
Lift Height (in)	72 in	▲ 84 in
Breakout Force (lbf)	▲ 2,008 lbf	1,704 lbf
Hydraulic Flow (gpm)	7 gpm	▲ 8.9 gpm
Travel Speed (mph)	9.1 mph	▲ 11.1 mph

The headline numbers at a glance.

John Deere 1025RJohn Deere 3025D

Engine HPhp

23.9 hp

▲24.4 hp

PTO HPhp

18 hp

▲20.7 hp

Weightlb

1,444 lb

▲2,987 lb

Loader Liftlb

752 lb

548 lb

825 lb

836 lb

▲1,186 lb

120R NSL120R MSLD120H120

3-Pt Lift (24 in)lb

758 lb

▲2,081.2 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	John Deere3025D


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-CJT	3TNV88F-EPJT
Engine Type	3-cylinder, liquid-cooled diesel	4-cycle, inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	77.3 in³	100.1 in³
Rated Engine Speed	3200 rpm	2400 rpm
Engine Power (Gross)	23.9 hp	24.4 hp
PTO Power	18 hp	20.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid
Air Cleaner	Dry with safety element	Dual element
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	55 A, 12 V

Pump Type	Gear	Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow	3.5 gpm	4.8 gpm
Steering Flow	3.5 gpm	3.6 gpm
Total Hydraulic Flow	7 gpm	Not Published
Overall Hydraulic Pump Flow	7 gpm	8.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Three	Up to two (optional)

Fuel Tank Capacity	5.6 gal	10.0 gal
Coolant Capacity	3.9 qt	1.2 gal
Crankcase Capacity	2.9 qt	1.1 gal
Transmission / Hydraulic System Capacity	3.25 gal	9.2 gal
Front Axle Fluid Capacity	3.0 qt	1.0 gal

PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm at 2400 rpm engine (rated)
Mid-PTO Availability	Standard, 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category 1	Category 1
Hitch Lift Capacity	1177 lb	Not Published
Hitch Lift Capacity (at 24”)	758 lb	2,081.2 lb @ 24 in behind link arms
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic - 2 range	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	8F/8R
Max Travel Speed (Forward)	9.1 mph	11.1 mph
Max Travel Speed (Reverse)	9.1 mph	11.6 mph
Clutch	wet disc	Not Published
Differential Lock & Limited Slip Options	Standard rear differential lock	Not Published

Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Not Published
Steering	Power steering	Power steering
Brakes	Wet disk, left-hand pedal	Not Published
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Not Published
Front Axle Type	Four-wheel drive (mechanical front-wheel drive, on-the-go engagement)	MFWD (4WD)
Front Axle Rating	1349 lb	Not Published
Drawbar Capacity	2165 lb	1102 lb

Overall Length with 3-Point Hitch	108 in	111.2 in
Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	57.3 in
Wheelbase	57.1 in	62.6 in
Ground Clearance	9.0 in under the front axle (operator's manual); 7.7 in (Deere website)	13.0 in
Min. Turn Radius without Brakes	88.8 in	6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS	90 in	Not Published
Height to Top of ROPS (folded)	73 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1444 lb	2987 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard R4, optional R3	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	18x8.5-10	27X8.50-15
R3 Turf - Rear	26x12-12	41X14-20
R4 Industrial - Front	18x8.5-10	25X8.50-14
R4 Industrial - Rear	26x12-12	15.00-19.5

Quick Attach Loader System	Quik-Park (MSL option on 120R)	Quick-change attachment carrier
Loader Model	120R (NSL or MSL) or 120E (D120 and H120 on earlier units)	D160
Loader Lift Height	120R (NSL and MSL): 72 in; 120E: 71.2 in; D120 and H120: 71.2 in	84.0 in
Loader Lift Capacity (Full Height)	120R NSL: 752 lb (49 in bucket) or 704 lb (53 in bucket); 120R MSL: 548 lb (53 in bucket); D120: 825 lb; H120: 836 lb (all at pivot pin, max height)	1,186 lb
Loader Breakout Force	120R NSL: 2008 lbf (49 in bucket) or 1816 lbf (53 in bucket); 120R MSL: 1591 lbf; D120: 1808 lbf; H120: 1819 lbf (at pivot pin)	1,704 lb

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Find a John Deere dealer near you

John Deere 1025R vs John Deere 3025D: Quick Answers

Which has more horsepower, the John Deere 1025R or the John Deere 3025D?

The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 23.9 hp hp for the John Deere 1025R.

Which has more PTO horsepower, the John Deere 1025R or the John Deere 3025D?

The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 18 hp hp for the John Deere 1025R.

Which is heavier, the John Deere 1025R or the John Deere 3025D?

The John Deere 3025D leads on weight at 2,987 lb lb, compared to 1,444 lb lb for the John Deere 1025R.

Which has more loader lift capacity, the John Deere 1025R or the John Deere 3025D?

The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 836 lb lb for the John Deere 1025R.

Which has more three-point hitch lift capacity, the John Deere 1025R or the John Deere 3025D?

The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 758 lb lb for the John Deere 1025R.
