John Deere 1R 25 vs John Deere 3025D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the John Deere 3025D leads 7 categories to 2. Machine pages: John Deere 1R 25 and John Deere 3025D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1R 25	John Deere 3025D
Engine HP (hp)	23.2 hp	▲ 24.4 hp
PTO HP (hp)	17.8 hp	▲ 20.7 hp
Weight (lb)	1,797 lb	▲ 2,987 lb
Loader Lift (lb)	803 lb	▲ 1,186 lb
3-Pt Lift (24 in) (lb)	915 lb	▲ 2,081.2 lb
Lift Height (in)	72 in	▲ 84 in
Breakout Force (lbf)	▲ 1,823 lbf	1,704 lbf
Hydraulic Flow (gpm)	7 gpm	▲ 8.9 gpm
Travel Speed (mph)	▲ 12.3 mph	11.1 mph

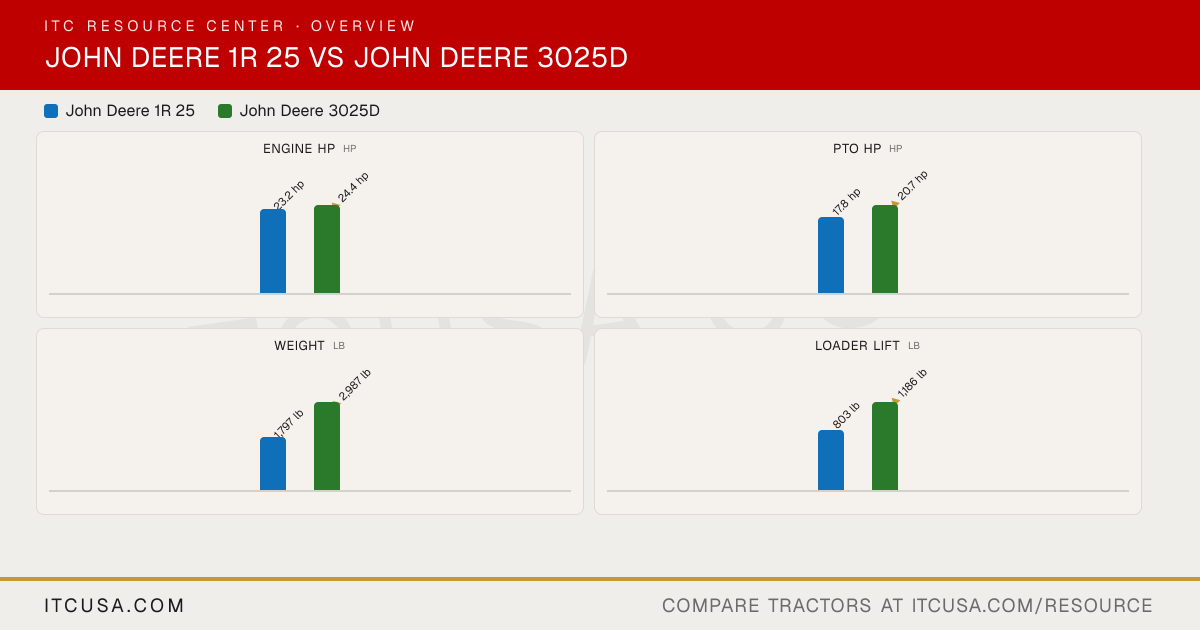

The headline numbers at a glance.

John Deere 1R 25John Deere 3025D

Engine HPhp

23.2 hp

▲24.4 hp

PTO HPhp

17.8 hp

▲20.7 hp

Weightlb

1,797 lb

▲2,987 lb

Loader Liftlb

803 lb

▲1,186 lb

3-Pt Lift (24 in)lb

915 lb

▲2,081.2 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1R 25	John Deere3025D


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-NCJT	3TNV88F-EPJT
Engine Type	Diesel	4-cycle, inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	77.3 in³	100.1 in³
Rated Engine Speed	3200 rpm	2400 rpm
Engine Power (Gross)	23.2 hp	24.4 hp
PTO Power	17.8 hp	20.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid
Air Cleaner	Not Published	Dual element
Fuel System	Not Published	Direct injection
Alternator	Not Published	55 A, 12 V

Pump Type	Gear	Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow	3.5 gpm	4.8 gpm
Steering Flow	3.5 gpm	3.6 gpm
Total Hydraulic Flow	7 gpm	Not Published
Overall Hydraulic Pump Flow	7 gpm	8.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Up to two (optional)

Fuel Tank Capacity	5.31 gal	10.0 gal
Coolant Capacity	Not Published	1.2 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	9.2 gal
Front Axle Fluid Capacity	Not Published	1.0 gal

PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm at 2400 rpm engine (rated)
Mid-PTO Availability	Standard, 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	915 lb	2,081.2 lb @ 24 in behind link arms
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic - 2 range	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	8F/8R
Max Travel Speed (Forward)	12.3 mph	11.1 mph
Max Travel Speed (Reverse)	12.3 mph	11.6 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Foldable ROPS, standard equipment	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc, left-hand pedal	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat with high back and adjustable settings; tilt steering	Not Published
Front Axle Type	Four-wheel drive	MFWD (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1102 lb

Overall Length with 3-Point Hitch	Not Published	111.2 in
Overall Width	47.22 in (R3 tires); 48.03 in (R4 tires)	57.3 in
Wheelbase	63 in	62.6 in
Ground Clearance	Not Published	13.0 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Approx. 1,797 lb open station; 2,242 lb cab (shipping weight)	2987 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R3 Hybrid, or R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	23x8.50-12	27X8.50-15
R3 Turf - Rear	12-16.5	41X14-20
R4 Industrial - Front	23x8.50-12	25X8.50-14
R4 Industrial - Rear	12-16.5	15.00-19.5

Quick Attach Loader System	Quik-Park	Quick-change attachment carrier
Loader Model	120R	D160
Loader Lift Height	120R: 72 in	84.0 in
Loader Lift Capacity (Full Height)	120R (NSL): 803 lb	1,186 lb
Loader Breakout Force	1823 lbf (at pivot pin)	1,704 lb

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Find a John Deere dealer near you

John Deere 1R 25 vs John Deere 3025D: Quick Answers

Which has more horsepower, the John Deere 1R 25 or the John Deere 3025D?: The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 23.2 hp hp for the John Deere 1R 25.
Which has more PTO horsepower, the John Deere 1R 25 or the John Deere 3025D?: The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 17.8 hp hp for the John Deere 1R 25.
Which is heavier, the John Deere 1R 25 or the John Deere 3025D?: The John Deere 3025D leads on weight at 2,987 lb lb, compared to 1,797 lb lb for the John Deere 1R 25.
Which has more loader lift capacity, the John Deere 1R 25 or the John Deere 3025D?: The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 803 lb lb for the John Deere 1R 25.
Which has more three-point hitch lift capacity, the John Deere 1R 25 or the John Deere 3025D?: The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 915 lb lb for the John Deere 1R 25.

More Head-to-Heads

Category Verdict

Spec	John Deere 1R 25	John Deere 3025D
Engine HP (hp)	23.2 hp	▲ 24.4 hp
PTO HP (hp)	17.8 hp	▲ 20.7 hp
Weight (lb)	1,797 lb	▲ 2,987 lb
Loader Lift (lb)	803 lb	▲ 1,186 lb
3-Pt Lift (24 in) (lb)	915 lb	▲ 2,081.2 lb
Lift Height (in)	72 in	▲ 84 in
Breakout Force (lbf)	▲ 1,823 lbf	1,704 lbf
Hydraulic Flow (gpm)	7 gpm	▲ 8.9 gpm
Travel Speed (mph)	▲ 12.3 mph	11.1 mph

The headline numbers at a glance.

John Deere 1R 25John Deere 3025D

Engine HPhp

23.2 hp

▲24.4 hp

PTO HPhp

17.8 hp

▲20.7 hp

Weightlb

1,797 lb

▲2,987 lb

Loader Liftlb

803 lb

▲1,186 lb

3-Pt Lift (24 in)lb

915 lb

▲2,081.2 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1R 25	John Deere3025D


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F-NCJT	3TNV88F-EPJT
Engine Type	Diesel	4-cycle, inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	77.3 in³	100.1 in³
Rated Engine Speed	3200 rpm	2400 rpm
Engine Power (Gross)	23.2 hp	24.4 hp
PTO Power	17.8 hp	20.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid
Air Cleaner	Not Published	Dual element
Fuel System	Not Published	Direct injection
Alternator	Not Published	55 A, 12 V

Pump Type	Gear	Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow	3.5 gpm	4.8 gpm
Steering Flow	3.5 gpm	3.6 gpm
Total Hydraulic Flow	7 gpm	Not Published
Overall Hydraulic Pump Flow	7 gpm	8.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Up to two (optional)

Fuel Tank Capacity	5.31 gal	10.0 gal
Coolant Capacity	Not Published	1.2 gal
Crankcase Capacity	Not Published	1.1 gal
Transmission / Hydraulic System Capacity	Not Published	9.2 gal
Front Axle Fluid Capacity	Not Published	1.0 gal

PTO Type	Independent	Not Published
PTO Rear	540 rpm	540 rpm at 2400 rpm engine (rated)
Mid-PTO Availability	Standard, 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	915 lb	2,081.2 lb @ 24 in behind link arms
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic - 2 range	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	8F/8R
Max Travel Speed (Forward)	12.3 mph	11.1 mph
Max Travel Speed (Reverse)	12.3 mph	11.6 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Foldable ROPS, standard equipment	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc, left-hand pedal	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat with high back and adjustable settings; tilt steering	Not Published
Front Axle Type	Four-wheel drive	MFWD (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1102 lb

Overall Length with 3-Point Hitch	Not Published	111.2 in
Overall Width	47.22 in (R3 tires); 48.03 in (R4 tires)	57.3 in
Wheelbase	63 in	62.6 in
Ground Clearance	Not Published	13.0 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Approx. 1,797 lb open station; 2,242 lb cab (shipping weight)	2987 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R3 Hybrid, or R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	7-14
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	23x8.50-12	27X8.50-15
R3 Turf - Rear	12-16.5	41X14-20
R4 Industrial - Front	23x8.50-12	25X8.50-14
R4 Industrial - Rear	12-16.5	15.00-19.5

Quick Attach Loader System	Quik-Park	Quick-change attachment carrier
Loader Model	120R	D160
Loader Lift Height	120R: 72 in	84.0 in
Loader Lift Capacity (Full Height)	120R (NSL): 803 lb	1,186 lb
Loader Breakout Force	1823 lbf (at pivot pin)	1,704 lb

Warranty Length & Coverage	6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Find a John Deere dealer near you

John Deere 1R 25 vs John Deere 3025D: Quick Answers

Which has more horsepower, the John Deere 1R 25 or the John Deere 3025D?

The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 23.2 hp hp for the John Deere 1R 25.

Which has more PTO horsepower, the John Deere 1R 25 or the John Deere 3025D?

The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 17.8 hp hp for the John Deere 1R 25.

Which is heavier, the John Deere 1R 25 or the John Deere 3025D?

The John Deere 3025D leads on weight at 2,987 lb lb, compared to 1,797 lb lb for the John Deere 1R 25.

Which has more loader lift capacity, the John Deere 1R 25 or the John Deere 3025D?

The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 803 lb lb for the John Deere 1R 25.

Which has more three-point hitch lift capacity, the John Deere 1R 25 or the John Deere 3025D?

The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 915 lb lb for the John Deere 1R 25.
