John Deere 3025D vs John Deere 3025E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 3025D leads 3 categories to 1 (4 tied). Machine pages: John Deere 3025D and John Deere 3025E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3025D	John Deere 3025E
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 20.7 hp	17.4 hp
Weight (lb)	▲ 2,987 lb	2,266 lb
Loader Lift (lb)	1,186 lb	1,186 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,356 lb
Lift Height (in)	84 in	84 in
Breakout Force (lbf)	1,704 lbf	1,704 lbf
Hydraulic Flow (gpm)	8.9 gpm	▲ 9.3 gpm
Travel Speed (mph)	11.1 mph	n/a

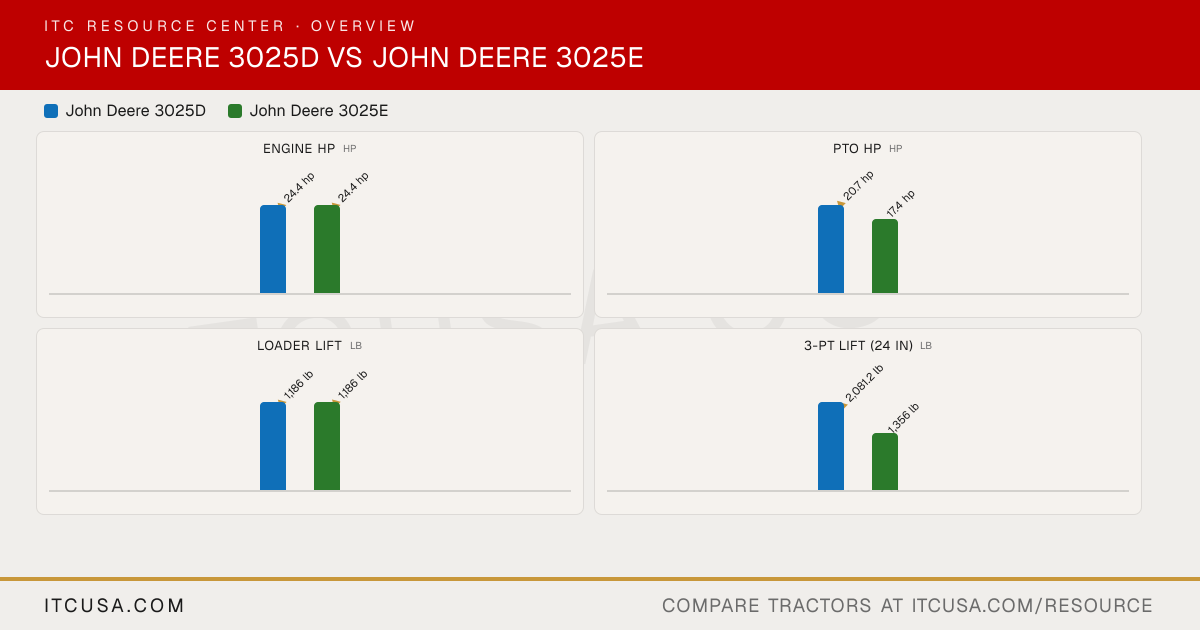

The headline numbers at a glance.

John Deere 3025DJohn Deere 3025E

Engine HPhp

▲24.4 hp

PTO HPhp

▲20.7 hp

17.4 hp

Weightlb

▲2,987 lb

2,266 lb

Loader Liftlb

▲1,186 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,356 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025D	John Deere3025E


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV88F-EPJT	3TNV88F-EPJT2
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	Diesel, naturally aspirated, direct injection
No. of Cylinders	3	3
Displacement	100.1 in³	95.7 in³
Rated Engine Speed	2400 rpm	2400 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	20.7 hp	17.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Water pump
Air Cleaner	Dual element	Dry type with safety element
Fuel System	Direct injection	Direct injection
Alternator	55 A, 12 V	55 A, 12 V

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston
Implement Flow	4.8 gpm	5.3 gpm
Steering Flow	3.6 gpm	4.0 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	8.9 gpm	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Up to 2 (optional)

Fuel Tank Capacity	10.0 gal	7.5 gal
Coolant Capacity	1.2 gal	1.3 gal
Crankcase Capacity	1.1 gal	4.5 qt
Transmission / Hydraulic System Capacity	9.2 gal	5.5 gal
Front Axle Fluid Capacity	1.0 gal	1.0 gal

PTO Type	Not Published	Not Published
PTO Rear	540 rpm at 2400 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,356 lb @ 24 in behind link arms
Hitch Lift Capacity (at 24”)	2,081.2 lb @ 24 in behind link arms	1356 lb
Lift Control Type	Position control	Not Published

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Hydrostatic transmission (HST)
No. of Speeds	8F/8R	Not Published
Max Travel Speed (Forward)	11.1 mph	Not Published
Max Travel Speed (Reverse)	11.6 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Open operator station (OOS)
Steering	Power steering	Hydrostatic
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	4WD (MFWD)
Front Axle Rating	Not Published	1760 lb
Drawbar Capacity	1102 lb	880 lb

Overall Length with 3-Point Hitch	111.2 in	115.9 in
Overall Width	57.3 in	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
Wheelbase	62.6 in	62.8 in
Ground Clearance	13.0 in	12.7 in (R4 tires)
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	9.4 ft (2.9 m)
Height to Top of ROPS	Not Published	95.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2987 lb	2266 lb
Weight with ROPS and Loader	Not Published	2972 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	27X8.50-15
R3 Turf - Rear	41X14-20	41X14-20
R4 Industrial - Front	25X8.50-14	25X8.50-14 or 27X8.50-15
R4 Industrial - Rear	15.00-19.5	15.00-19.5 or 43X16-20

Quick Attach Loader System	Quick-change attachment carrier	Quick-change attachment carrier
Loader Model	D160	D160
Loader Lift Height	84.0 in	84 in
Loader Lift Capacity (Full Height)	1,186 lb	1,186 lb
Loader Breakout Force	1,704 lb	1,704 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Find a John Deere dealer near you

John Deere 3025D vs John Deere 3025E: Quick Answers

Which has more horsepower, the John Deere 3025D or the John Deere 3025E?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the John Deere 3025D or the John Deere 3025E?: The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 17.4 hp hp for the John Deere 3025E.
Which is heavier, the John Deere 3025D or the John Deere 3025E?: The John Deere 3025D leads on weight at 2,987 lb lb, compared to 2,266 lb lb for the John Deere 3025E.
Which has more loader lift capacity, the John Deere 3025D or the John Deere 3025E?: They are effectively tied: both machines are rated at 1,186 lb lb for loader lift.
Which has more three-point hitch lift capacity, the John Deere 3025D or the John Deere 3025E?: The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,356 lb lb for the John Deere 3025E.

More Head-to-Heads

Category Verdict

Spec	John Deere 3025D	John Deere 3025E
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 20.7 hp	17.4 hp
Weight (lb)	▲ 2,987 lb	2,266 lb
Loader Lift (lb)	1,186 lb	1,186 lb
3-Pt Lift (24 in) (lb)	▲ 2,081.2 lb	1,356 lb
Lift Height (in)	84 in	84 in
Breakout Force (lbf)	1,704 lbf	1,704 lbf
Hydraulic Flow (gpm)	8.9 gpm	▲ 9.3 gpm
Travel Speed (mph)	11.1 mph	n/a

The headline numbers at a glance.

John Deere 3025DJohn Deere 3025E

Engine HPhp

▲24.4 hp

PTO HPhp

▲20.7 hp

17.4 hp

Weightlb

▲2,987 lb

2,266 lb

Loader Liftlb

▲1,186 lb

3-Pt Lift (24 in)lb

▲2,081.2 lb

1,356 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025D	John Deere3025E


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV88F-EPJT	3TNV88F-EPJT2
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	Diesel, naturally aspirated, direct injection
No. of Cylinders	3	3
Displacement	100.1 in³	95.7 in³
Rated Engine Speed	2400 rpm	2400 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	20.7 hp	17.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid	Water pump
Air Cleaner	Dual element	Dry type with safety element
Fuel System	Direct injection	Direct injection
Alternator	55 A, 12 V	55 A, 12 V

Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston
Implement Flow	4.8 gpm	5.3 gpm
Steering Flow	3.6 gpm	4.0 gpm
Total Hydraulic Flow	Not Published	9.3 gpm
Overall Hydraulic Pump Flow	8.9 gpm	9.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Up to 2 (optional)

Fuel Tank Capacity	10.0 gal	7.5 gal
Coolant Capacity	1.2 gal	1.3 gal
Crankcase Capacity	1.1 gal	4.5 qt
Transmission / Hydraulic System Capacity	9.2 gal	5.5 gal
Front Axle Fluid Capacity	1.0 gal	1.0 gal

PTO Type	Not Published	Not Published
PTO Rear	540 rpm at 2400 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,356 lb @ 24 in behind link arms
Hitch Lift Capacity (at 24”)	2,081.2 lb @ 24 in behind link arms	1356 lb
Lift Control Type	Position control	Not Published

Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Hydrostatic transmission (HST)
No. of Speeds	8F/8R	Not Published
Max Travel Speed (Forward)	11.1 mph	Not Published
Max Travel Speed (Reverse)	11.6 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Open operator station (OOS)
Steering	Power steering	Hydrostatic
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	MFWD (4WD)	4WD (MFWD)
Front Axle Rating	Not Published	1760 lb
Drawbar Capacity	1102 lb	880 lb

Overall Length with 3-Point Hitch	111.2 in	115.9 in
Overall Width	57.3 in	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
Wheelbase	62.6 in	62.8 in
Ground Clearance	13.0 in	12.7 in (R4 tires)
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	9.4 ft (2.9 m)
Height to Top of ROPS	Not Published	95.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2987 lb	2266 lb
Weight with ROPS and Loader	Not Published	2972 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	27X8.50-15
R3 Turf - Rear	41X14-20	41X14-20
R4 Industrial - Front	25X8.50-14	25X8.50-14 or 27X8.50-15
R4 Industrial - Rear	15.00-19.5	15.00-19.5 or 43X16-20

Quick Attach Loader System	Quick-change attachment carrier	Quick-change attachment carrier
Loader Model	D160	D160
Loader Lift Height	84.0 in	84 in
Loader Lift Capacity (Full Height)	1,186 lb	1,186 lb
Loader Breakout Force	1,704 lb	1,704 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Find a John Deere dealer near you

John Deere 3025D vs John Deere 3025E: Quick Answers

Which has more horsepower, the John Deere 3025D or the John Deere 3025E?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 3025D or the John Deere 3025E?

The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 17.4 hp hp for the John Deere 3025E.

Which is heavier, the John Deere 3025D or the John Deere 3025E?

The John Deere 3025D leads on weight at 2,987 lb lb, compared to 2,266 lb lb for the John Deere 3025E.

Which has more loader lift capacity, the John Deere 3025D or the John Deere 3025E?

They are effectively tied: both machines are rated at 1,186 lb lb for loader lift.

Which has more three-point hitch lift capacity, the John Deere 3025D or the John Deere 3025E?

The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,356 lb lb for the John Deere 3025E.
