Across 9 measurable specs, the John Deere 3025D leads 7 categories to 2. Machine pages: John Deere 3025D and Kubota B2601HSD .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec John Deere 3025D Kubota B2601HSD Engine HP (hp) ▲ 24.4 hp24.3 hp PTO HP (hp) ▲ 20.7 hp19.5 hp Weight (lb) ▲ 2,987 lb1,632 lb Loader Lift (lb) ▲ 1,186 lb948 lb 3-Pt Lift (24 in) (lb) ▲ 2,081.2 lb1,411 lb Lift Height (in) ▲ 84 in78.5 in Breakout Force (lbf) 1,704 lbf ▲ 2,146 lbfHydraulic Flow (gpm) ▲ 8.9 gpm8.3 gpm Travel Speed (mph) 11.1 mph ▲ 12.7 mph
Overview Loader Work PTO Work

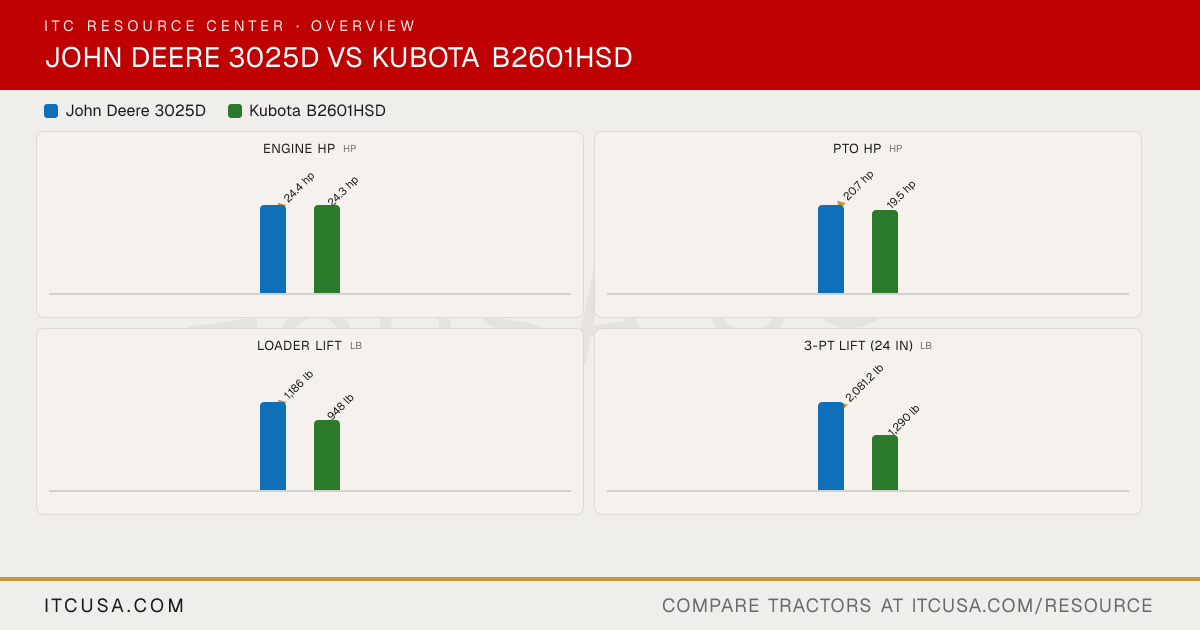

The headline numbers at a glance.
John Deere 3025D Kubota B2601HSD
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec John Deere 3025D Kubota B2601HSD
▶ EngineEngine Manufacturer Yanmar Kubota Engine Model 3TNV88F-EPJT D1105 Engine Type 4-cycle, inline, water-cooled diesel, naturally aspirated E-TVCS, liquid cooled, 3-cylinder diesel No. of Cylinders 3 3 Displacement 100.1 in³ 68.5 in³ Rated Engine Speed 2400 rpm 2800 rpm Engine Power (Gross) 24.4 hp 24.3 hp PTO Power 20.7 hp 19.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid Pressurized radiator Air Cleaner Dual element Dual paper element Fuel System Direct injection diesel Alternator 55 A, 12 V Not Published ▶ HydraulicsPump Type Two single-section external gear pumps, one each side of engine timing-gear cover Dual pump Implement Flow 4.8 gpm Not Published Steering Flow 3.6 gpm Not Published Total Hydraulic Flow Not Published 8.3 gpm Overall Hydraulic Pump Flow 8.9 gpm 8.3 gpm Hydraulic System Type Open center open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to two (optional) 2 ▶ Fluid CapacityFuel Tank Capacity 10.0 gal 6.1 gal Coolant Capacity 1.2 gal 4.0 qt Crankcase Capacity 1.1 gal 3.3 qt Transmission / Hydraulic System Capacity 9.2 gal 4.0 gal Front Axle Fluid Capacity 1.0 gal 3.7 qt ▶ PTO & HitchPTO Type Not Published Independent PTO Rear 540 rpm at 2400 rpm engine (rated) 540 rpm Mid-PTO Availability Not Published independent, 2500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity Not Published 1808 lb Hitch Lift Capacity (at 24”) 2,081.2 lb @ 24 in behind link arms 1411 lb Lift Control Type Position control position control ▶ Transmission & DrivetrainTransmission Type 8F/8R synchromesh shuttle shift gear transmission HST (3 ranges) No. of Speeds 8F/8R 3 ranges (HST) Max Travel Speed (Forward) 11.1 mph 12.7 mph Max Travel Speed (Reverse) 11.6 mph 9.5 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Not Published Wet disc brakes Seat Suspension & Adjustability Not Published High-back suspension seat with standard arm rests; tilt steering (HST models) Front Axle Type MFWD (4WD) Four-wheel drive Front Axle Rating Not Published Not Published Drawbar Capacity 1102 lb 660 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 111.2 in 94.9 in (without 3-point hitch) Overall Width 57.3 in 49 in Wheelbase 62.6 in 61.4 in Ground Clearance 13.0 in 12.8 in Min. Turn Radius without Brakes 6.9 ft (with brakes) (with brake applied) 6.9 ft (with brake applied) Height to Top of ROPS Not Published 85.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2987 lb 1632 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial Farm (R1): 7-12 front, 11.2-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear R1 Agricultural - Front 7-14 7-12 R1 Agricultural - Rear 11.2-24 11.2-16 R3 Turf - Front 27X8.50-15 23x8.50-12 R3 Turf - Rear 41X14-20 33x12.5-15 R4 Industrial - Front 25X8.50-14 23x8.50-12 R4 Industrial - Rear 15.00-19.5 12-16.5 ▶ Loader & AttachmentsQuick Attach Loader System Quick-change attachment carrier LA435 Swift-Tach Loader (1-lever Quick Coupler) Loader Model D160 LA435 Loader Lift Height 84.0 in 78.5 in Loader Lift Capacity (Full Height) 1,186 lb 948 lb Loader Breakout Force 1,704 lb 2146 lb ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
John Deere 3025D vs Kubota B2601HSD: Quick Answers
Which has more horsepower, the John Deere 3025D or the Kubota B2601HSD? The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 24.3 hp hp for the Kubota B2601HSD.
Which has more PTO horsepower, the John Deere 3025D or the Kubota B2601HSD? The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 19.5 hp hp for the Kubota B2601HSD.
Which is heavier, the John Deere 3025D or the Kubota B2601HSD? The John Deere 3025D leads on weight at 2,987 lb lb, compared to 1,632 lb lb for the Kubota B2601HSD.
Which has more loader lift capacity, the John Deere 3025D or the Kubota B2601HSD? The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 948 lb lb for the Kubota B2601HSD.
Which has more three-point hitch lift capacity, the John Deere 3025D or the Kubota B2601HSD? The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,411 lb lb for the Kubota B2601HSD. More Head-to-Heads
