Across 9 measurable specs, the John Deere 3025D leads 6 categories to 2 (1 tied). Machine pages: John Deere 3025D and New Holland Boomer 24.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 3025D | New Holland Boomer 24 |
|---|
| Engine HP (hp) | 24.4 hp | 24.4 hp |
| PTO HP (hp) | ▲ 20.7 hp | 18.5 hp |
| Weight (lb) | ▲ 2,987 lb | 1,832 lb |
| Loader Lift (lb) | ▲ 1,186 lb | 1,034 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,081.2 lb | 1,058 lb |
| Lift Height (in) | ▲ 84 in | 80.7 in |
| Breakout Force (lbf) | ▲ 1,704 lbf | 1,672 lbf |
| Hydraulic Flow (gpm) | 8.9 gpm | ▲ 9.6 gpm |
| Travel Speed (mph) | 11.1 mph | ▲ 11.3 mph |

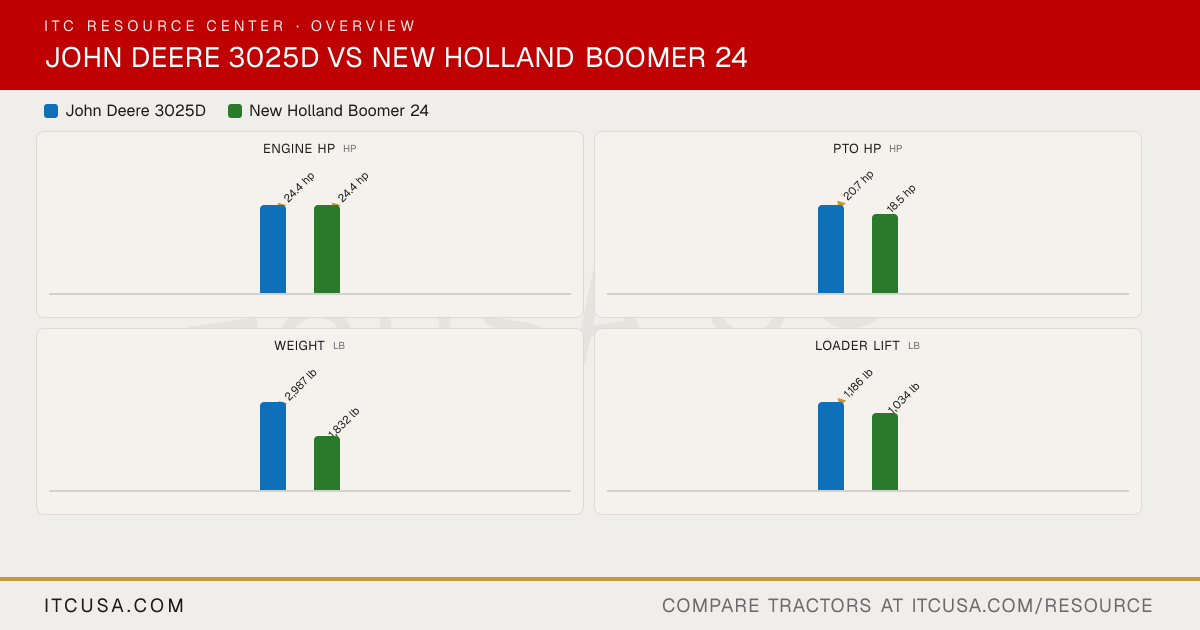

The headline numbers at a glance.
John Deere 3025DNew Holland Boomer 24
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3025D | New HollandBoomer 24 |
|---|
|
|---|
| Engine Manufacturer | Yanmar | Mitsubishi |
|---|
| Engine Model | 3TNV88F-EPJT | S3L2 |
|---|
| Engine Type | 4-cycle, inline, water-cooled diesel, naturally aspirated | 3-cylinder diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 100.1 in³ | 80.4 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2700 rpm |
|---|
| Engine Power (Gross) | 24.4 hp | 24.4 hp |
|---|
| PTO Power | 20.7 hp | 18.5 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid | Liquid-cooled |
|---|
| Air Cleaner | Dual element | Single replaceable dry element |
|---|
| Fuel System | Direct injection | Not Published |
|---|
| Alternator | 55 A, 12 V | 50 A |
|---|
|
|---|
| Pump Type | Two single-section external gear pumps, one each side of engine timing-gear cover | Not Published |
|---|
| Implement Flow | 4.8 gpm | 6.7 gpm |
|---|
| Steering Flow | 3.6 gpm | 2.9 gpm |
|---|
| Total Hydraulic Flow | Not Published | 9.6 gpm (6.7 + 2.9, computed) |
|---|
| Overall Hydraulic Pump Flow | 8.9 gpm | 9.6 gpm (6.7 + 2.9, computed) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Up to two (optional) | 1 (DIA, optional) |
|---|
|
|---|
| Fuel Tank Capacity | 10.0 gal | 6.6 gal |
|---|
| Coolant Capacity | 1.2 gal | Not Published |
|---|
| Crankcase Capacity | 1.1 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 9.2 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.0 gal | Not Published |
|---|
|
|---|
| PTO Type | Not Published | Independent, electro-hydraulic engagement |
|---|
| PTO Rear | 540 rpm at 2400 rpm engine (rated) | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Standard, 2000 rpm |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | Not Published | 1,433 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,081.2 lb @ 24 in behind link arms | 1,058 lb |
|---|
| Lift Control Type | Position control | Chain-type stabilizers, fixed link ends |
|---|
|
|---|
| Transmission Type | 8F/8R synchromesh shuttle shift gear transmission | 2-range hydrostatic (HST), dual pedal |
|---|
| No. of Speeds | 8F/8R | HST, 2 ranges |
|---|
| Max Travel Speed (Forward) | 11.1 mph | 11.3 mph (HST, R4 tires) |
|---|
| Max Travel Speed (Reverse) | 11.6 mph | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Mechanical rear differential lock (foot pedal) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Hydrostatic power steering |
|---|
| Brakes | Not Published | Mechanical wet multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | MFWD (4WD) | Four-wheel drive (standard) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 1102 lb | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 111.2 in | 103.6 in |
|---|
| Overall Width | 57.3 in | 49.1 in |
|---|
| Wheelbase | 62.6 in | 59 in |
|---|
| Ground Clearance | 13.0 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 6.9 ft (with brakes) (with brake applied) | Not Published |
|---|
| Height to Top of ROPS | Not Published | 85.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2987 lb | 1,832 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Bar, R3 Turf, R4 Industrial | R3 turf tread or R4 industrial tread |
|---|
| R1 Agricultural - Front | 7-14 | Not Published |
|---|
| R1 Agricultural - Rear | 11.2-24 | Not Published |
|---|
| R3 Turf - Front | 27X8.50-15 | 23x8.50-12 |
|---|
| R3 Turf - Rear | 41X14-20 | 33x12-16.5 |
|---|
| R4 Industrial - Front | 25X8.50-14 | 23x8.50-12 |
|---|
| R4 Industrial - Rear | 15.00-19.5 | 12-16.5 |
|---|
|
|---|
| Quick Attach Loader System | Quick-change attachment carrier | Not Published |
|---|
| Loader Model | D160 | 235TL |
|---|
| Loader Lift Height | 84.0 in | 235TL: 80.7 in |
|---|
| Loader Lift Capacity (Full Height) | 1,186 lb | 235TL: 1,034 lb |
|---|
| Loader Breakout Force | 1,704 lb | 235TL: 1,672 lb |
|---|
|
|---|
| Warranty Length & Coverage | 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) | Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain) |
|---|
John Deere 3025D vs New Holland Boomer 24: Quick Answers
- Which has more horsepower, the John Deere 3025D or the New Holland Boomer 24?
- They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
- Which has more PTO horsepower, the John Deere 3025D or the New Holland Boomer 24?
- The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 18.5 hp hp for the New Holland Boomer 24.
- Which is heavier, the John Deere 3025D or the New Holland Boomer 24?
- The John Deere 3025D leads on weight at 2,987 lb lb, compared to 1,832 lb lb for the New Holland Boomer 24.
- Which has more loader lift capacity, the John Deere 3025D or the New Holland Boomer 24?
- The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.
- Which has more three-point hitch lift capacity, the John Deere 3025D or the New Holland Boomer 24?
- The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,058 lb lb for the New Holland Boomer 24.
