Across 8 measurable specs, the Massey Ferguson MF 1M.35 leads 6 categories to 2. Machine pages: John Deere 3038E and Massey Ferguson MF 1M.35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 3038E | Massey Ferguson MF 1M.35 |
|---|
| Engine HP (hp) | ▲ 36.7 hp | 36.2 hp |
| PTO HP (hp) | ▲ 30 hp | 27.5 hp |
| Weight (lb) | 2,266 lb | ▲ 3,858 lb |
| Loader Lift (lb) | 1,186 lb | ▲ 1,870 lb |
| 3-Pt Lift (24 in) (lb) | 1,356 lb | ▲ 2,535 lb |
| Lift Height (in) | 84 in | ▲ 100 in |
| Breakout Force (lbf) | 1,704 lbf | ▲ 2,950 lbf |
| Hydraulic Flow (gpm) | 9.3 gpm | ▲ 19.6 gpm |

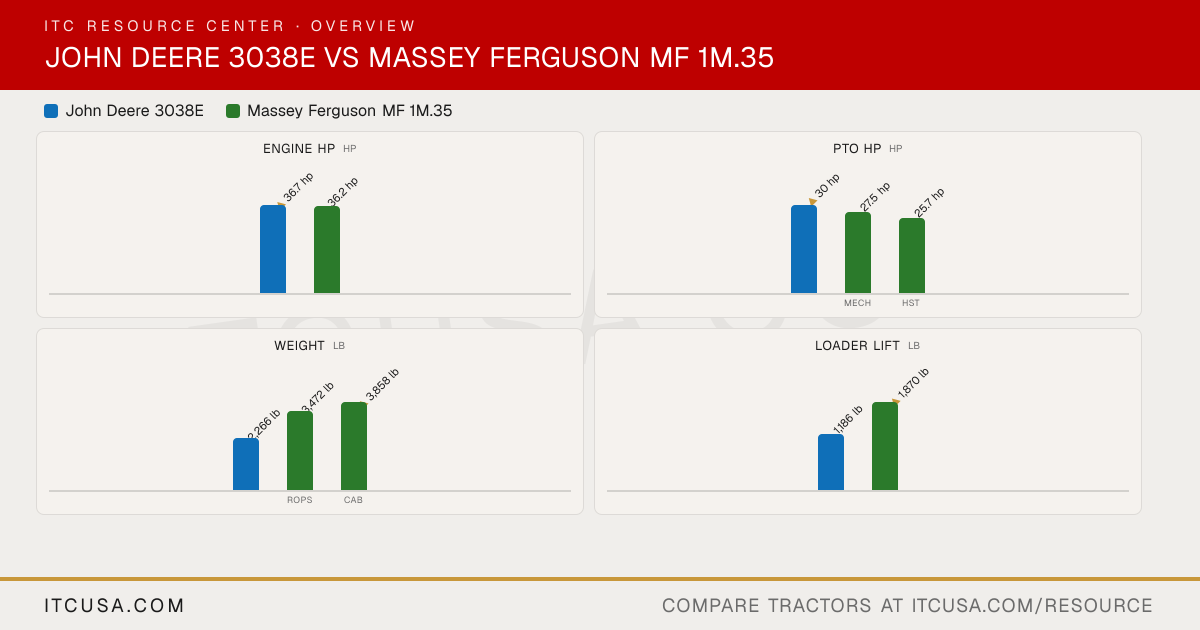

The headline numbers at a glance.
John Deere 3038EMassey Ferguson MF 1M.35
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
2,266 lb
3,472 lb
▲3,858 lb
ROPSCab
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3038E | Massey FergusonMF 1M.35 |
|---|
|
|---|
| Engine Manufacturer | Yanmar | Iseki |
|---|
| Engine Model | 3TNV86CT-NJT2 | Not Published |
|---|
| Engine Type | Diesel | 3-cylinder, turbocharged, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 95.7 in³ | 111.4 in³ |
|---|
| Rated Engine Speed | 2500 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 36.7 hp | 36.2 hp |
|---|
| PTO Power | 30 hp | Mech: 27.5 hp; HST: 25.7 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Water pump | Liquid cooled |
|---|
| Air Cleaner | Dry type with safety element | Not Published |
|---|
| Fuel System | High pressure common rail direct injection | Not Published |
|---|
| Alternator | 55 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston | Two gear-type pumps |
|---|
| Implement Flow | 5.3 gpm | 12.6 gpm |
|---|
| Steering Flow | 4.0 gpm | 7.0 gpm |
|---|
| Total Hydraulic Flow | 9.3 gpm | 19.6 gpm (12.6 + 7.0, computed) |
|---|
| Overall Hydraulic Pump Flow | 9.3 gpm | 19.6 gpm (12.6 + 7.0, computed) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Up to 2 (optional) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.5 gal | 10.6 gal |
|---|
| Coolant Capacity | 1.37 gal | Not Published |
|---|
| Crankcase Capacity | 4.5 qt | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 5.5 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.0 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent with SoftStart electronic modulation |
|---|
| PTO Rear | 540 rpm | 540 rpm, 1.375 in |
|---|
| Mid-PTO Availability | Optional | Not Published |
|---|
| Category, 3-Point Hitch | Category 1 | Category I |
|---|
| Hitch Lift Capacity | 1,356 lb | 2,800 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1356 lb | 2,535 lb |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission (HST) | Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled) |
|---|
| No. of Speeds | Not Published | Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range) |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Differential lock: Yes; Limited slip: Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Power steering |
|---|
| Brakes | Wet disk | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | 1760 lb | Not Published |
|---|
| Drawbar Capacity | 880 lb | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 115.9 in | 122.0 in |
|---|
| Overall Width | 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) | 67.5 in |
|---|
| Wheelbase | 62.8 in | Not Published |
|---|
| Ground Clearance | 12.7 in (R4 tires) | 14.4 in |
|---|
| Min. Turn Radius without Brakes | 9.4 ft (2.9 m) | Not Published |
|---|
| Height to Top of ROPS | 95.3 in | 99.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | 91.3 in |
|---|
|
|---|
| Tractor Weight (Base) | 2266 lb | ROPS: 3,472 lb; Cab: 3,858 lb |
|---|
| Weight with ROPS and Loader | 2972 lb | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Bar, R3 Turf, R4 Industrial | Not Published |
|---|
| R1 Agricultural - Front | 7-14 | Not Published |
|---|
| R1 Agricultural - Rear | 11.2-24 | Not Published |
|---|
| R3 Turf - Front | 27X8.50-15 | Not Published |
|---|
| R3 Turf - Rear | 41X14-20 | Not Published |
|---|
| R4 Industrial - Front | 25X8.50-14 or 27X8.50-15 | Not Published |
|---|
| R4 Industrial - Rear | 15.00-19.5 or 43X16-20 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Quick-change attachment carrier | Skid steer |
|---|
| Loader Model | D160 | FL2611 |
|---|
| Loader Lift Height | 84 in | FL2611: 100 in |
|---|
| Loader Lift Capacity (Full Height) | 1,186 lb | FL2611: 1,870 lb |
|---|
| Loader Breakout Force | 1,704 lb | FL2611: 2,950 lb |
|---|
|
|---|
| Warranty Length & Coverage | 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) | Not Published |
|---|
John Deere 3038E vs Massey Ferguson MF 1M.35: Quick Answers
- Which has more horsepower, the John Deere 3038E or the Massey Ferguson MF 1M.35?
- The John Deere 3038E leads on engine hp at 36.7 hp hp, compared to 36.2 hp hp for the Massey Ferguson MF 1M.35.
- Which has more PTO horsepower, the John Deere 3038E or the Massey Ferguson MF 1M.35?
- The John Deere 3038E leads on pto hp at 30 hp hp, compared to 27.5 hp hp for the Massey Ferguson MF 1M.35.
- Which is heavier, the John Deere 3038E or the Massey Ferguson MF 1M.35?
- The Massey Ferguson MF 1M.35 leads on weight at 3,858 lb lb, compared to 2,266 lb lb for the John Deere 3038E.
- Which has more loader lift capacity, the John Deere 3038E or the Massey Ferguson MF 1M.35?
- The Massey Ferguson MF 1M.35 leads on loader lift at 1,870 lb lb, compared to 1,186 lb lb for the John Deere 3038E.
- Which has more three-point hitch lift capacity, the John Deere 3038E or the Massey Ferguson MF 1M.35?
- The Massey Ferguson MF 1M.35 leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,356 lb lb for the John Deere 3038E.
