Across 7 measurable specs, the Yanmar SM240H leads 6 categories to 1. Machine pages: John Deere 3038E and Yanmar SM240H.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 3038E | Yanmar SM240H |
|---|
| Engine HP (hp) | 36.7 hp | ▲ 36.9 hp |
| PTO HP (hp) | ▲ 30 hp | 27.5 hp |
| Loader Lift (lb) | 1,186 lb | ▲ 2,116 lb |
| 3-Pt Lift (24 in) (lb) | 1,356 lb | ▲ 1,558 lb |
| Lift Height (in) | 84 in | ▲ 101.5 in |
| Breakout Force (lbf) | 1,704 lbf | ▲ 3,435 lbf |
| Hydraulic Flow (gpm) | 9.3 gpm | ▲ 10.5 gpm |

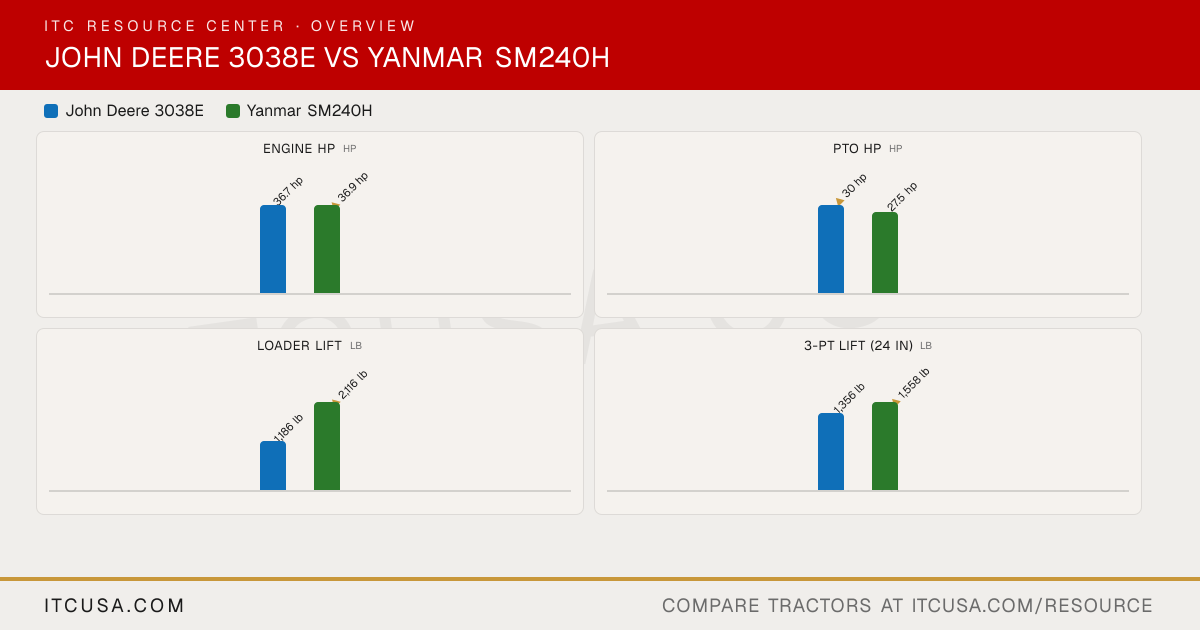

The headline numbers at a glance.
John Deere 3038EYanmar SM240H
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3038E | YanmarSM240H |
|---|
|
|---|
| PTO Power | 30 hp | 27.5 hp |
|---|
| Alternator | 55 A, 12 V | Not Published |
|---|
| Air Cleaner | Dual element | Not Published |
|---|
| Engine Type | Diesel | Not Published |
|---|
| Fuel System | High pressure common rail direct injection | Not Published |
|---|
| Displacement | 95.8 in³ | Not Published |
|---|
| No. of Cylinders | 3 | Not Published |
|---|
| Rated Engine Speed | 2500 rpm | 3000 rpm |
|---|
| Cooling System Type | Water pump (liquid cooled) | Not Published |
|---|
| Engine Manufacturer | Yanmar | YANMAR |
|---|
| Engine Power (Gross) | 36.7 hp | 36.9 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Applicable | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) | Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours |
|---|
|
|---|
| Pump Type | Dual gear | Not Published |
|---|
| Steering Flow | 4.0 gpm | 4.4 gpm |
|---|
| Implement Flow | 5.3 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 9.3 gpm | 10.5 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 9.3 gpm | 10.5 gpm |
|---|
| No. of Optional Remote Valves | Up to 2 (optional) | 1 or 2 |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
|
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| PTO Type | Independent | Independent |
|---|
| Lift Control Type | Position control | Not Published |
|---|
| Hitch Lift Capacity | 1,356 lb | 2,639 lb |
|---|
| Mid-PTO Availability | Optional | Not Published |
|---|
| Category, 3-Point Hitch | Category 1 | Category I |
|---|
| Hitch Lift Capacity (at 24”) | 1,356 lb | 1,558 lb |
|---|
|
|---|
| R3 Turf - Rear | 41X14-20 | Not Published |
|---|
| R3 Turf - Front | 27X8.50-15 | Not Published |
|---|
| Tire Size & Options | R1 Bar, R3 Turf, R4 Industrial | Not Published |
|---|
| R4 Industrial - Rear | 15.00-19.5 or 43X16-20 | Not Published |
|---|
| R4 Industrial - Front | 25X8.50-14 or 27X8.50-15 | Not Published |
|---|
| R1 Agricultural - Rear | 11.2-24 | Not Published |
|---|
| R1 Agricultural - Front | 7-14 | Not Published |
|---|
|
|---|
| Coolant Capacity | 1.37 gal | Not Published |
|---|
| Crankcase Capacity | 1.12 gal (with filter) | Not Published |
|---|
| Fuel Tank Capacity | 7.5 gal | 9.0 gal |
|---|
| Front Axle Fluid Capacity | 1.0 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 5.5 gal | Not Published |
|---|
|
|---|
| Loader Lift Height | 84 in | 101.5 in |
|---|
| Loader Breakout Force | 1,704 lb | 3,435 lb |
|---|
| Quick Attach Loader System | Quick-change attachment carrier | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 1,186 lb | 2,116 lb |
|---|
|
|---|
| Clutch | Not Applicable | Not Applicable |
|---|
| No. of Speeds | Not Applicable | Not Published |
|---|
| Transmission Type | Hydrostatic transmission (HST) | Hydrostatic |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Differential lock: Yes; Limited slip: Not Published | Rear differential lock (foot pedal engagement) |
|---|
|
|---|
| Brakes | Wet disk | Dual brakes |
|---|
| Steering | Power steering | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Selectable 2WD/4WD engagement |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | 1940 lb | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 62.7 in | Not Published |
|---|
| Overall Width | Not Published | Not Published |
|---|
| Ground Clearance | 11.8 in min; 13.1 in max | 12.8 in |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | 9.4 ft (2.9 m) | Not Published |
|---|
| Overall Length with 3-Point Hitch | Not Published | Not Published |
|---|
John Deere 3038E vs Yanmar SM240H: Quick Answers
- Which has more horsepower, the John Deere 3038E or the Yanmar SM240H?
- The Yanmar SM240H leads on engine hp at 36.9 hp hp, compared to 36.7 hp hp for the John Deere 3038E.
- Which has more PTO horsepower, the John Deere 3038E or the Yanmar SM240H?
- The John Deere 3038E leads on pto hp at 30 hp hp, compared to 27.5 hp hp for the Yanmar SM240H.
- Which has more loader lift capacity, the John Deere 3038E or the Yanmar SM240H?
- The Yanmar SM240H leads on loader lift at 2,116 lb lb, compared to 1,186 lb lb for the John Deere 3038E.
- Which has more three-point hitch lift capacity, the John Deere 3038E or the Yanmar SM240H?
- The Yanmar SM240H leads on 3-pt lift (24 in) at 1,558 lb lb, compared to 1,356 lb lb for the John Deere 3038E.
