John Deere 4052M vs Kioti DK5320

Across 8 measurable specs, the John Deere 4052M leads 5 categories to 3. Machine pages: John Deere 4052M and Kioti DK5320.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4052M	KiotiDK5320

▶Engine
PTO Power	40.8 hp	39.3 hp
Alternator	75 A, 12 V	Not Published
Air Cleaner	Dual element (dry type with safety element)	Dry element
Engine Type	Diesel	3-Cyl Turbo Diesel (CRDI)
Fuel System	High-pressure common rail direct injection	Not Published
Displacement	127.6 in³	111.4 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid (water pump)	Liquid-cooled
Engine Manufacturer	Yanmar	KIOTI (Daedong)
Engine Power (Gross)	50.8 hp @ 600 rpm	50.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Single gear	Gear
Steering Flow	6.2 gpm	6.87 gpm
Implement Flow	11.2 gpm	9.62 gpm
Total Hydraulic Flow	17.4 gpm	16.49 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.4 gpm	16.49 gpm
No. of Optional Remote Valves	Up to 3 rear remotes	Not Published
No. of Standard Remote Valves	Not Published	2
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent (electrohydraulic)	Independent
Lift Control Type	Position control	Position
Hitch Lift Capacity	3,130 lb	2,998 lbs @ lower link ball
Mid-PTO Availability	Available	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1 (limited)	Category I
Hitch Lift Capacity (at 24”)	2,500 lb	2,716 lbs @ 24 in behind
▶Tire Options
R3 Turf - Rear	44X18.00-20 (4PR)	5.7 gal-16.1
R3 Turf - Front	27X10.50-15	29X12.5-15
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	420/85D24	14.9-24
R4 Industrial - Front	260/70D16.5	10-16.5
R1 Agricultural - Rear	13.6-28 (6PR) or 380/70R28 or 360/80R28	13.6-24
R1 Agricultural - Front	8.00-16 (10PR) or 280/70R16 or 250/75R16	8.0-16
▶Fluid Capacity
Coolant Capacity	Open station: 6.8 qt; Cab: 8.0 qt (if equipped)	2.1 gal
Crankcase Capacity	5.6 qt (with filter)	1.95 gal
Fuel Tank Capacity	Open station: 15.0 gal; Cab: 14.7 gal (if equipped)	12.7 gal
Front Axle Fluid Capacity	5.3 qt	1.48 gal
Transmission / Hydraulic System Capacity	12.5 gal	11.4 gal
▶Loader & Attachments
Loader Lift Height	112.1 in	107.7 in
Loader Breakout Force	At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf	3,895.0 lb
Quick Attach Loader System	Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)	Quick attach (QA) bucket
Loader Lift Capacity (Full Height)	At pivot: 2,396 lb; @ 19.7 in ahead of pivot: 1,764 lb	2,474.0 lb
▶Transmission & Drivetrain
Clutch	Wet; wet clutch disk diameter 5.08 in	None
No. of Speeds	PowrReverser: 12F/12R; eHydro: Infinitely-variable, 3 range	3 ranges w/ infinite speeds
Transmission Type	Standard: PowrReverser (PRT); Optional: eHydro (eHST), 3-range hydrostatic	Hydrostatic
Max Travel Speed (Forward)	18.6 mph	18.45 mph
Max Travel Speed (Reverse)	18.6 mph	12.92 mph
Differential Lock & Limited Slip Options	Differential lock: Yes	Differential lock: Rear standard
▶Chassis, Steering & Controls
Brakes	Multi-plate wet disc	Wet Disc Type
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Frame Type	ROPS - Foldable	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD) - Standard; engagement On-the-Go	Mechanical 4WD
Drawbar Capacity	Max vertical load 1103 lb	Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs
Front Axle Rating	(Continuous) 3307 lb	Not Published
Seat Suspension & Adjustability	Optional mechanical suspension seat; adjustable weight 52-275.6 lb (115-275 lb); fore/aft adjustment; flips forward	Deluxe suspension seat
▶Dimensions & Maneuverability
Wheelbase	73.0 in	71.3 in
Overall Width	78.2 in	62.8 in
Ground Clearance	Front axle: 15.6 in; Drawbar support: 14.8 in	14.5 in
Height to Top of ROPS	93.7 in	96.8 in
Height to Top of Cab Model	Not Applicable	93.0 in
Height to Top of ROPS (folded)	69.5 in	Not Published
Min. Turn Radius without Brakes	17.1 ft (5.2 m)	Not Published
Overall Length with 3-Point Hitch	130.6 in	125.5 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

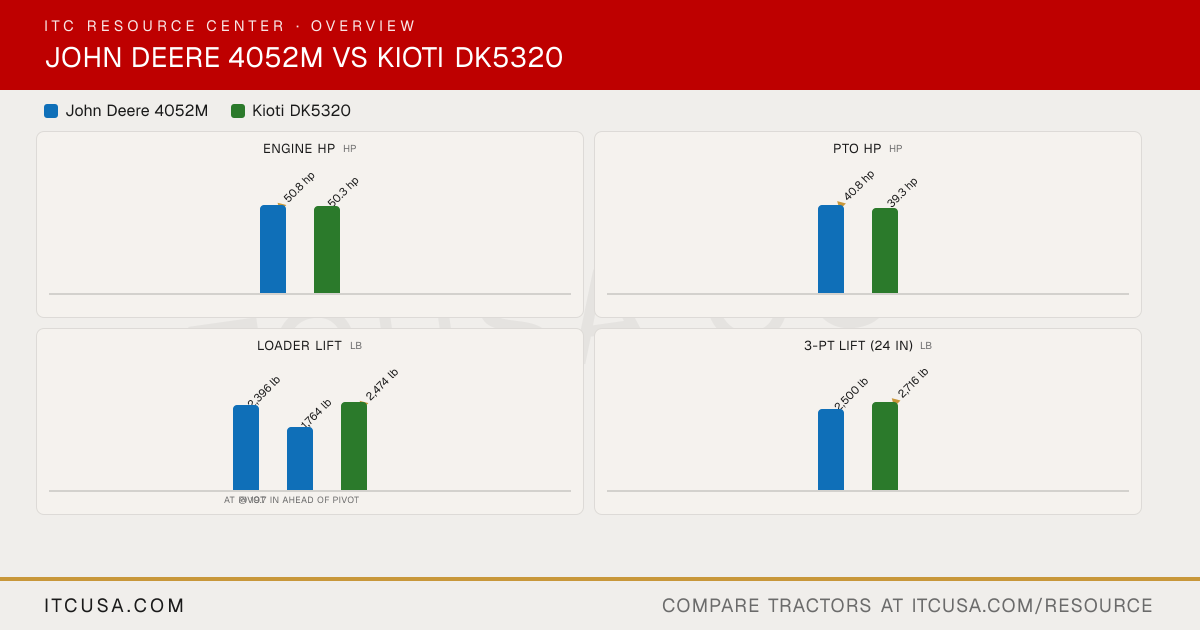

John Deere 4052M vs Kioti DK5320: Quick Answers

Which has more horsepower, the John Deere 4052M or the Kioti DK5320?

The John Deere 4052M leads on engine hp at 50.8 hp hp, compared to 50.3 hp hp for the Kioti DK5320.

Which has more PTO horsepower, the John Deere 4052M or the Kioti DK5320?

The John Deere 4052M leads on pto hp at 40.8 hp hp, compared to 39.3 hp hp for the Kioti DK5320.

Which has more loader lift capacity, the John Deere 4052M or the Kioti DK5320?

The Kioti DK5320 leads on loader lift at 2,474 lb lb, compared to 2,396 lb lb for the John Deere 4052M.

Which has more three-point hitch lift capacity, the John Deere 4052M or the Kioti DK5320?

The Kioti DK5320 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,500 lb lb for the John Deere 4052M.
