| Engine Manufacturer | Yanmar | John Deere |
|---|
| Engine Model | 4TNV86CHT-MJT | 3029T |
|---|
| Engine Type | Turbocharged 4-cylinder Diesel | 3-cylinder liquid-cooled diesel, turbocharged, direct injection |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 127.6 in³ | 179 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2400 rpm |
|---|

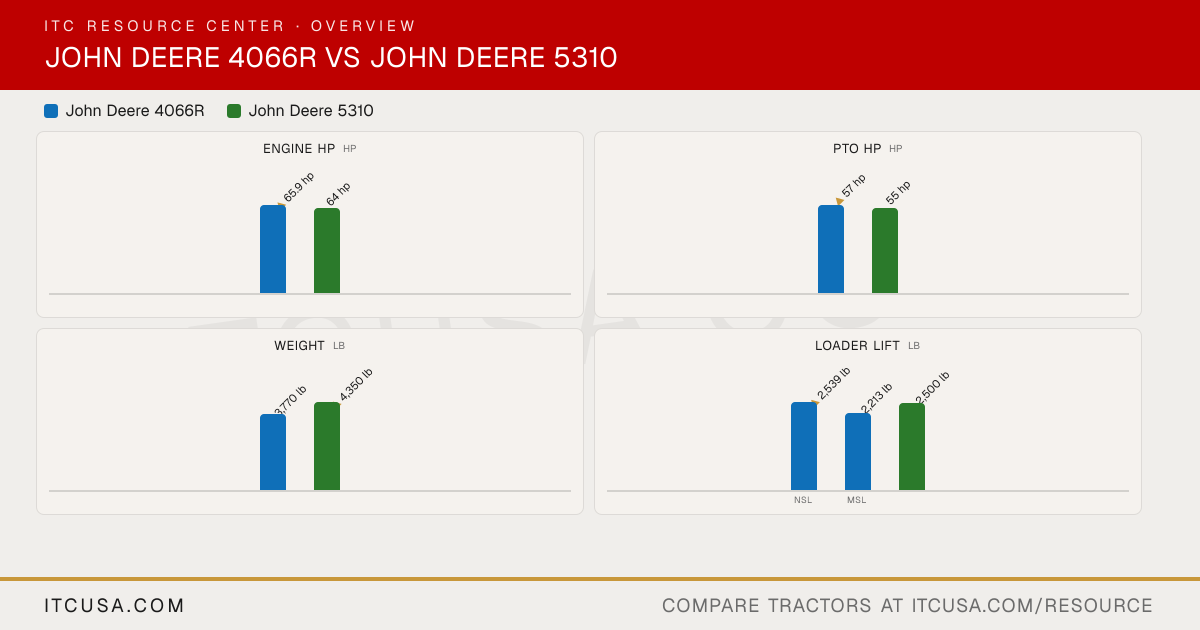

| Engine Power (Gross) | 65.9 hp | 64 hp |
|---|
| PTO Power | 57 hp | 55 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dual element (dry type with safety element) | Dry type with safety element |
|---|
| Fuel System | High-pressure common rail direct injection | Direct injection, rotary injection pump with electric shutoff |
|---|
| Alternator | 75 A, 12 V | 40 A |
|---|
|
|---|
| Pump Type | Dual Independent | Tandem gear pump |
|---|
| Implement Flow | 10.2 gpm | 11.4 gpm |
|---|
| Steering Flow | 5.7 gpm | 6.8 gpm |
|---|
| Total Hydraulic Flow | 15.9 gpm | 18.2 gpm |
|---|
| Overall Hydraulic Pump Flow | 15.9 gpm | 18.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 11.4 gpm |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 3rd, 4th, and 5th optional (up to 5 total) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 15.0 gal | 18 gal (open station); 23 gal (cab) |
|---|
| Coolant Capacity | 6.8 qt | 10 qt |
|---|
| Crankcase Capacity | 5.6 qt (with filter) | 9 qt |
|---|
| Transmission / Hydraulic System Capacity | 12.5 gal | 10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch) |
|---|
| Front Axle Fluid Capacity | 5.3 qt | 5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly) |
|---|
|
|---|
| PTO Type | Independent (electrohydraulic) | Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch |
|---|
| PTO Rear | 540 rpm | 540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle) |
|---|
| Mid-PTO Availability | No mid-PTO offered | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I and II |
|---|
| Hitch Lift Capacity | 3,130 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,500 lb | 3374 lb |
|---|
| Lift Control Type | Position control | Position and depth control, top link draft sensing |
|---|
|
|---|
| Transmission Type | Standard: eHydro (3-range hydrostatic); Optional: 12F/12R PowrReverser | CollarShift standard; SyncShuttle optional; PowrReverser optional |
|---|
| No. of Speeds | Infinitely-variable, 3 range | 9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser) |
|---|
| Max Travel Speed (Forward) | 18.6 mph | 15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4) |
|---|
| Max Travel Speed (Reverse) | 18.6 mph | 13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse) |
|---|
| Clutch | Wet disc (PowrReverser); not applicable on eHydro | Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser) |
|---|
| Differential Lock & Limited Slip Options | Differential lock: standard, rear, mechanical | Not Published |
|---|
|
|---|
| Frame Type | ROPS - Foldable | Two-post ROPS; cab optional; two-wheel drive or MFWD |
|---|
| Steering | Power steering (hydrostatic) | Hydrostatic power steering |
|---|
| Brakes | Wet disc | Wet disk, self-equalizing, self-adjusting |
|---|
| Seat Suspension & Adjustability | Air suspension seat with swivel | Not Published |
|---|
| Front Axle Type | Mechanical front wheel drive (MFWD) - Standard | Two-wheel drive or mechanical front wheel drive (MFWD) |
|---|
| Front Axle Rating | (Continuous) 3307 lb | 2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader) |
|---|
| Drawbar Capacity | Max vertical load 1103 lb | 1675 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 130.6 in | 123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch) |
|---|
| Overall Width | 78.2 in | 66.7 in |
|---|
| Wheelbase | 73.0 in | 80.7 in |
|---|
| Ground Clearance | Front axle: 13.8 in | 18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar) |
|---|
| Min. Turn Radius without Brakes | 17.1 ft (5.2 m) | 11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged) |
|---|
| Height to Top of ROPS | 100.2 in | 88.7 in |
|---|
| Height to Top of ROPS (folded) | 69.5 in | 75.5 in |
|---|
| Height to Top of Cab Model | 97.4 in | 97.9 in |
|---|
|
|---|
| Tractor Weight (Base) | 3,770 lb | 4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Bar, R3 Turf, R4 Industrial | Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1 |
|---|
| R1 Agricultural - Front | 8.00-16 (6PR) | 7.50-16 (2WD); 9.5-24 (MFWD) |
|---|
| R1 Agricultural - Rear | 13.6-28 | 14.9-28 |
|---|
| R3 Turf - Front | 27X10.50-15 | Not Published |
|---|
| R3 Turf - Rear | 44X18.00-20 (4PR) | Not Published |
|---|
| R4 Industrial - Front | 260/70D16.5 | Not Published |
|---|
| R4 Industrial - Rear | 420/85D24 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable) | Not Published |
|---|
| Loader Model | H180 (NSL) or H180MSL | 521; 541; 541 self-leveling |
|---|
| Loader Lift Height | 110 in | 521: 122 in; 541: 126 in; 541 self-leveling: 130 in |
|---|
| Loader Lift Capacity (Full Height) | NSL: 2,539 lb; MSL: 2,213 lb (at pivot) | 521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin) |
|---|
| Loader Breakout Force | At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf | 521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin) |
|---|
|
|---|
| Warranty Length & Coverage | 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) | Not Published |
|---|
