Which has more horsepower, the John Deere 4075R or the John Deere 5075E?

The John Deere 5075E leads on engine hp at 74.8 hp hp, compared to 74.6 hp hp for the John Deere 4075R.

Which has more PTO horsepower, the John Deere 4075R or the John Deere 5075E?

The John Deere 4075R leads on pto hp at 60 hp hp, compared to 57.6 hp hp for the John Deere 5075E.

Which has more loader lift capacity, the John Deere 4075R or the John Deere 5075E?

The John Deere 5075E leads on loader lift at 3,225 lb lb, compared to 2,313 lb lb for the John Deere 4075R.

Which has more three-point hitch lift capacity, the John Deere 4075R or the John Deere 5075E?

The John Deere 5075E leads on 3-pt lift (24 in) at 3,197 lb lb, compared to 2,709 lb lb for the John Deere 4075R.

John Deere 4075R vs John Deere 5075E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 5075E leads 6 categories to 2. Machine pages: John Deere 4075R and John Deere 5075E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 4075R	John Deere 5075E
Engine HP (hp)	74.6 hp	▲ 74.8 hp
PTO HP (hp)	▲ 60 hp	57.6 hp
Loader Lift (lb)	2,313 lb	▲ 3,225 lb
3-Pt Lift (24 in) (lb)	2,709 lb	▲ 3,197 lb
Lift Height (in)	110 in	▲ 124 in
Breakout Force (lbf)	3,835 lbf	▲ 4,354 lbf
Hydraulic Flow (gpm)	17.4 gpm	▲ 18.2 gpm
Travel Speed (mph)	▲ 18.7 mph	15.5 mph

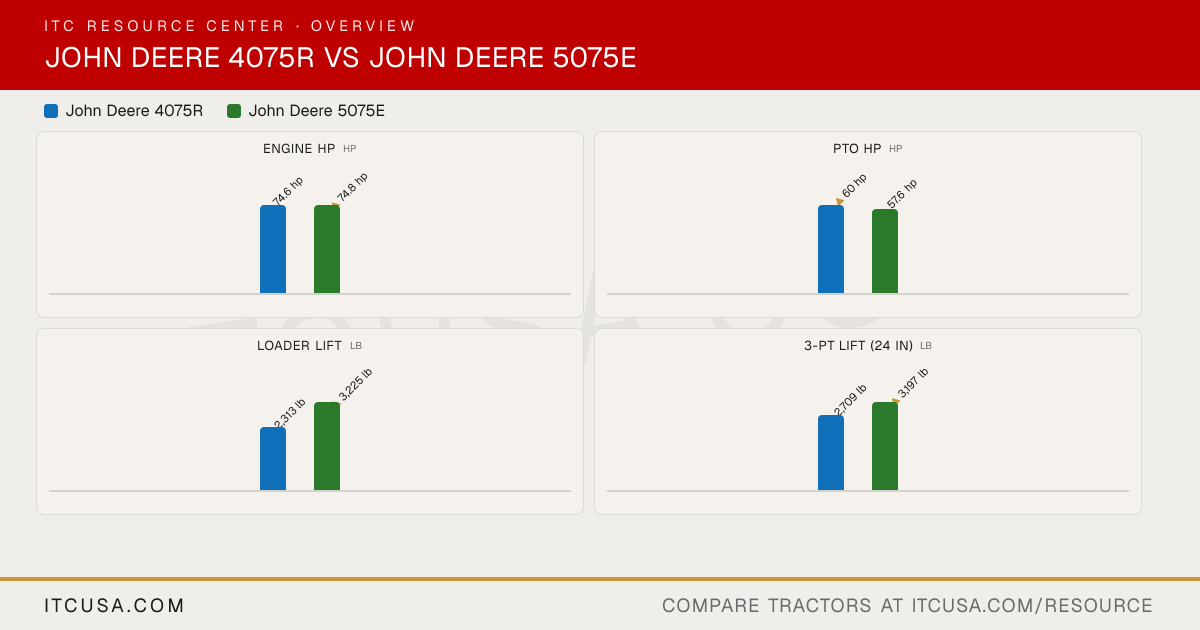

The headline numbers at a glance.

John Deere 4075RJohn Deere 5075E

Engine HPhp

74.6 hp

▲74.8 hp

PTO HPhp

▲60 hp

57.6 hp

Weightlb

—

Loader Liftlb

2,313 lb

▲3,225 lb

3-Pt Lift (24 in)lb

2,709 lb

▲3,197 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4075R	John Deere5075E


PTO Power	60 hp	57.6 hp
Alternator	75 A, 12 V	60 A, 12 V
Air Cleaner	Dry type with safety element	Dry type air cleaner with safety element
Engine Type	Diesel, turbocharged and aftercooled	Diesel, turbocharged and aftercooled
Fuel System	High pressure common-rail direct injection	Electronically controlled, high-pressure common rail
Displacement	127.6 in³	179 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2100 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Yanmar	John Deere PowerTech 3029 EWR
Engine Power (Gross)	74.6 hp	74.8 hp @ 100 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Open center	Tandem gear pump (implement + steering)
Steering Flow	6.2 gpm	6.8 gpm
Implement Flow	11.2 gpm	11.4 gpm
Total Hydraulic Flow	17.4 gpm	18.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	11.4 gpm at a single rear SCV
Overall Hydraulic Pump Flow	17.4 gpm	18.2 gpm
No. of Optional Remote Valves	Up to 6 rear remotes available	2
No. of Standard Remote Valves	Not Published	1

PTO Rear	540 rpm @ 2600 rpm (540E optional)	540 @ 2083 engine rpm; 540E @ 1588 engine rpm
PTO Type	Independent (wet disc clutch); PTO brake for mid & rear PTO	Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser)
Lift Control Type	Position control (draft sensing)	Position and draft control; adjustable rate of drop
Hitch Lift Capacity	3,079 lb at hitch balls	3,968 lb @ hitch points
Mid-PTO Availability	Not Published	Not Applicable
Category, 3-Point Hitch	Limited Category 1	Category II; convertible to Category I
Hitch Lift Capacity (at 24”)	2,709 lb @ 24 in behind	3,197 lb @ 24 in behind hitch balls

R3 Turf - Rear	44X18-20 or 22.5LL-16.1	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)
R3 Turf - Front	27X10.5-15 or 27X12LL-15	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)
Tire Size & Options	R1 Ag / R3 Turf / R4 Industrial / Snow	R1 Ag / R3 Turf / R4 Industrial / Snow
R4 Industrial - Rear	16.9LX24	4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4
R4 Industrial - Front	10-16.5	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4
R1 Agricultural - Rear	13.6-28	14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W
R1 Agricultural - Front	8-16	9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W

Coolant Capacity	8.0 qt	Open operator station: 2.85 gal; Cab: 3.08 gal
Crankcase Capacity	5.7 qt (with filter)	9.0 qt (with filter)
Fuel Tank Capacity	14.7 gal	Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal)
Front Axle Fluid Capacity	5.8 qt	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side
Transmission / Hydraulic System Capacity	12.5 gal	8.36 gal (9x3); 9.46 gal (12x12)

Loader Lift Height	110 in	124 in
Loader Breakout Force	3,835 lbf @ pivot	4,354 lb (measured at pivot)
Quick Attach Loader System	Quick-Park Loader System; Quik-Change Attachment Carrier	Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes)
Loader Lift Capacity (Full Height)	2,313 lb @ pivot	3,225 lb (measured at pivot)

Clutch	Not Applicable (hydrostatic transmission)	Dual clutch, 11 in (PowrReverser)
No. of Speeds	Infinitely variable / 3 range	9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser)
Transmission Type	eHydro / 3-range hydrostatic	SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional)
Max Travel Speed (Forward)	18.7 mph	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)
Max Travel Speed (Reverse)	18.7 mph	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)
Differential Lock & Limited Slip Options	Differential lock: Yes	Mechanical differential lock (pedal)

Brakes	Multi-plate wet disc	Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting)
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	MFWD (4WD)	2WD (standard) or MFWD (optional)
Drawbar Capacity	Not Published	1,675 lb (fully extended); 2,470 lb (short position)
Front Axle Rating	3,307 lb continuous	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)
Seat Suspension & Adjustability	Air suspension with swivel seat	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment

Wheelbase	73.0 in	80.7 in
Overall Width	78.3 in	Not Published
Ground Clearance	13.8 in	Not Published
Height to Top of ROPS	104.3 in	Not Published
Height to Top of Cab Model	97.4 in	Not Published
Height to Top of ROPS (folded)	80.0 in	Not Published
Min. Turn Radius without Brakes	126.0 in	137.8 in (2WD); 183.1 in (4WD)
Overall Length with 3-Point Hitch	133.4 in	143.3 in
