Which has more horsepower, the John Deere 4075R or the John Deere 5075M?

The John Deere 4075R leads on engine hp at 74.6 hp hp, compared to 73.9 hp hp for the John Deere 5075M.

Which has more PTO horsepower, the John Deere 4075R or the John Deere 5075M?

The John Deere 4075R leads on pto hp at 60 hp hp, compared to 57.7 hp hp for the John Deere 5075M.

Which has more three-point hitch lift capacity, the John Deere 4075R or the John Deere 5075M?

The John Deere 5075M leads on 3-pt lift (24 in) at 5,161 lb lb, compared to 2,709 lb lb for the John Deere 4075R.

John Deere 4075R vs John Deere 5075M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, this matchup is a dead heat: 2 categories to the John Deere 4075R, 2 to the John Deere 5075M. Machine pages: John Deere 4075R and John Deere 5075M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 4075R	John Deere 5075M
Engine HP (hp)	▲ 74.6 hp	73.9 hp
PTO HP (hp)	▲ 60 hp	57.7 hp
Loader Lift (lb)	2,313 lb	—
3-Pt Lift (24 in) (lb)	2,709 lb	▲ 5,161 lb
Lift Height (in)	110 in	—
Breakout Force (lbf)	3,835 lbf	—
Hydraulic Flow (gpm)	17.4 gpm	▲ 24.7 gpm
Travel Speed (mph)	18.7 mph	—

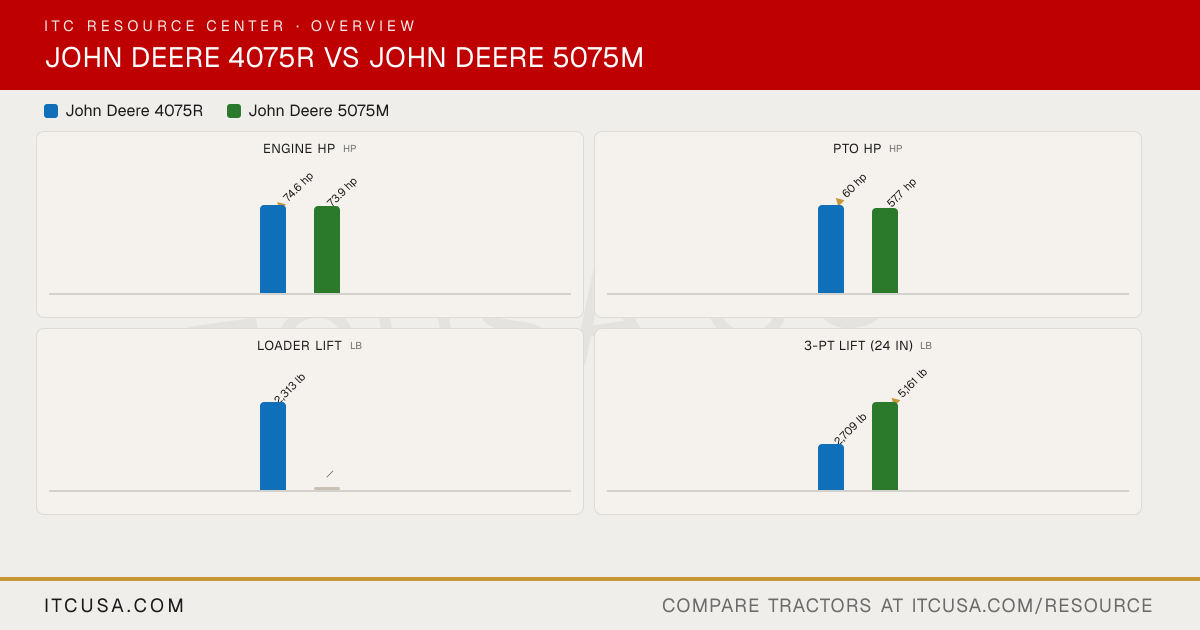

The headline numbers at a glance.

John Deere 4075RJohn Deere 5075M

Engine HPhp

▲74.6 hp

73.9 hp

PTO HPhp

▲60 hp

57.7 hp

Weightlb

—

Loader Liftlb

2,313 lb

—

3-Pt Lift (24 in)lb

2,709 lb

▲5,161 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4075R	John Deere5075M


PTO Power	60 hp	57.7 hp @ 100 rpm
Alternator	75 A, 12 V	90 A
Air Cleaner	Dry type with safety element	Dry air cleaner
Engine Type	Diesel, turbocharged and aftercooled	Diesel, turbocharged and air-to-air aftercooled
Fuel System	High pressure common-rail direct injection	High Pressure Common Rail (HPCR) electronic fuel injection
Displacement	127.6 in³	177 in³
No. of Cylinders	4	3
Rated Engine Speed	2600 rpm	2200 rpm
Cooling System Type	Liquid-cooled	Not Published
Engine Manufacturer	Yanmar	John Deere PowerTech 3029 EWR
Engine Power (Gross)	74.6 hp	73.9 hp @ 200 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Open center	Tandem Gear
Steering Flow	6.2 gpm	6.3 gpm
Implement Flow	11.2 gpm	18.4 gpm
Total Hydraulic Flow	17.4 gpm	24.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	17.4 gpm	24.7 gpm
No. of Optional Remote Valves	Up to 6 rear remotes available	Up to 1 additional (rear) (max 3 total)
No. of Standard Remote Valves	Not Published	2 (rear)

PTO Rear	540 rpm @ 2600 rpm (540E optional)	540 @2100 engine rpm; 540E @1645 engine rpm; 1000 @2100 engine rpm (if equipped)
PTO Type	Independent (wet disc clutch); PTO brake for mid & rear PTO	Independent rear PTO (wet disc clutch, electrohydraulic activation): 540/540E standard; 1000 optional
Lift Control Type	Position control (draft sensing)	Mechanical or electrohydraulic (draft control)
Hitch Lift Capacity	3,079 lb at hitch balls	5,305 lb @ hitch ball (standard 2.6 in cylinders); 6,114 lb optional (65 & 3 in cylinders)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Limited Category 1	Category II (convertible to Category I)
Hitch Lift Capacity (at 24”)	2,709 lb @ 24 in behind	5,161 lb @ 24 in behind lift point (standard); 5,958 lb optional

R3 Turf - Rear	44X18-20 or 22.5LL-16.1	Not Published
R3 Turf - Front	27X10.5-15 or 27X12LL-15	Not Published
Tire Size & Options	R1 Ag / R3 Turf / R4 Industrial / Snow	R1 Ag / R3 Turf / R4 Industrial
R4 Industrial - Rear	16.9LX24	Not Published
R4 Industrial - Front	10-16.5	Not Published
R1 Agricultural - Rear	13.6-28	Not Published
R1 Agricultural - Front	8-16	Not Published

Coolant Capacity	8.0 qt	OOS: 3.6 gal; Cab: 4.2 gal
Crankcase Capacity	5.7 qt (with filter)	2.2 gal
Fuel Tank Capacity	14.7 gal	Cab: 48.2 gal; OOS: 44.6 gal
Front Axle Fluid Capacity	5.8 qt	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal
Transmission / Hydraulic System Capacity	12.5 gal	Open center: 10.4 gal; Closed center: 12.5 gal

Loader Lift Height	110 in	Not Published
Loader Breakout Force	3,835 lbf @ pivot	Not Published
Quick Attach Loader System	Quick-Park Loader System; Quik-Change Attachment Carrier	Not Published
Loader Lift Capacity (Full Height)	2,313 lb @ pivot	Not Published

Clutch	Not Applicable (hydrostatic transmission)	Not Published
No. of Speeds	Infinitely variable / 3 range	16 forward / 16 reverse; 32 forward / 16 reverse (Hi-Lo)
Transmission Type	eHydro / 3-range hydrostatic	PowrReverser 16F/16R or 32F/16R Hi-Lo
Max Travel Speed (Forward)	18.7 mph	Not Published
Max Travel Speed (Reverse)	18.7 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock: Yes	Not Published

Brakes	Multi-plate wet disc	Hydraulically actuated wet disc brakes
Steering	Hydrostatic power steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	MFWD (4WD)	MFWD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	3,307 lb continuous	6,613 lb max permissible front axle load
Seat Suspension & Adjustability	Air suspension with swivel seat	Not Published

Wheelbase	73.0 in	92.5 in
Overall Width	78.3 in	74.0 in (without fender extension); 85.6 in (with fender extension)
Ground Clearance	13.8 in	Not Published
Height to Top of ROPS	104.3 in	Not Published
Height to Top of Cab Model	97.4 in	105.3 in
Height to Top of ROPS (folded)	80.0 in	Not Published
Min. Turn Radius without Brakes	126.0 in	157.5 in
Overall Length with 3-Point Hitch	133.4 in	Cab overall length: 157.3 in
