John Deere 4075R vs John Deere 5090E
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 7 measurable specs, the John Deere 5090E leads 7 categories to 0. Machine pages: John Deere 4075R and John Deere 5090E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

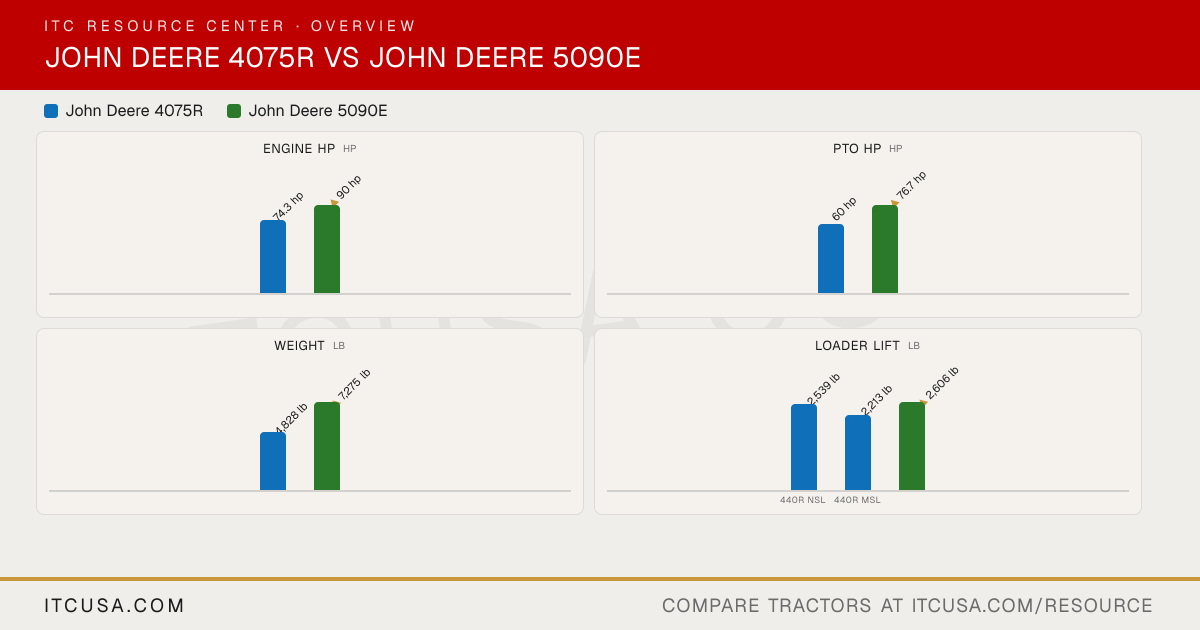

Category Verdict
| Spec | John Deere 4075R | John Deere 5090E |
|---|---|---|
| Engine HP (hp) | 74.3 hp | ▲ 90 hp |
| PTO HP (hp) | 60 hp | ▲ 76.7 hp |
| Weight (lb) | 4,828 lb | ▲ 7,275 lb |
| Loader Lift (lb) | 2,539 lb | ▲ 2,606 lb |
| 3-Pt Lift (24 in) (lb) | 2,500 lb | ▲ 4,630 lb |
| Lift Height (in) | n/a | 132 in |
| Breakout Force (lbf) | n/a | 4,793 lbf |
| Hydraulic Flow (gpm) | 15.9 gpm | ▲ 22.5 gpm |
| Travel Speed (mph) | 18.7 mph | ▲ 21.7 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere4075R | John Deere5090E |
|---|
| Engine Manufacturer | Yanmar | John Deere |
|---|---|---|
| Engine Model | 4TNV86CHT-MJT | PowerTech 4045 (4.5L) PWL |
| Engine Type | Turbocharged 4-cylinder Diesel | 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control |
| No. of Cylinders | 4 | 4 |
| Displacement | 127.6 in³ | 276 in³ |
| Rated Engine Speed | 2600 rpm | 2400 rpm |
| Engine Power (Gross) | 74.3 hp | 90 hp |
| PTO Power | 60 hp | 76.7 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry type with electronic restriction indicator | Dry type with safety element |
| Fuel System | High pressure common-rail direct injection | High pressure common rail, electronic fuel control |
| Alternator | 75 A | OOS: 90 A; Cab: 120 A |
John Deere 4075R vs John Deere 5090E: Quick Answers
- Which has more horsepower, the John Deere 4075R or the John Deere 5090E?
- The John Deere 5090E leads on engine hp at 90 hp hp, compared to 74.3 hp hp for the John Deere 4075R.
- Which has more PTO horsepower, the John Deere 4075R or the John Deere 5090E?
- The John Deere 5090E leads on pto hp at 76.7 hp hp, compared to 60 hp hp for the John Deere 4075R.
- Which is heavier, the John Deere 4075R or the John Deere 5090E?
- The John Deere 5090E leads on weight at 7,275 lb lb, compared to 4,828 lb lb for the John Deere 4075R.
- Which has more loader lift capacity, the John Deere 4075R or the John Deere 5090E?
- The John Deere 5090E leads on loader lift at 2,606 lb lb, compared to 2,539 lb lb for the John Deere 4075R.
- Which has more three-point hitch lift capacity, the John Deere 4075R or the John Deere 5090E?
- The John Deere 5090E leads on 3-pt lift (24 in) at 4,630 lb lb, compared to 2,500 lb lb for the John Deere 4075R.
