| Engine Manufacturer | Yanmar | AGCO Power |
|---|
| Engine Model | 4TNV86CHT-MJT | 33 AWIC |
|---|
| Engine Type | Turbocharged 4-cylinder Diesel | 3-cylinder, intercooled turbocharged diesel |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 127.6 in³ | 201 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2200 rpm |
|---|

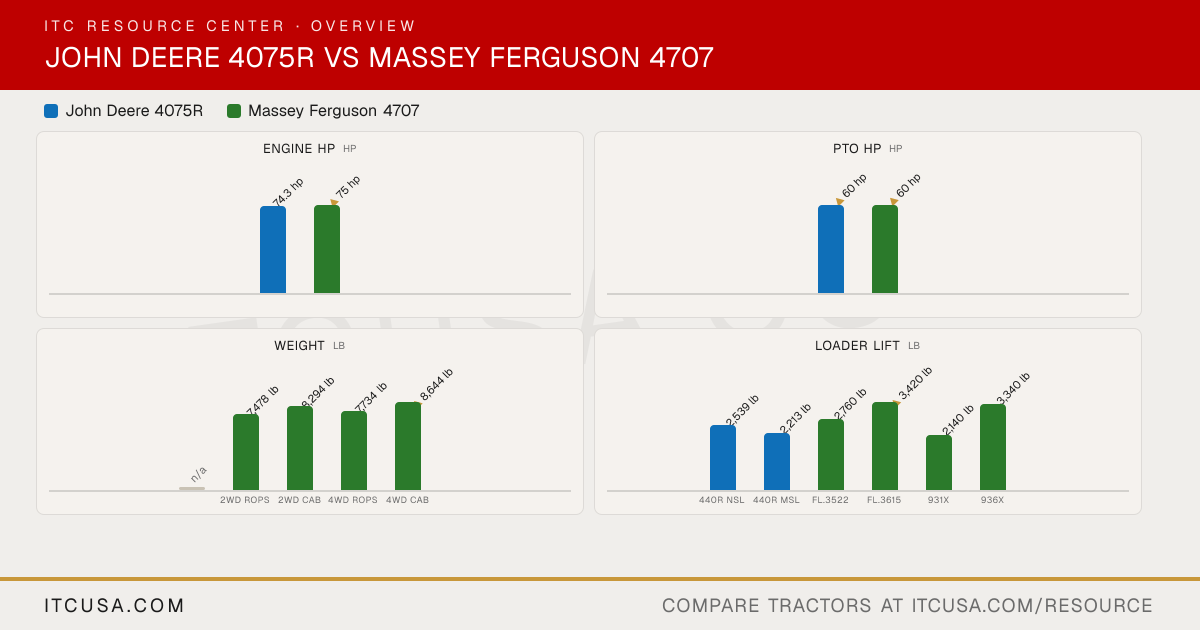

| Engine Power (Gross) | 74.3 hp | 75 hp |
|---|
| PTO Power | 60 hp | 60 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid cooled |
|---|
| Air Cleaner | Dry type with safety element | Dual element (primary and secondary) |
|---|
| Fuel System | High pressure common-rail direct injection | High-pressure common rail direct fuel injection |
|---|
| Alternator | 75 A, 12 V | 80 A |
|---|
|
|---|
| Pump Type | Dual Independent | Two-stage pump |
|---|
| Implement Flow | 10.2 gpm | Not Published |
|---|
| Steering Flow | 5.7 gpm | Not Published |
|---|
| Total Hydraulic Flow | 15.9 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 15.9 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 17.2 gpm |
|---|
| No. of Standard Remote Valves | Not Published | 2 |
|---|
| No. of Optional Remote Valves | 3rd, 4th, and 5th optional (up to 5 total) | 1 |
|---|
|
|---|
| Fuel Tank Capacity | 14.7 gal | 33 gal |
|---|
| Coolant Capacity | 8.0 qt | 4.2 gal |
|---|
| Crankcase Capacity | 5.7 qt (with filter) | 3.3 gal |
|---|
| Transmission / Hydraulic System Capacity | 12.5 gal | Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal |
|---|
| Front Axle Fluid Capacity | 5.8 qt | Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive |
|---|
|
|---|
| PTO Type | Independent (wet disc clutch); PTO brake for mid & rear PTO | Independent, electrohydraulic engagement |
|---|
| PTO Rear | 540 rpm | 540/540E standard; 540/1000 optional |
|---|
| Mid-PTO Availability | No mid-PTO offered | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category II |
|---|
| Hitch Lift Capacity | 3,130 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,500 lb | 4,850 lb |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Standard: eHydro (3-range hydrostatic); Optional: 12F/12R PowrReverser | 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift |
|---|
| No. of Speeds | Infinitely variable / 3 range | 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 |
|---|
| Max Travel Speed (Forward) | 18.7 mph | 25 mph |
|---|
| Max Travel Speed (Reverse) | 18.7 mph | Not Published |
|---|
| Clutch | Wet disc (PowrReverser); not applicable on eHydro | Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever |
|---|
| Differential Lock & Limited Slip Options | Differential lock: Yes | Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock |
|---|
|
|---|
| Frame Type | ROPS - Foldable | Not Published |
|---|
| Steering | Power steering (hydrostatic) | Cab: tilt and telescopic steering column; Platform: tilt steering column |
|---|
| Brakes | Wet disc | Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals |
|---|
| Seat Suspension & Adjustability | Air suspension with swivel seat | Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests |
|---|
| Front Axle Type | Mechanical front wheel drive (MFWD) - Standard | Heavy-duty 2WD or 4WD front axle |
|---|
| Front Axle Rating | 3,307 lb | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 133.4 in | Not Published |
|---|
| Overall Width | 78.3 in | 60.3 in (minimum, with std. 420/85R30 rear tires) |
|---|
| Wheelbase | 73.0 in | 88.5 in |
|---|
| Ground Clearance | 13.8 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 126.0 in | Not Published |
|---|
| Height to Top of ROPS | 104.3 in | Not Published |
|---|
| Height to Top of ROPS (folded) | 80.0 in | Not Published |
|---|
| Height to Top of Cab Model | 97.4 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | Not Published | 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Ag / R3 Turf / R4 Industrial / Snow | 2WD: 9.5L-15 front, 420/85R30 rear; 4WD: 320/85R24 front, 420/85R30 rear |
|---|
| R1 Agricultural - Front | 8.00-16 (6PR) | 2WD: 9.5L-15; 4WD: 320/85R24 |
|---|
| R1 Agricultural - Rear | 13.6-28 | 420/85R30 |
|---|
| R3 Turf - Front | 27X10.5-15 or 27X12LL-15 | Not Published |
|---|
| R3 Turf - Rear | 44X18-20 or 22.5LL-16.1 | Not Published |
|---|
| R4 Industrial - Front | 10-16.5 | Not Published |
|---|
| R4 Industrial - Rear | 16.9LX24 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Quick-Park Loader System; Quik-Change Attachment Carrier | 931X and 936X: universal skid steer type quick release |
|---|
| Loader Model | 440R | FL.3522, FL.3615, 931X, 936X |
|---|
| Loader Lift Height | NSL: 110 in; MSL: 109 in (at pivot pin) | FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | 440R NSL: 2,539 lb; 440R MSL: 2,213 lb (at pivot pin, 4R Series figures) | FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) |
|---|
| Loader Breakout Force | NSL: 4,027 lbf; MSL: 3,917 lbf (at pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) | Not Published |
|---|
