John Deere 4520 vs John Deere 5065E
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the John Deere 5065E leads 7 categories to 1. Machine pages: John Deere 4520 and John Deere 5065E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

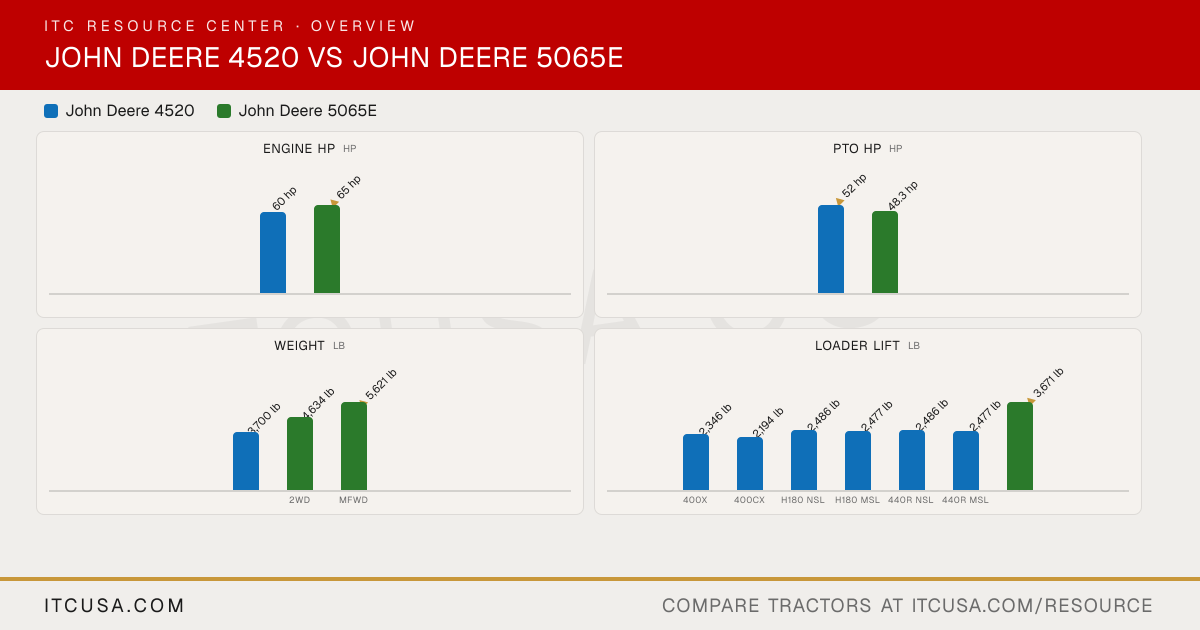

Category Verdict
| Spec | John Deere 4520 | John Deere 5065E |
|---|---|---|
| Engine HP (hp) | 60 hp | ▲ 65 hp |
| PTO HP (hp) | ▲ 52 hp | 48.3 hp |
| Weight (lb) | 3,700 lb | ▲ 5,621 lb |
| Loader Lift (lb) | 2,486 lb | ▲ 3,671 lb |
| 3-Pt Lift (24 in) (lb) | 2,500 lb | ▲ 3,192 lb |
| Lift Height (in) | 112.8 in | ▲ 131 in |
| Breakout Force (lbf) | 3,934 lbf | ▲ 4,504 lbf |
| Hydraulic Flow (gpm) | 17.1 gpm | ▲ 18.2 gpm |
| Travel Speed (mph) | 17.3 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere4520 | John Deere5065E |
|---|
| Engine Manufacturer | John Deere | John Deere |
|---|---|---|
| Engine Model | PowerTech 4024T | PowerTech 3029H |
| Engine Type | 4-cylinder turbocharged liquid-cooled diesel, direct injection | Diesel, turbocharged, liquid-cooled |
| No. of Cylinders | 4 | 3 |
| Displacement | 149 in³ | 179 in³ |
| Rated Engine Speed | 2400 rpm | 2100 rpm |
| Engine Power (Gross) | 60 hp | 65 hp |
| PTO Power | 52 hp | 48.3 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry type with safety element | Two paper elements |
| Fuel System | Direct injection, mechanical fuel pump | Not Published |
| Alternator | 70 A | 40 A |
John Deere 4520 vs John Deere 5065E: Quick Answers
- Which has more horsepower, the John Deere 4520 or the John Deere 5065E?
- The John Deere 5065E leads on engine hp at 65 hp hp, compared to 60 hp hp for the John Deere 4520.
- Which has more PTO horsepower, the John Deere 4520 or the John Deere 5065E?
- The John Deere 4520 leads on pto hp at 52 hp hp, compared to 48.3 hp hp for the John Deere 5065E.
- Which is heavier, the John Deere 4520 or the John Deere 5065E?
- The John Deere 5065E leads on weight at 5,621 lb lb, compared to 3,700 lb lb for the John Deere 4520.
- Which has more loader lift capacity, the John Deere 4520 or the John Deere 5065E?
- The John Deere 5065E leads on loader lift at 3,671 lb lb, compared to 2,486 lb lb for the John Deere 4520.
- Which has more three-point hitch lift capacity, the John Deere 4520 or the John Deere 5065E?
- The John Deere 5065E leads on 3-pt lift (24 in) at 3,192 lb lb, compared to 2,500 lb lb for the John Deere 4520.
