John Deere 5055E vs John Deere 5075E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 0 measurable specs, this matchup is a dead heat: 0 categories to the John Deere 5055E, 0 to the John Deere 5075E. Machine pages: John Deere 5055E and John Deere 5075E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5055E	John Deere 5075E
Engine HP (hp)	—	74.8 hp
PTO HP (hp)	—	57.6 hp
Loader Lift (lb)	—	3,225 lb
3-Pt Lift (24 in) (lb)	—	3,197 lb
Lift Height (in)	—	124 in
Breakout Force (lbf)	—	4,354 lbf
Hydraulic Flow (gpm)	—	18.2 gpm
Travel Speed (mph)	—	15.5 mph

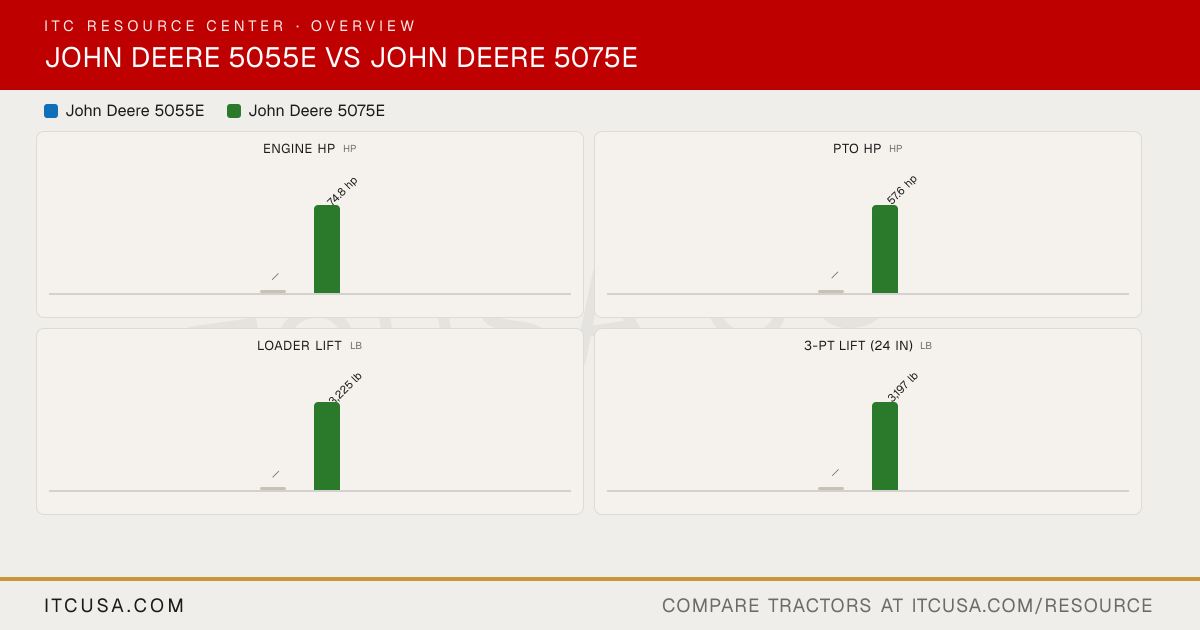

The headline numbers at a glance.

John Deere 5055EJohn Deere 5075E

Engine HPhp

—

74.8 hp

PTO HPhp

—

57.6 hp

Weightlb

—

Loader Liftlb

—

3,225 lb

3-Pt Lift (24 in)lb

—

3,197 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5055E	John Deere5075E


PTO Power	—	57.6 hp
Alternator	—	60 A, 12 V
Air Cleaner	—	Dry type air cleaner with safety element
Engine Type	—	Diesel, turbocharged and aftercooled
Fuel System	—	Electronically controlled, high-pressure common rail
Displacement	—	179 in³
No. of Cylinders	—	3
Rated Engine Speed	—	2100 rpm
Cooling System Type	—	Liquid-cooled
Engine Manufacturer	—	John Deere PowerTech 3029 EWR
Engine Power (Gross)	—	74.8 hp @ 100 rpm
Engine Emissions Constraints	—	Tier 4

Weight with ROPS and Loader	—	Not Published
Weight with Cab and Loader	—	Not Published

Warranty Length & Coverage	—	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	—	Tandem gear pump (implement + steering)
Steering Flow	—	6.8 gpm
Implement Flow	—	11.4 gpm
Total Hydraulic Flow	—	18.2 gpm
Hydraulic System Type	—	Open center
Rear Remote Hydraulic Flow	—	11.4 gpm at a single rear SCV
Overall Hydraulic Pump Flow	—	18.2 gpm
No. of Optional Remote Valves	—	2
No. of Standard Remote Valves	—	1

PTO Rear	—	540 @ 2083 engine rpm; 540E @ 1588 engine rpm
PTO Type	—	Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser)
Lift Control Type	—	Position and draft control; adjustable rate of drop
Hitch Lift Capacity	—	3,968 lb @ hitch points
Mid-PTO Availability	—	Not Applicable
Category, 3-Point Hitch	—	Category II; convertible to Category I
Hitch Lift Capacity (at 24”)	—	3,197 lb @ 24 in behind hitch balls

R3 Turf - Rear	—	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)
R3 Turf - Front	—	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)
Tire Size & Options	—	R1 Ag / R3 Turf / R4 Industrial / Snow
R4 Industrial - Rear	—	4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4
R4 Industrial - Front	—	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4
R1 Agricultural - Rear	—	14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W
R1 Agricultural - Front	—	9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W

Coolant Capacity	—	Open operator station: 2.85 gal; Cab: 3.08 gal
Crankcase Capacity	—	9.0 qt (with filter)
Fuel Tank Capacity	—	Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal)
Front Axle Fluid Capacity	—	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side
Transmission / Hydraulic System Capacity	—	8.36 gal (9x3); 9.46 gal (12x12)

Loader Lift Height	—	124 in
Loader Breakout Force	—	4,354 lb (measured at pivot)
Quick Attach Loader System	—	Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes)
Loader Lift Capacity (Full Height)	—	3,225 lb (measured at pivot)

Clutch	—	Dual clutch, 11 in (PowrReverser)
No. of Speeds	—	9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser)
Transmission Type	—	SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional)
Max Travel Speed (Forward)	—	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)
Max Travel Speed (Reverse)	—	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)
Differential Lock & Limited Slip Options	—	Mechanical differential lock (pedal)

Brakes	—	Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting)
Steering	—	Hydrostatic power steering
Frame Type	—	Not Published
Front Axle Type	—	2WD (standard) or MFWD (optional)
Drawbar Capacity	—	1,675 lb (fully extended); 2,470 lb (short position)
Front Axle Rating	—	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)
Seat Suspension & Adjustability	—	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment

Wheelbase	—	80.7 in
Overall Width	—	Not Published
Ground Clearance	—	Not Published
Height to Top of ROPS	—	Not Published
Height to Top of Cab Model	—	Not Published
Height to Top of ROPS (folded)	—	Not Published
Min. Turn Radius without Brakes	—	137.8 in (2WD); 183.1 in (4WD)
Overall Length with 3-Point Hitch	—	143.3 in
