John Deere 5055E vs Kubota L5460HSTC

Across 8 measurable specs, the John Deere 5055E leads 7 categories to 1. Machine pages: John Deere 5055E and Kubota L5460HSTC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5055E	KubotaL5460HSTC

▶Engine
Engine Manufacturer	John Deere	Kubota
Engine Model	PowerTech 3029H	V2403-CR-TE4-GL3
Engine Type	Diesel, turbocharged, liquid-cooled	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
No. of Cylinders	3	4
Displacement	179 in³	148.5 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	57 hp	56 hp
PTO Power	38.9 hp	46.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Two paper elements	Dry paper, dual element
Fuel System	Not Published	Electronic Common Rail System (CRS)
Alternator	40 A	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Implement Flow	11.4 gpm	9.4 gpm
Steering Flow	6.8 gpm	4.7 gpm
Total Hydraulic Flow	18.2 gpm	14.1 gpm
Overall Hydraulic Pump Flow	18.2 gpm	14.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	2	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	OOS: 18.0 gal; Cab: 21.6 gal	13.5 gal
Coolant Capacity	10 qt	8.7 qt
Crankcase Capacity	9 qt	9.9 qt
Transmission / Hydraulic System Capacity	10.3 gal	11.9 gal
Front Axle Fluid Capacity	4.8 qt	8.9 qt
▶PTO & Hitch
PTO Type	OOS: Independent, mechanical actuation; Cab: Independent, mechanical or electrohydraulic actuation	Live independent (hydraulic clutch)
PTO Rear	540 rpm (540E optional with PowrReverser)	540 rpm @ 2400 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 2, convertible to 1	SAE Category 1 & 2
Hitch Lift Capacity	Not Published	3,858 lb
Hitch Lift Capacity (at 24”)	3,192 lb	2,976 lb
Lift Control Type	Position control with top link draft sensing	Position control
▶Transmission & Drivetrain
Transmission Type	SyncShuttle (standard); PowrReverser (optional)	Hydrostatic transmission
No. of Speeds	9F/3R (SyncShuttle); 12F/12R (PowrReverser optional)	3-range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	Not Published	16.8 mph
Max Travel Speed (Reverse)	Not Published	15.2 mph
Clutch	Dry (SyncShuttle); Dry/Wet with 12F/12R PowrReverser	Not Published
Differential Lock & Limited Slip Options	Rear diff lock, standard	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Hydraulic wet disc brakes	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest
Front Axle Type	2WD or MFWD	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	137.8 in	135.0 in
Overall Width	57.3 in	67.3 in
Wheelbase	80.7 in	75.4 in
Ground Clearance	2WD: 18.8 in; MFWD: 13.4 in	15.4 in
Min. Turn Radius without Brakes	138 in	9.2 ft (with brake applied)
Height to Top of ROPS	96.4 in	Not Applicable
Height to Top of ROPS (folded)	77.1 in	Not Published
Height to Top of Cab Model	94.3 in	92.5 in
▶Weight
Tractor Weight (Base)	2WD: 4,524 lb; MFWD: 5,511 lb	4,365 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	7,054 lb	Not Published
▶Tire Options
Tire Size & Options	Not Published	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)
R1 Agricultural - Front	2WD: 7.5-16; MFWD: 9.5-24	9.5-16
R1 Agricultural - Rear	14.9-28	14.9-26; 13.6-28
R3 Turf - Front	9.5-16	29X12.50-15
R3 Turf - Rear	21.5L-16.1	44X18-20
R4 Industrial - Front	12.5/80-18	10-16.5
R4 Industrial - Rear	16.9-24	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	H240 (NSL or MSL)	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	H240NSL	LA1055
Loader Lift Height	131 in	112.7 in
Loader Lift Capacity (Full Height)	3,671 lb	2361 lb
Loader Breakout Force	4,504 lb	3171 lbf (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a John Deere dealer near you→Find a Kubota dealer near you→

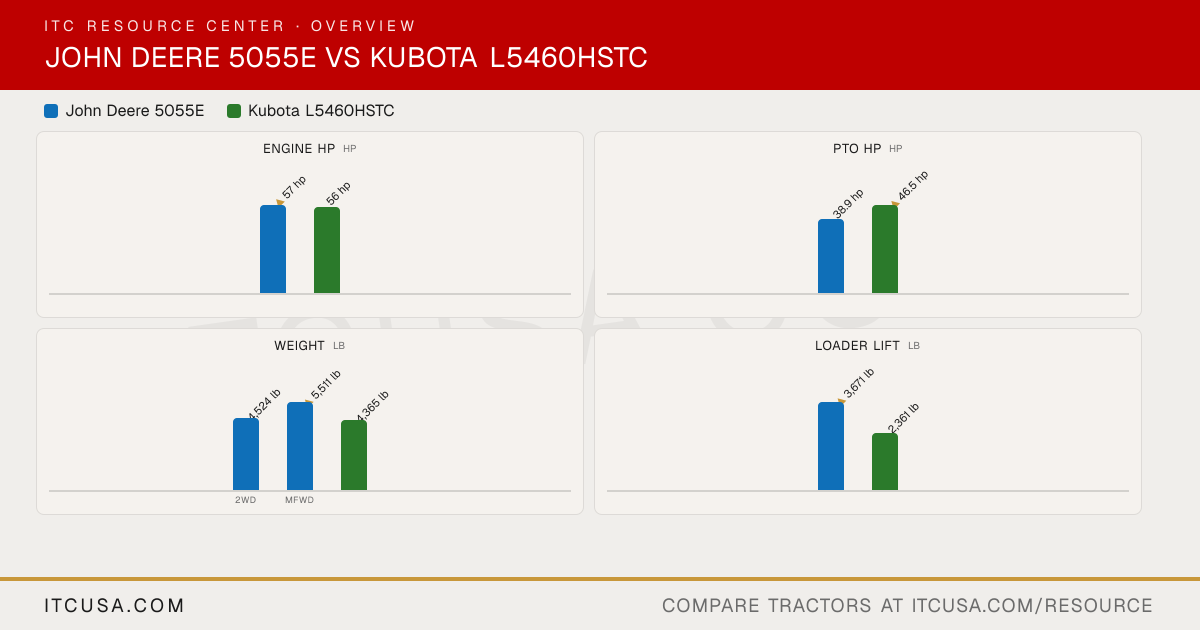

John Deere 5055E vs Kubota L5460HSTC: Quick Answers

Which has more horsepower, the John Deere 5055E or the Kubota L5460HSTC?

The John Deere 5055E leads on engine hp at 57 hp hp, compared to 56 hp hp for the Kubota L5460HSTC.

Which has more PTO horsepower, the John Deere 5055E or the Kubota L5460HSTC?

The Kubota L5460HSTC leads on pto hp at 46.5 hp hp, compared to 38.9 hp hp for the John Deere 5055E.

Which is heavier, the John Deere 5055E or the Kubota L5460HSTC?

The John Deere 5055E leads on weight at 5,511 lb lb, compared to 4,365 lb lb for the Kubota L5460HSTC.

Which has more loader lift capacity, the John Deere 5055E or the Kubota L5460HSTC?

The John Deere 5055E leads on loader lift at 3,671 lb lb, compared to 2,361 lb lb for the Kubota L5460HSTC.

Which has more three-point hitch lift capacity, the John Deere 5055E or the Kubota L5460HSTC?

The John Deere 5055E leads on 3-pt lift (24 in) at 3,192 lb lb, compared to 2,976 lb lb for the Kubota L5460HSTC.
