John Deere 5065E vs John Deere 5075M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 5075M leads 8 categories to 0. Machine pages: John Deere 5065E and John Deere 5075M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5065E	John Deere 5075M
Engine HP (hp)	67 hp	▲ 73.8 hp
PTO HP (hp)	49 hp	▲ 57.7 hp
Weight (lb)	5,621 lb	▲ 9,185 lb
Loader Lift (lb)	3,671 lb	▲ 3,891 lb
3-Pt Lift (24 in) (lb)	3,192 lb	▲ 5,150 lb
Lift Height (in)	131 in	▲ 148.8 in
Breakout Force (lbf)	4,504 lbf	▲ 6,686 lbf
Hydraulic Flow (gpm)	18.2 gpm	▲ 24.7 gpm
Travel Speed (mph)	n/a	24 mph

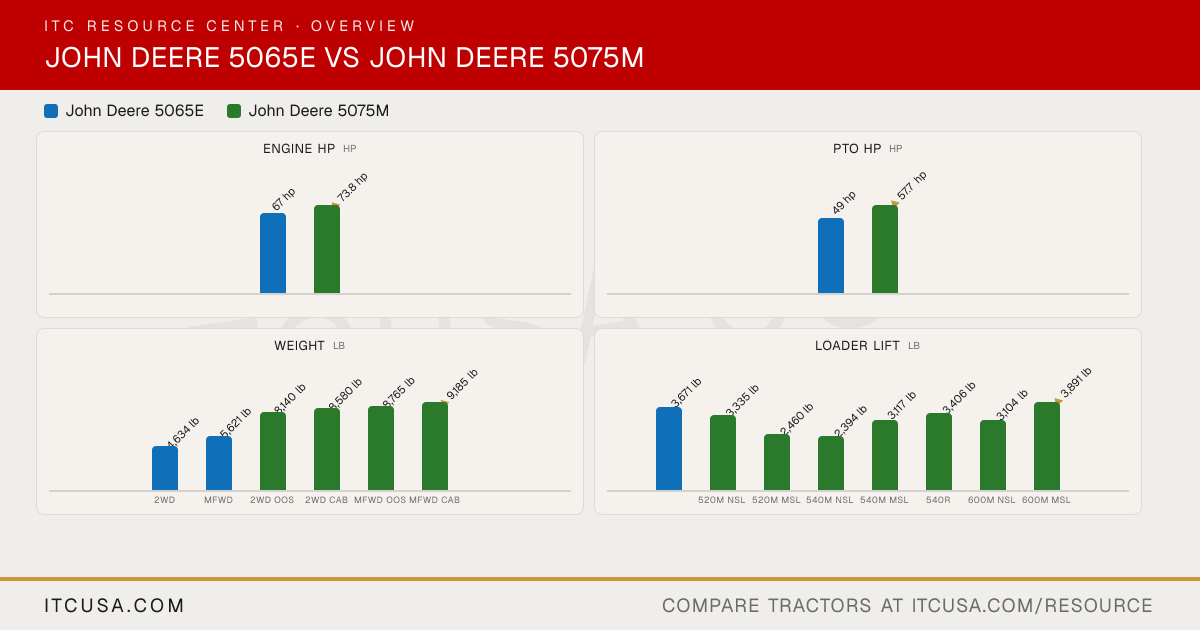

The headline numbers at a glance.

John Deere 5065EJohn Deere 5075M

Engine HPhp

67 hp

▲73.8 hp

PTO HPhp

49 hp

▲57.7 hp

Weightlb

4,634 lb

5,621 lb

8,140 lb

8,580 lb

8,765 lb

▲9,185 lb

2WDMFWD2WD OOS2WD CabMFWD OOSMFWD Cab

Loader Liftlb

3,671 lb

3,335 lb

2,460 lb

2,394 lb

3,117 lb

3,406 lb

3,104 lb

▲3,891 lb

520M NSL520M MSL540M NSL540M MSL540R600M NSL600M MSL

3-Pt Lift (24 in)lb

3,192 lb

▲5,150 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5065E	John Deere5075M


Engine Manufacturer	John Deere	John Deere
Engine Model	John Deere PowerTech 3029	PowerTech 3-cylinder (2.9 L) EWX
Engine Type	Diesel, turbocharged, liquid-cooled	Diesel, turbocharged, aftercooled
No. of Cylinders	3	3
Displacement	179 in³	177 in³
Rated Engine Speed	2100 rpm	2200 rpm
Engine Power (Gross)	67 hp	73.8 hp
PTO Power	49 hp	57.7 hp @ 100 rpm
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled (Cool-Gard II coolant)
Air Cleaner	Dry type, dual element (primary and secondary)	Not Published
Fuel System	Not Published	Not Published
Alternator	40 A	OOS: 90 A; Cab: 120 A

Pump Type	Not Published	Tandem gear pump
Implement Flow	11.4 gpm	18.4 gpm
Steering Flow	6.8 gpm	6.3 gpm
Total Hydraulic Flow	18.2 gpm	24.7 gpm
Overall Hydraulic Pump Flow	18.2 gpm	24.7 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	2 (rear); 2 (mid)
No. of Optional Remote Valves	2	Up to 3 total (rear); up to 3 total (mid)

Fuel Tank Capacity	19.6 gal	OOS: 39.2 gal; OOS (High Capacity): 47.1 gal; Cab: 43.7 gal; Cab (High Capacity): 52 gal
Coolant Capacity	10 qt	OOS: 3.6 gal; Cab: 4.2 gal
Crankcase Capacity	9 qt	2.2 gal
Transmission / Hydraulic System Capacity	10.3 gal	10.4 gal
Front Axle Fluid Capacity	Dana axle: differential housing 1.18 gal, wheel hub (each) 0.21 gal; Carraro axle: differential housing 1.03 gal, reduction gear oil (each side) 0.15 gal	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal

PTO Type	Independent; mechanical engagement (SyncShuttle); electrohydraulic engagement (PowrReverser)	Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional
PTO Rear	540 rpm (540E optional with PowrReverser)	540/540E rpm standard; 1000 rpm optional
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II, convertible to I	Category II (convertible to I)
Hitch Lift Capacity	Not Published	5,305 lb standard; 6,114 lb optional
Hitch Lift Capacity (at 24”)	3,192 lb	5,150 lb standard; 5,950 lb optional
Lift Control Type	Position control with top link draft sensing	Mechanical or Electrohydraulic

Transmission Type	SyncShuttle (standard); PowrReverser (optional)	PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo
No. of Speeds	9F/3R (SyncShuttle); 12F/12R (PowrReverser optional)	16F/16R (standard PowrReverser); 32F/16R (optional PowrReverser Hi-Lo)
Max Travel Speed (Forward)	Not Published	24 mph
Max Travel Speed (Reverse)	Not Published	16F/16R PowrReverser, top gear D-4: 20.5 mph (30K gearing); 23.9 mph (40K gearing), with 480/70R28 rear tires at 2200 rpm
Clutch	Dry (SyncShuttle); wet (12F/12R PowrReverser)	Wet
Differential Lock & Limited Slip Options	Differential lock, standard; pedal-operated, mechanical	Electrohydraulic rear differential lock

Frame Type	Not Published	Cast iron mid-frame
Steering	Power steering	Not Published
Brakes	Hydraulic wet disc brakes	Hydraulically actuated wet disc brakes
Seat Suspension & Adjustability	Not Published	OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb
Front Axle Type	2WD or MFWD	MFWD
Front Axle Rating	Not Published	6,613 lb max permissible front axle load
Drawbar Capacity	1,675 lb (fully extended); 2,470 lb (short position)	Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb

Overall Width	57.3 in	Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
Wheelbase	80.7 in	92.5 in
Ground Clearance	2WD: 18.8 in; MFWD: 13.4 in	Not Published
Min. Turn Radius without Brakes	11.5 ft (2WD); 15.3 ft (4WD); 12.8 ft (4WD, Carraro axle)	13.1 ft
Height to Top of ROPS	98.4 in	102.1 in (with standard rear tires)
Height to Top of ROPS (folded)	78.5 in	Not Published
Height to Top of Cab Model	95.6 in	102.9 in (with standard rear tires)
Overall Length	137.8 in	149.5 in (including draft links)

Tractor Weight (Base)	2WD: 4,634 lb; MFWD: 5,621 lb	2WD OOS: 8,140 lb; 2WD Cab: 8,580 lb; MFWD OOS: 8,765 lb; MFWD Cab: 9,185 lb (approximate ship weight, less weights)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	MFWD: 9.5-24; 280/85R24 (11.2R24) R1W Radial	12.4R24 (320/85R24) R1W Radial
R1 Agricultural - Rear	16.9-28	18.4R30 (460/85R30) R1W Radial
R3 Turf - Front	9.5-16 (MFWD)	Not Published
R3 Turf - Rear	21.5L-16.1; 22.5LL-16.1 (Turf Special)	Not Published
R4 Industrial - Front	12.5/80-18 (MFWD)	Not Published
R4 Industrial - Rear	16.9-24	Not Published

Quick Attach Loader System	520M; H240 (NSL or MSL)	Not Published
Loader Model	H240NSL	520M (4WD only); 540M NSL; 540M MSL; 540R; 600M NSL; 600M MSL
Loader Lift Height	131 in	520M: 130-132 in; 540M NSL: 137-141 in; 540M MSL: 138-141 in; 540R: 141.85 in; 600M NSL: 148.8-152.8 in; 600M MSL: 148-153 in
Loader Lift Capacity (Full Height)	3,671 lb (H240NSL, at pivot)	520M NSL: 3,335-3,612 lb; 520M MSL: 2,460-2,661 lb; 540M NSL: 2,394-2,666 lb; 540M MSL: 3,117-3,309 lb; 540R: 3,406 lb; 600M NSL: 3,104-3,236 lb; 600M MSL: 3,891-4,085 lb
Loader Breakout Force	4,504 lb (H240NSL, at pivot)	540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot; H310 for MFWD tractors)

Warranty Length & Coverage	Not Published	Not Published

Find a John Deere dealer near you

John Deere 5065E vs John Deere 5075M: Quick Answers

Which has more horsepower, the John Deere 5065E or the John Deere 5075M?: The John Deere 5075M leads on engine hp at 73.8 hp hp, compared to 67 hp hp for the John Deere 5065E.
Which has more PTO horsepower, the John Deere 5065E or the John Deere 5075M?: The John Deere 5075M leads on pto hp at 57.7 hp hp, compared to 49 hp hp for the John Deere 5065E.
Which is heavier, the John Deere 5065E or the John Deere 5075M?: The John Deere 5075M leads on weight at 9,185 lb lb, compared to 5,621 lb lb for the John Deere 5065E.
Which has more loader lift capacity, the John Deere 5065E or the John Deere 5075M?: The John Deere 5075M leads on loader lift at 3,891 lb lb, compared to 3,671 lb lb for the John Deere 5065E.
Which has more three-point hitch lift capacity, the John Deere 5065E or the John Deere 5075M?: The John Deere 5075M leads on 3-pt lift (24 in) at 5,150 lb lb, compared to 3,192 lb lb for the John Deere 5065E.
