Across 8 measurable specs, the Mahindra 6530 leads 5 categories to 2 (1 tied). Machine pages: John Deere 5065E and Mahindra 6530.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 5065E | Mahindra 6530 |
|---|
| Engine HP (hp) | 65 hp | 65 hp |
| PTO HP (hp) | 48.3 hp | ▲ 57 hp |
| Weight (lb) | 5,621 lb | ▲ 6,360 lb |
| Loader Lift (lb) | 3,671 lb | ▲ 4,205 lb |
| 3-Pt Lift (24 in) (lb) | 3,192 lb | ▲ 3,968 lb |
| Lift Height (in) | ▲ 131 in | 126 in |
| Breakout Force (lbf) | 4,504 lbf | ▲ 6,807 lbf |
| Hydraulic Flow (gpm) | ▲ 18.2 gpm | 11.4 gpm |

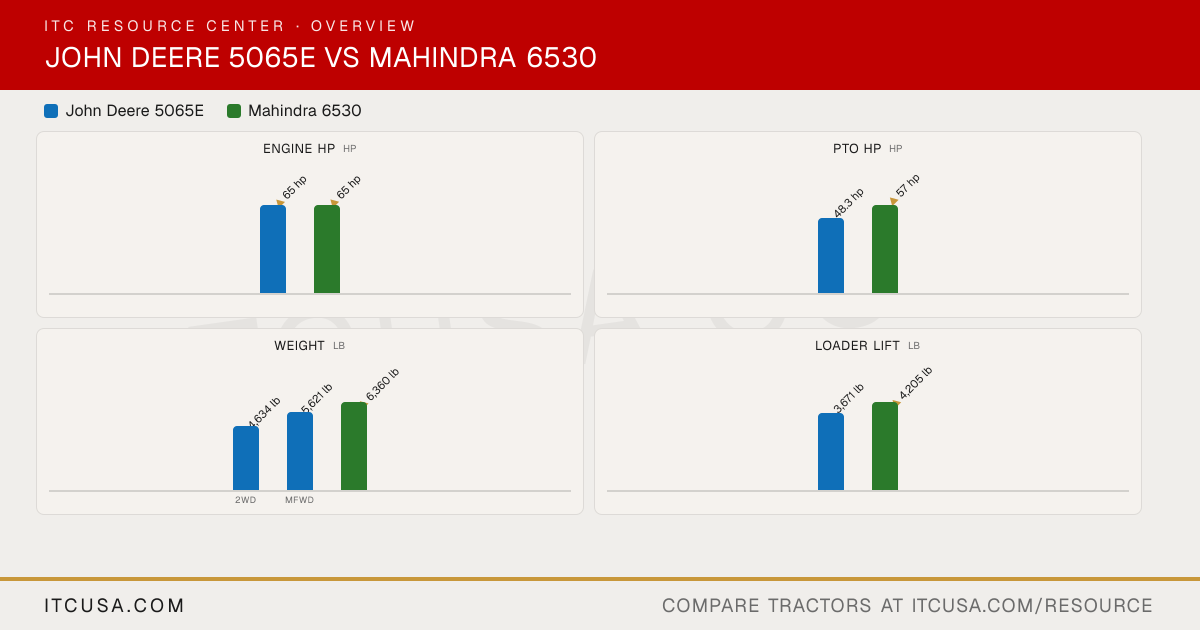

The headline numbers at a glance.
John Deere 5065EMahindra 6530
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
4,634 lb
5,621 lb
▲6,360 lb
2WDMFWD
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere5065E | Mahindra6530 |
|---|
|
|---|
| Engine Manufacturer | John Deere | Mahindra |
|---|
| Engine Model | PowerTech 3029H | Not Published |
|---|
| Engine Type | Diesel, turbocharged, liquid-cooled | Four stroke, direct injection, water-cooled, diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 179 in³ | 215.5 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 65 hp | 65 hp |
|---|
| PTO Power | 48.3 hp | 57 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Two paper elements | Not Published |
|---|
| Fuel System | Not Published | Direct injection |
|---|
| Alternator | 40 A | 36 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 11.4 gpm | 11.4 gpm |
|---|
| Steering Flow | 6.8 gpm | 4.8 gpm |
|---|
| Total Hydraulic Flow | 18.2 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 18.2 gpm | Not Published |
|---|
| Hydraulic System Type | Open Center | Open centre, full-live hydraulic with position and draft controls |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 2 standard |
|---|
| No. of Optional Remote Valves | 2 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | OOS: 18.0 gal; Cab: 21.6 gal | 17.1 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | 9 qt | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 2WD: 10 gal; 4WD: 10.3 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 4.8 qt | Not Published |
|---|
|
|---|
| PTO Type | OOS: Independent, mechanical actuation; Cab: Independent, mechanical or electrohydraulic actuation | Independent |
|---|
| PTO Rear | 540 rpm (540E optional with PowrReverser) | 540 rpm @ 2058 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II, convertible to I | Category 1 & 2 with telescopic check chains |
|---|
| Hitch Lift Capacity | Not Published | 3968 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,192 lb | Not Published |
|---|
| Lift Control Type | Position control with top link draft sensing | Position and draft control |
|---|
|
|---|
| Transmission Type | SyncShuttle (standard); PowrReverser (optional) | Forward-reverse synchro-shuttle with full synchromesh gearshift |
|---|
| No. of Speeds | 9F/3R (SyncShuttle); 12F/12R (PowrReverser optional) | 8F/8R |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dry (SyncShuttle); Dry/Wet with 12F/12R PowrReverser | Dual |
|---|
| Differential Lock & Limited Slip Options | Rear diff lock, standard | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Hydrostatic power |
|---|
| Brakes | Hydraulic wet disc brakes | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | 2WD or MFWD | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 137.8 in | 145 in |
|---|
| Overall Width | 57.3 in | 81 in |
|---|
| Wheelbase | 80.7 in | Not Published |
|---|
| Ground Clearance | 2WD: 18.8 in; MFWD: 13.4 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 138 in | 13.75 ft |
|---|
| Height to Top of ROPS | 98.4 in | Not Published |
|---|
| Height to Top of ROPS (folded) | 78.5 in | Not Published |
|---|
| Height to Top of Cab Model | 95.6 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2WD: 4,634 lb; MFWD: 5,621 lb | 6360 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | 7,165 lb | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | 2WD: 7.5-16; MFWD: 9.5-24 | Not Published |
|---|
| R1 Agricultural - Rear | 16.9-28 | Not Published |
|---|
| R3 Turf - Front | 9.5-16 (4WD) | Not Published |
|---|
| R3 Turf - Rear | 21.5L-16.1 | Not Published |
|---|
| R4 Industrial - Front | 12.5-80-18 (4WD) | 12.5/80x18 |
|---|
| R4 Industrial - Rear | 16.9-24 | 19.5Lx24 |
|---|
|
|---|
| Quick Attach Loader System | H240 (NSL or MSL) | Not Published |
|---|
| Loader Model | H240NSL | ML3070 |
|---|
| Loader Lift Height | 131 in | ML3070: 126 in |
|---|
| Loader Lift Capacity (Full Height) | 3,671 lb | ML3070: 4205 lb |
|---|
| Loader Breakout Force | 4,504 lb | ML3070: 6807 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
John Deere 5065E vs Mahindra 6530: Quick Answers
- Which has more horsepower, the John Deere 5065E or the Mahindra 6530?
- They are effectively tied: both machines are rated at 65 hp hp for engine hp.
- Which has more PTO horsepower, the John Deere 5065E or the Mahindra 6530?
- The Mahindra 6530 leads on pto hp at 57 hp hp, compared to 48.3 hp hp for the John Deere 5065E.
- Which is heavier, the John Deere 5065E or the Mahindra 6530?
- The Mahindra 6530 leads on weight at 6,360 lb lb, compared to 5,621 lb lb for the John Deere 5065E.
- Which has more loader lift capacity, the John Deere 5065E or the Mahindra 6530?
- The Mahindra 6530 leads on loader lift at 4,205 lb lb, compared to 3,671 lb lb for the John Deere 5065E.
- Which has more three-point hitch lift capacity, the John Deere 5065E or the Mahindra 6530?
- The Mahindra 6530 leads on 3-pt lift (24 in) at 3,968 lb lb, compared to 3,192 lb lb for the John Deere 5065E.
