Which has more horsepower, the John Deere 5067E or the John Deere 5075E?

The John Deere 5075E leads on engine hp at 74.8 hp hp, compared to 68.6 hp hp for the John Deere 5067E.

Which has more PTO horsepower, the John Deere 5067E or the John Deere 5075E?

The John Deere 5075E leads on pto hp at 57.6 hp hp, compared to 49 hp hp for the John Deere 5067E.

Which has more loader lift capacity, the John Deere 5067E or the John Deere 5075E?

They are effectively tied: both machines are rated at 3,225 lb lb for loader lift.

Which has more three-point hitch lift capacity, the John Deere 5067E or the John Deere 5075E?

They are effectively tied: both machines are rated at 3,197 lb lb for 3-pt lift (24 in).

John Deere 5067E vs John Deere 5075E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 5075E leads 2 categories to 0 (6 tied). Machine pages: John Deere 5067E and John Deere 5075E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5067E	John Deere 5075E
Engine HP (hp)	68.6 hp	▲ 74.8 hp
PTO HP (hp)	49 hp	▲ 57.6 hp
Loader Lift (lb)	3,225 lb	3,225 lb
3-Pt Lift (24 in) (lb)	3,197 lb	3,197 lb
Lift Height (in)	124 in	124 in
Breakout Force (lbf)	4,354 lbf	4,354 lbf
Hydraulic Flow (gpm)	18.2 gpm	18.2 gpm
Travel Speed (mph)	15.5 mph	15.5 mph

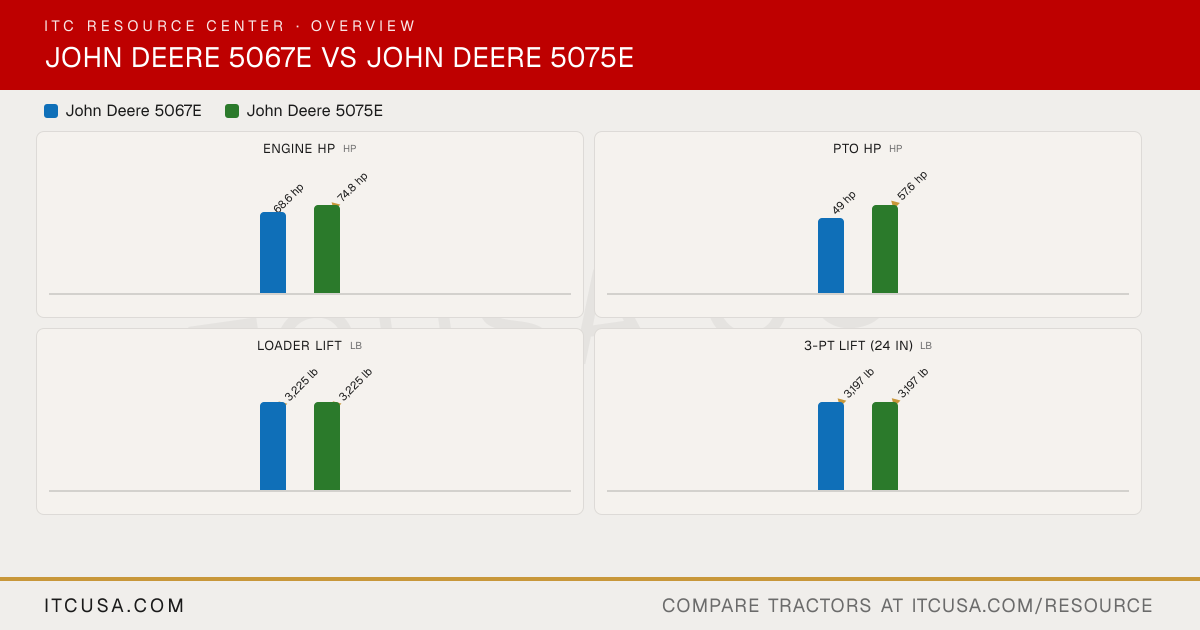

The headline numbers at a glance.

John Deere 5067EJohn Deere 5075E

Engine HPhp

68.6 hp

▲74.8 hp

PTO HPhp

49 hp

▲57.6 hp

Weightlb

—

Loader Liftlb

▲3,225 lb

3-Pt Lift (24 in)lb

▲3,197 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5067E	John Deere5075E


PTO Power	49 hp	57.6 hp
Alternator	60 A, 12 V	60 A, 12 V
Air Cleaner	Dry type with safety element	Dry type air cleaner with safety element
Engine Type	Diesel, turbocharged and aftercooled	Diesel, turbocharged and aftercooled
Fuel System	Electronically controlled, high-pressure common rail	Electronically controlled, high-pressure common rail
Displacement	179 in³	179 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2100 rpm
Cooling System Type	Liquid cooled with overflow reservoir	Liquid-cooled
Engine Manufacturer	John Deere PowerTech 3029 EWR	John Deere PowerTech 3029 EWR
Engine Power (Gross)	68.6 hp @ 100 rpm	74.8 hp @ 100 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Tandem gear pump (implement + steering)	Tandem gear pump (implement + steering)
Steering Flow	6.8 gpm	6.8 gpm
Implement Flow	11.4 gpm	11.4 gpm
Total Hydraulic Flow	18.2 gpm	18.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	11.4 gpm at a single rear SCV	11.4 gpm at a single rear SCV
Overall Hydraulic Pump Flow	18.2 gpm	18.2 gpm
No. of Optional Remote Valves	2	2
No. of Standard Remote Valves	1	1

PTO Rear	540 @ 2083 engine rpm; 540E @ 1588 engine rpm	540 @ 2083 engine rpm; 540E @ 1588 engine rpm
PTO Type	Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser)	Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser)
Lift Control Type	Position and draft control; adjustable rate of drop	Position and draft control; adjustable rate of drop
Hitch Lift Capacity	3,968 lb @ hitch points	3,968 lb @ hitch points
Mid-PTO Availability	Not Applicable	Not Applicable
Category, 3-Point Hitch	Category II; convertible to Category I	Category II; convertible to Category I
Hitch Lift Capacity (at 24”)	3,197 lb @ 24 in behind hitch balls	3,197 lb @ 24 in behind hitch balls

R3 Turf - Rear	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)
R3 Turf - Front	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)
Tire Size & Options	R1 Ag / R3 Turf / R4 Industrial / Snow	R1 Ag / R3 Turf / R4 Industrial / Snow
R4 Industrial - Rear	4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4	4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4
R4 Industrial - Front	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4
R1 Agricultural - Rear	14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W	14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W
R1 Agricultural - Front	9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W	9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W

Coolant Capacity	Open operator station: 2.85 gal; Cab: 3.08 gal	Open operator station: 2.85 gal; Cab: 3.08 gal
Crankcase Capacity	9.0 qt (with filter)	9.0 qt (with filter)
Fuel Tank Capacity	Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal)	Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal)
Front Axle Fluid Capacity	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side
Transmission / Hydraulic System Capacity	8.36 gal (9x3); 9.46 gal (12x12)	8.36 gal (9x3); 9.46 gal (12x12)

Loader Lift Height	124 in	124 in
Loader Breakout Force	4,354 lb (measured at pivot)	4,354 lb (measured at pivot)
Quick Attach Loader System	Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes)	Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes)
Loader Lift Capacity (Full Height)	3,225 lb (measured at pivot)	3,225 lb (measured at pivot)

Clutch	Dual clutch, 11 in (PowrReverser)	Dual clutch, 11 in (PowrReverser)
No. of Speeds	9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser)	9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser)
Transmission Type	SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional)	SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional)
Max Travel Speed (Forward)	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)
Max Travel Speed (Reverse)	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Brakes	Hydraulically actuated wet disk brakes (oil-immersed)	Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting)
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD (standard) or MFWD (optional)	2WD (standard) or MFWD (optional)
Drawbar Capacity	1,675 lb (fully extended); 2,470 lb (short position)	1,675 lb (fully extended); 2,470 lb (short position)
Front Axle Rating	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)
Seat Suspension & Adjustability	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment

Wheelbase	80.7 in	80.7 in
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	137.8 in (2WD); 183.1 in (4WD)	137.8 in (2WD); 183.1 in (4WD)
Overall Length with 3-Point Hitch	143.3 in	143.3 in
