John Deere 5067E vs John Deere 5310

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the John Deere 5310 leads 5 categories to 3 (1 tied). Machine pages: John Deere 5067E and John Deere 5310.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5067E	John Deere 5310
Engine HP (hp)	▲ 67.6 hp	64 hp
PTO HP (hp)	53 hp	▲ 55 hp
Weight (lb)	▲ 5,555 lb	4,350 lb
Loader Lift (lb)	2,453 lb	▲ 2,500 lb
3-Pt Lift (24 in) (lb)	3,192 lb	▲ 3,374 lb
Lift Height (in)	113 in	▲ 122 in
Breakout Force (lbf)	▲ 4,781 lbf	3,485 lbf
Hydraulic Flow (gpm)	18.2 gpm	18.2 gpm
Travel Speed (mph)	15.5 mph	▲ 15.6 mph

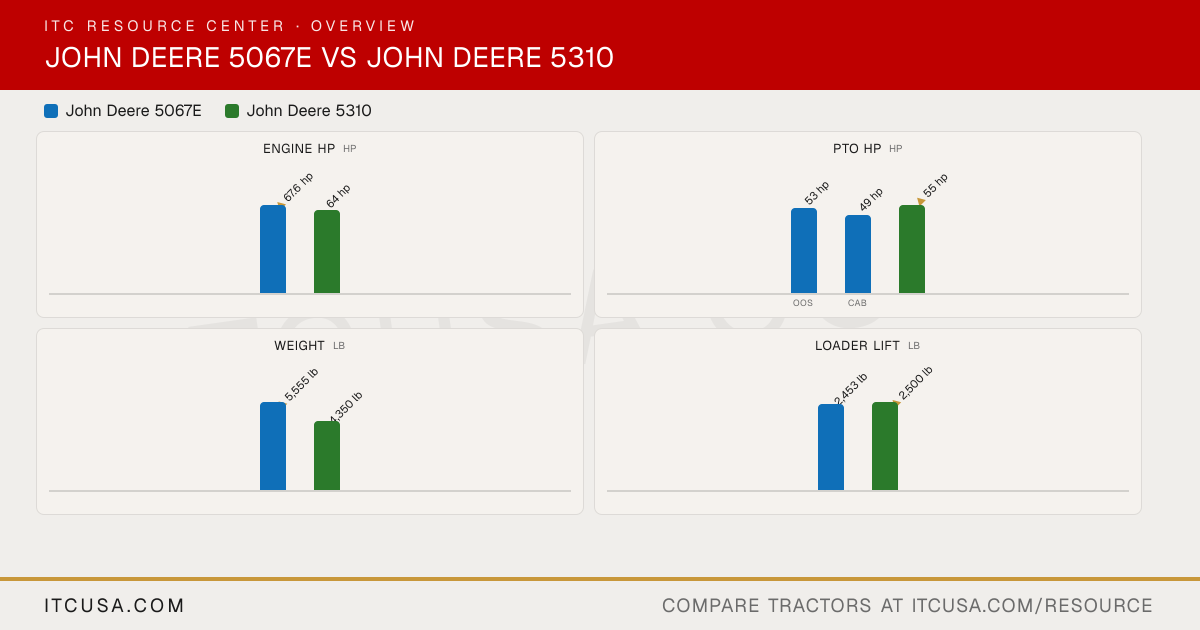

The headline numbers at a glance.

John Deere 5067EJohn Deere 5310

Engine HPhp

▲67.6 hp

64 hp

PTO HPhp

53 hp

49 hp

▲55 hp

OOSCab

Weightlb

▲5,555 lb

4,350 lb

Loader Liftlb

2,453 lb

▲2,500 lb

3-Pt Lift (24 in)lb

3,192 lb

▲3,374 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5067E	John Deere5310


Engine Manufacturer	John Deere	John Deere
Engine Model	3029H	3029T
Engine Type	Diesel, turbocharged	3-cylinder liquid-cooled diesel, turbocharged, direct injection
No. of Cylinders	3	3
Displacement	179 in³	179 in³
Rated Engine Speed	2100 rpm	2400 rpm
Engine Power (Gross)	67.6 hp	64 hp
PTO Power	OOS: 53 hp; Cab: 49 hp	55 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid cooled with overflow reservoir	Liquid-cooled
Air Cleaner	Dry type with safety element	Dry type with safety element
Fuel System	Electronically controlled, high-pressure common rail	Direct injection, rotary injection pump with electric shutoff
Alternator	OOS: 70 A; Cab: 110 A	40 A

Pump Type	Tandem gear pump (implement + steering)	Tandem gear pump
Implement Flow	11.4 gpm	11.4 gpm
Steering Flow	6.8 gpm	6.8 gpm
Total Hydraulic Flow	18.2 gpm	18.2 gpm
Overall Hydraulic Pump Flow	18.2 gpm	18.2 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	11.4 gpm at a single rear SCV	11.4 gpm
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	2	Not Published

Fuel Tank Capacity	OOS: 19.6 gal; Cab: 21.6 gal	18 gal (open station); 23 gal (cab)
Coolant Capacity	Open operator station: 2.85 gal; Cab: 3.08 gal	10 qt
Crankcase Capacity	9.0 qt (with filter)	9 qt
Transmission / Hydraulic System Capacity	8.36 gal (9x3); 9.46 gal (12x12)	10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
Front Axle Fluid Capacity	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side	5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly)

PTO Type	Independent	Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch
PTO Rear	540 rpm (SyncShuttle); 540/540E rpm (PowrReverser)	540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II, convertible to I	Category I and II
Hitch Lift Capacity	3,968 lb	Not Published
Hitch Lift Capacity (at 24”)	3,192 lb	3374 lb
Lift Control Type	Position control, draft control, adjustable rate of drop	Position and depth control, top link draft sensing

Transmission Type	SyncShuttle (standard); PowrReverser (optional)	CollarShift standard; SyncShuttle optional; PowrReverser optional
No. of Speeds	9F/3R (SyncShuttle); 12F/12R (PowrReverser)	9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser)
Max Travel Speed (Forward)	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)	15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4)
Max Travel Speed (Reverse)	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)	13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse)
Clutch	Dual clutch, 11 in (PowrReverser)	Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser)
Differential Lock & Limited Slip Options	Mechanical, rear	Not Published

Frame Type	Not Published	Two-post ROPS; cab optional; two-wheel drive or MFWD
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Hydraulically actuated wet disk brakes, self-equalizing and self-adjusting	Wet disk, self-equalizing, self-adjusting
Seat Suspension & Adjustability	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment	Not Published
Front Axle Type	2WD or MFWD	Two-wheel drive or mechanical front wheel drive (MFWD)
Front Axle Rating	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)	2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader)
Drawbar Capacity	Adjustable drawbar with interchangeable hitch balls	1675 lb

Overall Length with 3-Point Hitch	143.3 in	123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch)
Overall Width	Not Published	66.7 in
Wheelbase	80.7 in	80.7 in
Ground Clearance	Not Published	18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar)
Min. Turn Radius without Brakes	137.8 in (2WD); 183.1 in (4WD)	11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged)
Height to Top of ROPS	Not Published	88.7 in
Height to Top of ROPS (folded)	Not Published	75.5 in
Height to Top of Cab Model	Not Published	97.9 in

Tractor Weight (Base)	5,555 to 6,812 lb	4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Ag / R3 Turf / R4 Industrial / Snow	Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1
R1 Agricultural - Front	11L-15	7.50-16 (2WD); 9.5-24 (MFWD)
R1 Agricultural - Rear	16.9-28	14.9-28
R3 Turf - Front	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)	Not Published
R3 Turf - Rear	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)	Not Published
R4 Industrial - Front	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4	Not Published
R4 Industrial - Rear	17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4	Not Published

Quick Attach Loader System	512 or 520M	Not Published
Loader Model	512 or 520M	521; 541; 541 self-leveling
Loader Lift Height	512: 113 in; 520M: 132 in	521: 122 in; 541: 126 in; 541 self-leveling: 130 in
Loader Lift Capacity (Full Height)	512: 2,453 lb; 520M: 3,523 lb	521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin)
Loader Breakout Force	512: 4,781 lb; 520M: 4,641 lb	521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin)

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Find a John Deere dealer near you

John Deere 5067E vs John Deere 5310: Quick Answers

Which has more horsepower, the John Deere 5067E or the John Deere 5310?: The John Deere 5067E leads on engine hp at 67.6 hp hp, compared to 64 hp hp for the John Deere 5310.
Which has more PTO horsepower, the John Deere 5067E or the John Deere 5310?: The John Deere 5310 leads on pto hp at 55 hp hp, compared to 53 hp hp for the John Deere 5067E.
Which is heavier, the John Deere 5067E or the John Deere 5310?: The John Deere 5067E leads on weight at 5,555 lb lb, compared to 4,350 lb lb for the John Deere 5310.
Which has more loader lift capacity, the John Deere 5067E or the John Deere 5310?: The John Deere 5310 leads on loader lift at 2,500 lb lb, compared to 2,453 lb lb for the John Deere 5067E.
Which has more three-point hitch lift capacity, the John Deere 5067E or the John Deere 5310?: The John Deere 5310 leads on 3-pt lift (24 in) at 3,374 lb lb, compared to 3,192 lb lb for the John Deere 5067E.

Category Verdict

Spec	John Deere 5067E	John Deere 5310
Engine HP (hp)	▲ 67.6 hp	64 hp
PTO HP (hp)	53 hp	▲ 55 hp
Weight (lb)	▲ 5,555 lb	4,350 lb
Loader Lift (lb)	2,453 lb	▲ 2,500 lb
3-Pt Lift (24 in) (lb)	3,192 lb	▲ 3,374 lb
Lift Height (in)	113 in	▲ 122 in
Breakout Force (lbf)	▲ 4,781 lbf	3,485 lbf
Hydraulic Flow (gpm)	18.2 gpm	18.2 gpm
Travel Speed (mph)	15.5 mph	▲ 15.6 mph

The headline numbers at a glance.

John Deere 5067EJohn Deere 5310

Engine HPhp

▲67.6 hp

64 hp

PTO HPhp

53 hp

49 hp

▲55 hp

OOSCab

Weightlb

▲5,555 lb

4,350 lb

Loader Liftlb

2,453 lb

▲2,500 lb

3-Pt Lift (24 in)lb

3,192 lb

▲3,374 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5067E	John Deere5310


Engine Manufacturer	John Deere	John Deere
Engine Model	3029H	3029T
Engine Type	Diesel, turbocharged	3-cylinder liquid-cooled diesel, turbocharged, direct injection
No. of Cylinders	3	3
Displacement	179 in³	179 in³
Rated Engine Speed	2100 rpm	2400 rpm
Engine Power (Gross)	67.6 hp	64 hp
PTO Power	OOS: 53 hp; Cab: 49 hp	55 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid cooled with overflow reservoir	Liquid-cooled
Air Cleaner	Dry type with safety element	Dry type with safety element
Fuel System	Electronically controlled, high-pressure common rail	Direct injection, rotary injection pump with electric shutoff
Alternator	OOS: 70 A; Cab: 110 A	40 A

Pump Type	Tandem gear pump (implement + steering)	Tandem gear pump
Implement Flow	11.4 gpm	11.4 gpm
Steering Flow	6.8 gpm	6.8 gpm
Total Hydraulic Flow	18.2 gpm	18.2 gpm
Overall Hydraulic Pump Flow	18.2 gpm	18.2 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	11.4 gpm at a single rear SCV	11.4 gpm
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	2	Not Published

Fuel Tank Capacity	OOS: 19.6 gal; Cab: 21.6 gal	18 gal (open station); 23 gal (cab)
Coolant Capacity	Open operator station: 2.85 gal; Cab: 3.08 gal	10 qt
Crankcase Capacity	9.0 qt (with filter)	9 qt
Transmission / Hydraulic System Capacity	8.36 gal (9x3); 9.46 gal (12x12)	10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
Front Axle Fluid Capacity	DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side	5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly)

PTO Type	Independent	Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch
PTO Rear	540 rpm (SyncShuttle); 540/540E rpm (PowrReverser)	540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II, convertible to I	Category I and II
Hitch Lift Capacity	3,968 lb	Not Published
Hitch Lift Capacity (at 24”)	3,192 lb	3374 lb
Lift Control Type	Position control, draft control, adjustable rate of drop	Position and depth control, top link draft sensing

Transmission Type	SyncShuttle (standard); PowrReverser (optional)	CollarShift standard; SyncShuttle optional; PowrReverser optional
No. of Speeds	9F/3R (SyncShuttle); 12F/12R (PowrReverser)	9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser)
Max Travel Speed (Forward)	15.5 mph (SyncShuttle); 20.5 mph (PowrReverser)	15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4)
Max Travel Speed (Reverse)	14.2 mph (SyncShuttle); 22.3 mph (PowrReverser)	13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse)
Clutch	Dual clutch, 11 in (PowrReverser)	Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser)
Differential Lock & Limited Slip Options	Mechanical, rear	Not Published

Frame Type	Not Published	Two-post ROPS; cab optional; two-wheel drive or MFWD
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Hydraulically actuated wet disk brakes, self-equalizing and self-adjusting	Wet disk, self-equalizing, self-adjusting
Seat Suspension & Adjustability	Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment	Not Published
Front Axle Type	2WD or MFWD	Two-wheel drive or mechanical front wheel drive (MFWD)
Front Axle Rating	Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire)	2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader)
Drawbar Capacity	Adjustable drawbar with interchangeable hitch balls	1675 lb

Overall Length with 3-Point Hitch	143.3 in	123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch)
Overall Width	Not Published	66.7 in
Wheelbase	80.7 in	80.7 in
Ground Clearance	Not Published	18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar)
Min. Turn Radius without Brakes	137.8 in (2WD); 183.1 in (4WD)	11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged)
Height to Top of ROPS	Not Published	88.7 in
Height to Top of ROPS (folded)	Not Published	75.5 in
Height to Top of Cab Model	Not Published	97.9 in

Tractor Weight (Base)	5,555 to 6,812 lb	4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Ag / R3 Turf / R4 Industrial / Snow	Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1
R1 Agricultural - Front	11L-15	7.50-16 (2WD); 9.5-24 (MFWD)
R1 Agricultural - Rear	16.9-28	14.9-28
R3 Turf - Front	33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium)	Not Published
R3 Turf - Rear	41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium)	Not Published
R4 Industrial - Front	27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4	Not Published
R4 Industrial - Rear	17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4	Not Published

Quick Attach Loader System	512 or 520M	Not Published
Loader Model	512 or 520M	521; 541; 541 self-leveling
Loader Lift Height	512: 113 in; 520M: 132 in	521: 122 in; 541: 126 in; 541 self-leveling: 130 in
Loader Lift Capacity (Full Height)	512: 2,453 lb; 520M: 3,523 lb	521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin)
Loader Breakout Force	512: 4,781 lb; 520M: 4,641 lb	521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin)

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Find a John Deere dealer near you

John Deere 5067E vs John Deere 5310: Quick Answers

Which has more horsepower, the John Deere 5067E or the John Deere 5310?

The John Deere 5067E leads on engine hp at 67.6 hp hp, compared to 64 hp hp for the John Deere 5310.

Which has more PTO horsepower, the John Deere 5067E or the John Deere 5310?

The John Deere 5310 leads on pto hp at 55 hp hp, compared to 53 hp hp for the John Deere 5067E.

Which is heavier, the John Deere 5067E or the John Deere 5310?

The John Deere 5067E leads on weight at 5,555 lb lb, compared to 4,350 lb lb for the John Deere 5310.

Which has more loader lift capacity, the John Deere 5067E or the John Deere 5310?

The John Deere 5310 leads on loader lift at 2,500 lb lb, compared to 2,453 lb lb for the John Deere 5067E.

Which has more three-point hitch lift capacity, the John Deere 5067E or the John Deere 5310?

The John Deere 5310 leads on 3-pt lift (24 in) at 3,374 lb lb, compared to 3,192 lb lb for the John Deere 5067E.

John Deere 5067E vs John Deere 5310

Category Verdict

Full Spec Sheet

John Deere 5067E vs John Deere 5310: Quick Answers

More in the resource center

Look up a tractor

Side-by-side comparison

The Netflix of tractor videos

Tractor guides and articles

John Deere 5067E vs John Deere 5310

Category Verdict

Full Spec Sheet

John Deere 5067E vs John Deere 5310: Quick Answers
