Which has more horsepower, the John Deere 5075M or the New Holland Workmaster 75?

The New Holland Workmaster 75 leads on engine hp at 74 hp hp, compared to 73.9 hp hp for the John Deere 5075M.

Which has more PTO horsepower, the John Deere 5075M or the New Holland Workmaster 75?

The New Holland Workmaster 75 leads on pto hp at 60 hp hp, compared to 57.7 hp hp for the John Deere 5075M.

Which has more three-point hitch lift capacity, the John Deere 5075M or the New Holland Workmaster 75?

The John Deere 5075M leads on 3-pt lift (24 in) at 5,161 lb lb, compared to 3,500 lb lb for the New Holland Workmaster 75.

John Deere 5075M vs New Holland Workmaster 75

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, this matchup is a dead heat: 2 categories to the John Deere 5075M, 2 to the New Holland Workmaster 75. Machine pages: John Deere 5075M and New Holland Workmaster 75.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5075M	New Holland Workmaster 75
Engine HP (hp)	73.9 hp	▲ 74 hp
PTO HP (hp)	57.7 hp	▲ 60 hp
Loader Lift (lb)	—	3,153 lb
3-Pt Lift (24 in) (lb)	▲ 5,161 lb	3,500 lb
Lift Height (in)	—	131.3 in
Hydraulic Flow (gpm)	▲ 24.7 gpm	20.2 gpm
Travel Speed (mph)	—	25 mph

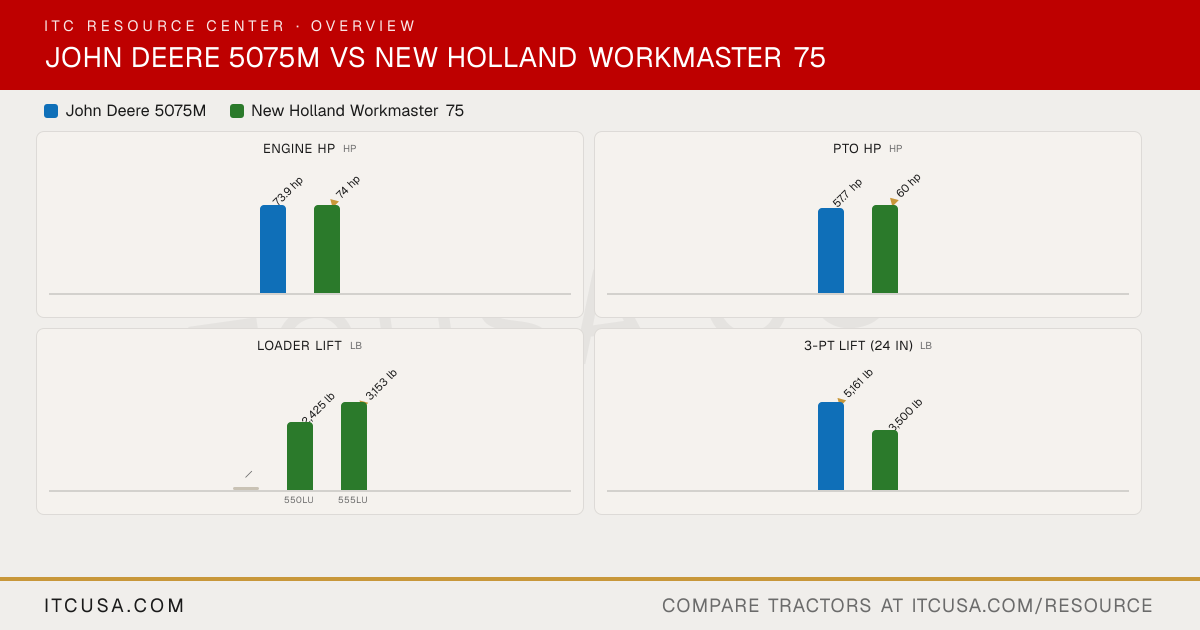

The headline numbers at a glance.

John Deere 5075MNew Holland Workmaster 75

Engine HPhp

73.9 hp

▲74 hp

PTO HPhp

57.7 hp

▲60 hp

Weightlb

—

Loader Liftlb

—

2,425 lb

▲3,153 lb

550LU555LU

3-Pt Lift (24 in)lb

▲5,161 lb

3,500 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5075M	New HollandWorkmaster 75


PTO Power	57.7 hp @ 100 rpm	60 hp
Alternator	90 A	Not Published
Air Cleaner	Dry air cleaner	Not Published
Engine Type	Diesel, turbocharged and air-to-air aftercooled	Turbocharged 3-cylinder diesel
Fuel System	High Pressure Common Rail (HPCR) electronic fuel injection	High-pressure common rail
Displacement	177 in³	179 in³
No. of Cylinders	3	3
Rated Engine Speed	2200 rpm	2300 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	John Deere PowerTech 3029 EWR	FPT Industrial
Engine Power (Gross)	73.9 hp @ 200 rpm	74 hp
Engine Emissions Constraints	Tier 4	Tier 4B CEGR + DOC (no DPF; no regeneration)

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Pump Type	Tandem Gear	Dual pumps
Steering Flow	6.3 gpm	7.6 gpm
Implement Flow	18.4 gpm	12.6 gpm
Total Hydraulic Flow	24.7 gpm	20.2 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	24.7 gpm	20.2 gpm
No. of Optional Remote Valves	Up to 1 additional (rear) (max 3 total)	1
No. of Standard Remote Valves	2 (rear)	2

PTO Rear	540 @2100 engine rpm; 540E @1645 engine rpm; 1000 @2100 engine rpm (if equipped)	540 rpm
PTO Type	Independent rear PTO (wet disc clutch, electrohydraulic activation): 540/540E standard; 1000 optional	Hydraulic wet clutch
Lift Control Type	Mechanical or electrohydraulic (draft control)	Lift-O-Matic
Hitch Lift Capacity	5,305 lb @ hitch ball (standard 2.6 in cylinders); 6,114 lb optional (65 & 3 in cylinders)	Not Published
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II (convertible to Category I)	Not Published
Hitch Lift Capacity (at 24”)	5,161 lb @ 24 in behind lift point (standard); 5,958 lb optional	3,500 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Ag / R3 Turf / R4 Industrial	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	OOS: 3.6 gal; Cab: 4.2 gal	Not Published
Crankcase Capacity	2.2 gal	Not Published
Fuel Tank Capacity	Cab: 48.2 gal; OOS: 44.6 gal	Not Published
Front Axle Fluid Capacity	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal	Not Published
Transmission / Hydraulic System Capacity	Open center: 10.4 gal; Closed center: 12.5 gal	Not Published

Loader Lift Height	Not Published	550LU: 131.3 in; 555LU: 130.0 in
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Not Published	550LU, 555LU: 72 in bucket; SSL or Euro-style quick attach
Loader Lift Capacity (Full Height)	Not Published	550LU: 2,425 lb; 555LU: 3,153 lb

Clutch	Not Published	Not Published
No. of Speeds	16 forward / 16 reverse; 32 forward / 16 reverse (Hi-Lo)	12F/12R
Transmission Type	PowrReverser 16F/16R or 32F/16R Hi-Lo	12x12 power shuttle
Max Travel Speed (Forward)	Not Published	25 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Hydraulically actuated wet disc brakes	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	MFWD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	6,613 lb max permissible front axle load	6,500 lb dynamic capacity
Seat Suspension & Adjustability	Not Published	ROPS: Not Published; CAB: Cloth air-suspension seat

Wheelbase	92.5 in	83.6 in
Overall Width	74.0 in (without fender extension); 85.6 in (with fender extension)	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	99.8 in
Height to Top of Cab Model	105.3 in	100.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	157.5 in	Not Published
Overall Length with 3-Point Hitch	Cab overall length: 157.3 in	154.1 in
