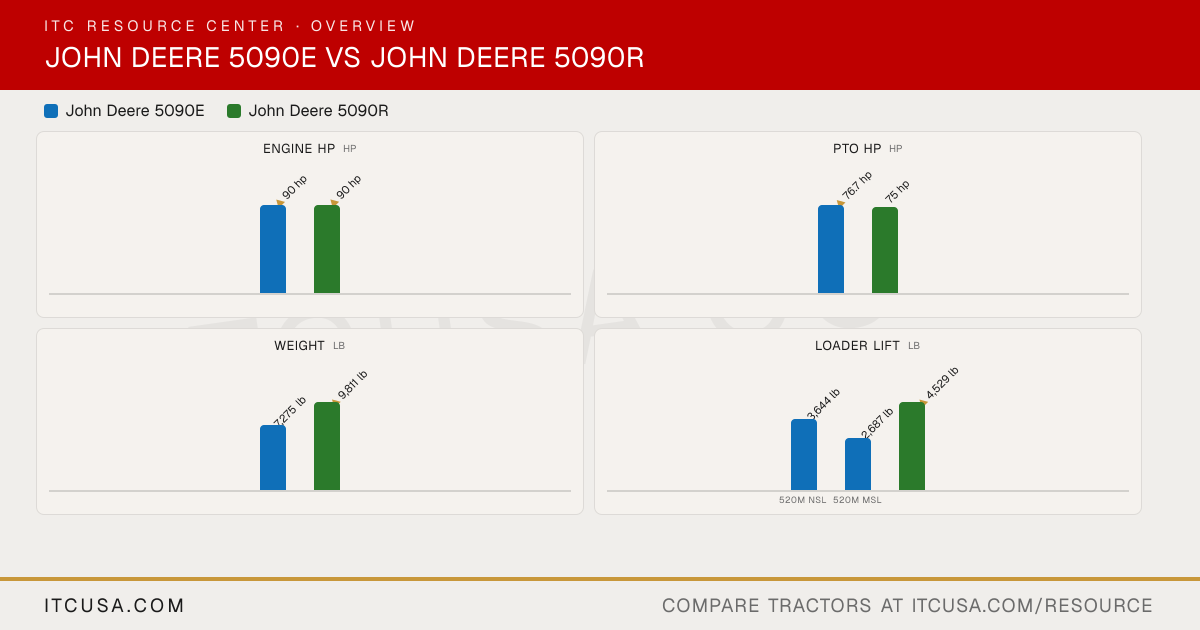

▶ EngineEngine Manufacturer John Deere John Deere Engine Model PowerTech 4045 (4.5L) PWL John Deere PowerTech 4.5L diesel Engine Type 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control 4-cylinder, turbocharged and intercooled diesel, 4-valve high pressure common rail No. of Cylinders 4 4 Displacement 276 in³ 276 in³ Rated Engine Speed 2400 rpm 2200 rpm Engine Power (Gross) 90 hp 90 hp PTO Power 76.7 hp 75 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry type with safety element Dry type with safety element Fuel System High pressure common rail, electronic fuel control High pressure common rail, 4 valve, electronic fuel control Alternator OOS: 90 A; Cab: 120 A 200 A ▶ HydraulicsPump Type Tandem gear pump, two engine-mounted pumps Tandem gear pump (open center); variable axial-piston implement pump (PFC, optional) Implement Flow 15.9 gpm 19.3 gpm (open center); 30.9 gpm (PFC) Steering Flow 6.6 gpm 6.3 gpm (open center) Total Hydraulic Flow 22.5 gpm 25.6 gpm (open center) Overall Hydraulic Pump Flow 22.5 gpm 25.6 gpm (open center); 30.9 gpm (PFC) Hydraulic System Type Open center Open center (standard); closed center PFC (optional) Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear; 0 mid 2 rear and 2 mid (stackable) No. of Optional Remote Valves 3 rear; up to 3 mid Rear: 3 (mechanical or proportional EH, optional; 4th rear by conversion kit); Mid: 3 Deluxe (mechanical or EH, optional) ▶ Fluid CapacityFuel Tank Capacity 25 gal (open operator station); 30 gal (cab) 38 gal Coolant Capacity 2.5 gal (open operator station); 3 gal (cab) 4.25 gal Crankcase Capacity 3.2 gal 3.1 gal Transmission / Hydraulic System Capacity 11.5 gal 11.75 gal (open center); 12.5 gal (closed center PFC) Front Axle Fluid Capacity 1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub) 1.3 gal (MFWD differential housing); 0.2 gal (each wheel hub) ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement, wet PTO clutch Independent, electro-hydraulic engagement, wet PTO clutch, reversible 540/1000 shaft PTO Rear 540/540E standard; 540/1000 optional 540/540E/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 2, convertible to Category 1 Category II (telescoping draft links with Category II balls) Hitch Lift Capacity 5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range 7,158 lb; 8,157 lb throughout lift range at hitch ball; 11,122 lb / 12,515 lb maximum Hitch Lift Capacity (at 24”) 4,630 lb (electrohydraulic hitch) 6,975 lb; 7,868 lb throughout lift range Lift Control Type Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing Electro-hydraulic hitch with fender controls, lower-link draft sensing ▶ Transmission & DrivetrainTransmission Type PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional CommandQuad 16F/16R manual with electronic range and gear shifting, AutoClutch and wet traction clutch (standard); CommandQuad 16F/16R Auto, CommandQuad 16F/16R manual with creeper, or Command8 32F/16R (optional) No. of Speeds 12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo) 16F/16R (CommandQuad, standard); 32F/16R (Command8, optional) Max Travel Speed (Forward) 21.7 mph (electronically limited) 22.0 mph (D4, 16/16 transmission, 480/70R28 rear tires) Max Travel Speed (Reverse) 21.7 mph (electronically limited) 18.6 mph Clutch Wet Wet traction clutch with AutoClutch Differential Lock & Limited Slip Options Rear differential lock Electro-hydraulic differential lock ▶ Chassis, Steering & ControlsFrame Type Foldable ROPS (open operator station); standard or premium cab; MFWD Cab standard with air conditioning; mechanical front-wheel drive (MFWD) Steering Hydrostatic power steering Hydrostatic power steering Brakes Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage Hydraulic wet disc, self-equalizing and self-adjusting, lockable turning brakes; electronic park brake Seat Suspension & Adjustability Mechanical seat standard; air-suspension seat optional for cab Not Published Front Axle Type MFWD MFWD, electro-hydraulic engagement, planetary final drives Front Axle Rating 6,615 lb 7,937 lb (MFWD closed center); 7,055 lb (MFWD open center) Drawbar Capacity 2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended) 2,756 lb (standard drawbar, 9.8 in extended); 2,205 lb (standard, 13.8 in extended); 3,197 lb (heavy duty, 9.8 in extended); 2,646 lb (heavy duty, 13.8 in extended) ▶ Dimensions & ManeuverabilityOverall Width 83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires) 87 in (with fender extension); 74 in (without fender extension); 66.9 in (narrow cab, without fender extension) Wheelbase 92.5 in 88.6 in Ground Clearance 17 in (front axle) Not Published Min. Turn Radius without Brakes 11.6 ft (MFWD) Not Published Height to Top of ROPS 101.1 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.4 in 106.1 in Overall Length 159.13 in 147.8 in ▶ WeightTractor Weight (Base) 7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight) 9,811 lb (base machine weight, with all fluids) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4-30 R1 bias rear standard; 16.9-30 R1 also listed 320/85R24 (12.4R24) R1-W radial front and 460/85R30 (18.4R30) R1-W radial rear standard; optional 11.2R28/13.6R38, 380/70R20/480/70R28, 13.6R24/16.9R34, 380/70R24/480/70R34 R1; R3 44x18-20/23.1-26; R4 12.5/80-18/19.5L-24 R1 Agricultural - Front 12.4-24 320/85R24 (12.4R24) R1-W radial R1 Agricultural - Rear 18.4-30 R1 bias 460/85R30 (18.4R30) R1-W radial R3 Turf - Front Not Published 44x18-20 R3 Turf - Rear Not Published 23.1-26 R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach option with integrated parking stand Global carrier in base; John Deere 500-style carrier optional (540R) Loader Model 520M (NSL and MSL); 540M (NSL) 540R (non self-leveling and mechanical self-leveling) Loader Lift Height 520M MSL: 132.0 in 540R: 141.5 in Loader Lift Capacity (Full Height) 520M MSL: 2,606 lb (to maximum height, measured at pivot) 540R NSL: 4,246 lb (measured at pivot) Loader Breakout Force 520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point) 540R NSL: 4,945 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Powertrain 5 years or 2,000 hours, as sold new Not Published
