John Deere 5090E vs John Deere 5130M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 5130M leads 8 categories to 0. Machine pages: John Deere 5090E and John Deere 5130M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5090E	John Deere 5130M
Engine HP (hp)	90 hp	▲ 128.5 hp
PTO HP (hp)	76.7 hp	▲ 113.3 hp
Weight (lb)	7,275 lb	▲ 9,185 lb
Loader Lift (lb)	2,606 lb	▲ 3,406 lb
3-Pt Lift (24 in) (lb)	4,630 lb	▲ 6,975 lb
Lift Height (in)	132 in	▲ 148.8 in
Breakout Force (lbf)	4,793 lbf	n/a
Hydraulic Flow (gpm)	22.5 gpm	▲ 25.6 gpm
Travel Speed (mph)	21.7 mph	▲ 24 mph

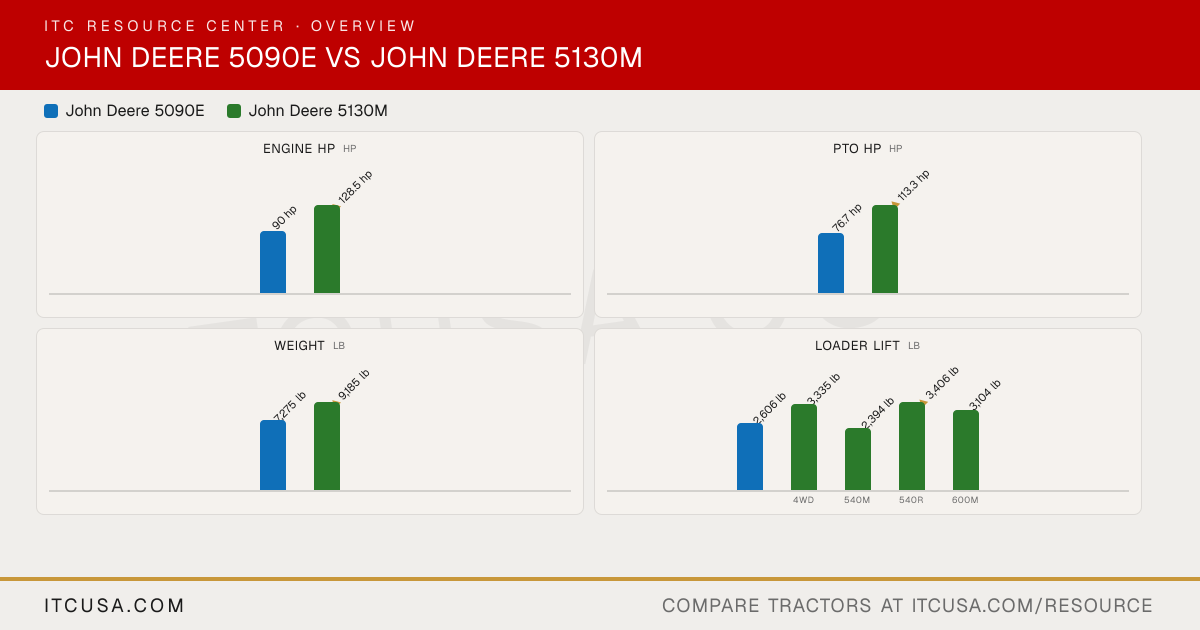

The headline numbers at a glance.

John Deere 5090EJohn Deere 5130M

Engine HPhp

90 hp

▲128.5 hp

PTO HPhp

76.7 hp

▲113.3 hp

Weightlb

7,275 lb

▲9,185 lb

Loader Liftlb

2,606 lb

3,335 lb

2,394 lb

▲3,406 lb

3,104 lb

4WD540M540R600M

3-Pt Lift (24 in)lb

4,630 lb

▲6,975 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5090E	John Deere5130M


Engine Manufacturer	John Deere	John Deere
Engine Model	PowerTech 4045 (4.5L) PWL	PowerTech 4045 EWL
Engine Type	4-cylinder, turbocharged and aftercooled diesel, electronic fuel control	Diesel, turbocharged with intercooler, 4-valve HPCR
No. of Cylinders	4	4
Displacement	276 in³	276 in³
Rated Engine Speed	2400 rpm	2200 rpm
Engine Power (Gross)	90 hp	128.5 hp
PTO Power	76.7 hp	113.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dry type with safety element	Dry type air cleaner with safety element
Fuel System	High pressure common rail, electronic fuel control	High-pressure common rail (HPCR), 4-valve
Alternator	OOS: 90 A; Cab: 120 A	120 A, 12 V

Pump Type	Tandem gear pump, two engine-mounted pumps	Tandem gear pump
Implement Flow	15.9 gpm	18.4 gpm
Steering Flow	6.6 gpm	6.3 gpm
Total Hydraulic Flow	22.5 gpm	25.6 gpm
Overall Hydraulic Pump Flow	22.5 gpm	25.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 rear; 0 mid	2 (rear); 2 (mid)
No. of Optional Remote Valves	3 rear; up to 3 mid	Up to 3 total (rear); up to 3 total (mid)

Fuel Tank Capacity	25 gal (open operator station); 30 gal (cab)	43.7 gal (Standard Cab)
Coolant Capacity	2.5 gal (open operator station); 3 gal (cab)	Not Published
Crankcase Capacity	3.2 gal	Not Published
Transmission / Hydraulic System Capacity	11.5 gal	Not Published
Front Axle Fluid Capacity	1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub)	Not Published

PTO Type	Independent, electro-hydraulic engagement, wet PTO clutch	Independent rear PTO, electro-hydraulic clutch
PTO Rear	540/540E standard; 540/1000 optional	540/540E standard; 540/540E/1000 optional
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 2, convertible to Category 1	Category II (convertible to I)
Hitch Lift Capacity	5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range	Not Published
Hitch Lift Capacity (at 24”)	4,630 lb (electrohydraulic hitch)	6,975 lb standard; 7,868 lb optional
Lift Control Type	Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing	Electrohydraulic

Transmission Type	PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional	PowrQuad PLUS 16F/16R or Powr8 32F/16R (cab only)
No. of Speeds	12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo)	16F/16R (PowrQuad PLUS); 32F/16R (Powr8)
Max Travel Speed (Forward)	21.7 mph (electronically limited)	24 mph
Max Travel Speed (Reverse)	21.7 mph (electronically limited)	Not Published
Clutch	Wet	Wet
Differential Lock & Limited Slip Options	Rear differential lock	Electro-hydraulic rear differential lock

Frame Type	Foldable ROPS (open operator station); standard or premium cab; MFWD	Cast iron mid-frame design
Steering	Hydrostatic power steering	Power steering
Brakes	Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage	Hydraulic wet disc brakes, self-equalizing and self-adjusting
Seat Suspension & Adjustability	Mechanical seat standard; air-suspension seat optional for cab	Mechanical-suspension seat, standard; air-suspension seat, optional; heated low-frequency air-suspension seat, optional
Front Axle Type	MFWD	MFWD
Front Axle Rating	6,615 lb	Not Published
Drawbar Capacity	2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended)	3,197 lb

Overall Width	83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires)	Not Published
Wheelbase	92.5 in	92.5 in
Ground Clearance	17 in (front axle)	Not Published
Min. Turn Radius without Brakes	11.6 ft (MFWD)	13.1 ft
Height to Top of ROPS	101.1 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Applicable
Height to Top of Cab Model	102.4 in	Not Published
Overall Length	159.13 in	Not Published

Tractor Weight (Base)	7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight)	9,185 lb
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	18.4-30 R1 bias rear standard; 16.9-30 R1 also listed	R1 Agricultural
R1 Agricultural - Front	12.4-24	12.4R24
R1 Agricultural - Rear	18.4-30 R1 bias	18.4R30
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	12.5/80-18 in, 12PR R4 Bias
R4 Industrial - Rear	Not Published	19.5L-24 in, 10PR R4 Bias

Quick Attach Loader System	Quick attach option with integrated parking stand	Not Published
Loader Model	520M (NSL and MSL); 540M (NSL)	520M (4WD only); 540M (NSL and MSL); 540R (NSL and MSL); 600M (NSL only)
Loader Lift Height	520M MSL: 132.0 in	520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in
Loader Lift Capacity (Full Height)	520M MSL: 2,606 lb (to maximum height, measured at pivot)	520M (4WD): NSL 3,335-3,612 lb, MSL 2,460-2,661 lb; 540M: NSL 2,394-2,666 lb, MSL 3,117-3,309 lb; 540R: 3,406 lb; 600M: NSL 3,104-3,236 lb
Loader Breakout Force	520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point)	Not Published

Warranty Length & Coverage	Powertrain 5 years or 2,000 hours, as sold new	Basic 24 months or 2,000 hours, whole-machine standard agricultural equipment term

Find a John Deere dealer near you

John Deere 5090E vs John Deere 5130M: Quick Answers

Which has more horsepower, the John Deere 5090E or the John Deere 5130M?: The John Deere 5130M leads on engine hp at 128.5 hp hp, compared to 90 hp hp for the John Deere 5090E.
Which has more PTO horsepower, the John Deere 5090E or the John Deere 5130M?: The John Deere 5130M leads on pto hp at 113.3 hp hp, compared to 76.7 hp hp for the John Deere 5090E.
Which is heavier, the John Deere 5090E or the John Deere 5130M?: The John Deere 5130M leads on weight at 9,185 lb lb, compared to 7,275 lb lb for the John Deere 5090E.
Which has more loader lift capacity, the John Deere 5090E or the John Deere 5130M?: The John Deere 5130M leads on loader lift at 3,406 lb lb, compared to 2,606 lb lb for the John Deere 5090E.
Which has more three-point hitch lift capacity, the John Deere 5090E or the John Deere 5130M?: The John Deere 5130M leads on 3-pt lift (24 in) at 6,975 lb lb, compared to 4,630 lb lb for the John Deere 5090E.

Category Verdict

Spec	John Deere 5090E	John Deere 5130M
Engine HP (hp)	90 hp	▲ 128.5 hp
PTO HP (hp)	76.7 hp	▲ 113.3 hp
Weight (lb)	7,275 lb	▲ 9,185 lb
Loader Lift (lb)	2,606 lb	▲ 3,406 lb
3-Pt Lift (24 in) (lb)	4,630 lb	▲ 6,975 lb
Lift Height (in)	132 in	▲ 148.8 in
Breakout Force (lbf)	4,793 lbf	n/a
Hydraulic Flow (gpm)	22.5 gpm	▲ 25.6 gpm
Travel Speed (mph)	21.7 mph	▲ 24 mph

The headline numbers at a glance.

John Deere 5090EJohn Deere 5130M

Engine HPhp

90 hp

▲128.5 hp

PTO HPhp

76.7 hp

▲113.3 hp

Weightlb

7,275 lb

▲9,185 lb

Loader Liftlb

2,606 lb

3,335 lb

2,394 lb

▲3,406 lb

3,104 lb

4WD540M540R600M

3-Pt Lift (24 in)lb

4,630 lb

▲6,975 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5090E	John Deere5130M


Engine Manufacturer	John Deere	John Deere
Engine Model	PowerTech 4045 (4.5L) PWL	PowerTech 4045 EWL
Engine Type	4-cylinder, turbocharged and aftercooled diesel, electronic fuel control	Diesel, turbocharged with intercooler, 4-valve HPCR
No. of Cylinders	4	4
Displacement	276 in³	276 in³
Rated Engine Speed	2400 rpm	2200 rpm
Engine Power (Gross)	90 hp	128.5 hp
PTO Power	76.7 hp	113.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dry type with safety element	Dry type air cleaner with safety element
Fuel System	High pressure common rail, electronic fuel control	High-pressure common rail (HPCR), 4-valve
Alternator	OOS: 90 A; Cab: 120 A	120 A, 12 V

Pump Type	Tandem gear pump, two engine-mounted pumps	Tandem gear pump
Implement Flow	15.9 gpm	18.4 gpm
Steering Flow	6.6 gpm	6.3 gpm
Total Hydraulic Flow	22.5 gpm	25.6 gpm
Overall Hydraulic Pump Flow	22.5 gpm	25.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 rear; 0 mid	2 (rear); 2 (mid)
No. of Optional Remote Valves	3 rear; up to 3 mid	Up to 3 total (rear); up to 3 total (mid)

Fuel Tank Capacity	25 gal (open operator station); 30 gal (cab)	43.7 gal (Standard Cab)
Coolant Capacity	2.5 gal (open operator station); 3 gal (cab)	Not Published
Crankcase Capacity	3.2 gal	Not Published
Transmission / Hydraulic System Capacity	11.5 gal	Not Published
Front Axle Fluid Capacity	1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub)	Not Published

PTO Type	Independent, electro-hydraulic engagement, wet PTO clutch	Independent rear PTO, electro-hydraulic clutch
PTO Rear	540/540E standard; 540/1000 optional	540/540E standard; 540/540E/1000 optional
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 2, convertible to Category 1	Category II (convertible to I)
Hitch Lift Capacity	5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range	Not Published
Hitch Lift Capacity (at 24”)	4,630 lb (electrohydraulic hitch)	6,975 lb standard; 7,868 lb optional
Lift Control Type	Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing	Electrohydraulic

Transmission Type	PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional	PowrQuad PLUS 16F/16R or Powr8 32F/16R (cab only)
No. of Speeds	12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo)	16F/16R (PowrQuad PLUS); 32F/16R (Powr8)
Max Travel Speed (Forward)	21.7 mph (electronically limited)	24 mph
Max Travel Speed (Reverse)	21.7 mph (electronically limited)	Not Published
Clutch	Wet	Wet
Differential Lock & Limited Slip Options	Rear differential lock	Electro-hydraulic rear differential lock

Frame Type	Foldable ROPS (open operator station); standard or premium cab; MFWD	Cast iron mid-frame design
Steering	Hydrostatic power steering	Power steering
Brakes	Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage	Hydraulic wet disc brakes, self-equalizing and self-adjusting
Seat Suspension & Adjustability	Mechanical seat standard; air-suspension seat optional for cab	Mechanical-suspension seat, standard; air-suspension seat, optional; heated low-frequency air-suspension seat, optional
Front Axle Type	MFWD	MFWD
Front Axle Rating	6,615 lb	Not Published
Drawbar Capacity	2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended)	3,197 lb

Overall Width	83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires)	Not Published
Wheelbase	92.5 in	92.5 in
Ground Clearance	17 in (front axle)	Not Published
Min. Turn Radius without Brakes	11.6 ft (MFWD)	13.1 ft
Height to Top of ROPS	101.1 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Applicable
Height to Top of Cab Model	102.4 in	Not Published
Overall Length	159.13 in	Not Published

Tractor Weight (Base)	7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight)	9,185 lb
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	18.4-30 R1 bias rear standard; 16.9-30 R1 also listed	R1 Agricultural
R1 Agricultural - Front	12.4-24	12.4R24
R1 Agricultural - Rear	18.4-30 R1 bias	18.4R30
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	12.5/80-18 in, 12PR R4 Bias
R4 Industrial - Rear	Not Published	19.5L-24 in, 10PR R4 Bias

Quick Attach Loader System	Quick attach option with integrated parking stand	Not Published
Loader Model	520M (NSL and MSL); 540M (NSL)	520M (4WD only); 540M (NSL and MSL); 540R (NSL and MSL); 600M (NSL only)
Loader Lift Height	520M MSL: 132.0 in	520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in
Loader Lift Capacity (Full Height)	520M MSL: 2,606 lb (to maximum height, measured at pivot)	520M (4WD): NSL 3,335-3,612 lb, MSL 2,460-2,661 lb; 540M: NSL 2,394-2,666 lb, MSL 3,117-3,309 lb; 540R: 3,406 lb; 600M: NSL 3,104-3,236 lb
Loader Breakout Force	520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point)	Not Published

Warranty Length & Coverage	Powertrain 5 years or 2,000 hours, as sold new	Basic 24 months or 2,000 hours, whole-machine standard agricultural equipment term

Find a John Deere dealer near you

John Deere 5090E vs John Deere 5130M: Quick Answers

Which has more horsepower, the John Deere 5090E or the John Deere 5130M?

The John Deere 5130M leads on engine hp at 128.5 hp hp, compared to 90 hp hp for the John Deere 5090E.

Which has more PTO horsepower, the John Deere 5090E or the John Deere 5130M?

The John Deere 5130M leads on pto hp at 113.3 hp hp, compared to 76.7 hp hp for the John Deere 5090E.

Which is heavier, the John Deere 5090E or the John Deere 5130M?

The John Deere 5130M leads on weight at 9,185 lb lb, compared to 7,275 lb lb for the John Deere 5090E.

Which has more loader lift capacity, the John Deere 5090E or the John Deere 5130M?

The John Deere 5130M leads on loader lift at 3,406 lb lb, compared to 2,606 lb lb for the John Deere 5090E.

Which has more three-point hitch lift capacity, the John Deere 5090E or the John Deere 5130M?

The John Deere 5130M leads on 3-pt lift (24 in) at 6,975 lb lb, compared to 4,630 lb lb for the John Deere 5090E.

John Deere 5090E vs John Deere 5130M

Category Verdict

Full Spec Sheet

John Deere 5090E vs John Deere 5130M: Quick Answers

More in the resource center

Look up a tractor

Side-by-side comparison

The Netflix of tractor videos

Tractor guides and articles

John Deere 5090E vs John Deere 5130M

Category Verdict

Full Spec Sheet

John Deere 5090E vs John Deere 5130M: Quick Answers
