| Engine Manufacturer | John Deere | Kubota |
|---|
| Engine Model | PowerTech 4045 (4.5L) PWL | V3800CR-TIEF4 |
|---|
| Engine Type | 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control | 4-cylinder, turbocharged and intercooled, common-rail diesel, DPF, DOC and SCR |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 276 in³ | 230 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2600 rpm |
|---|

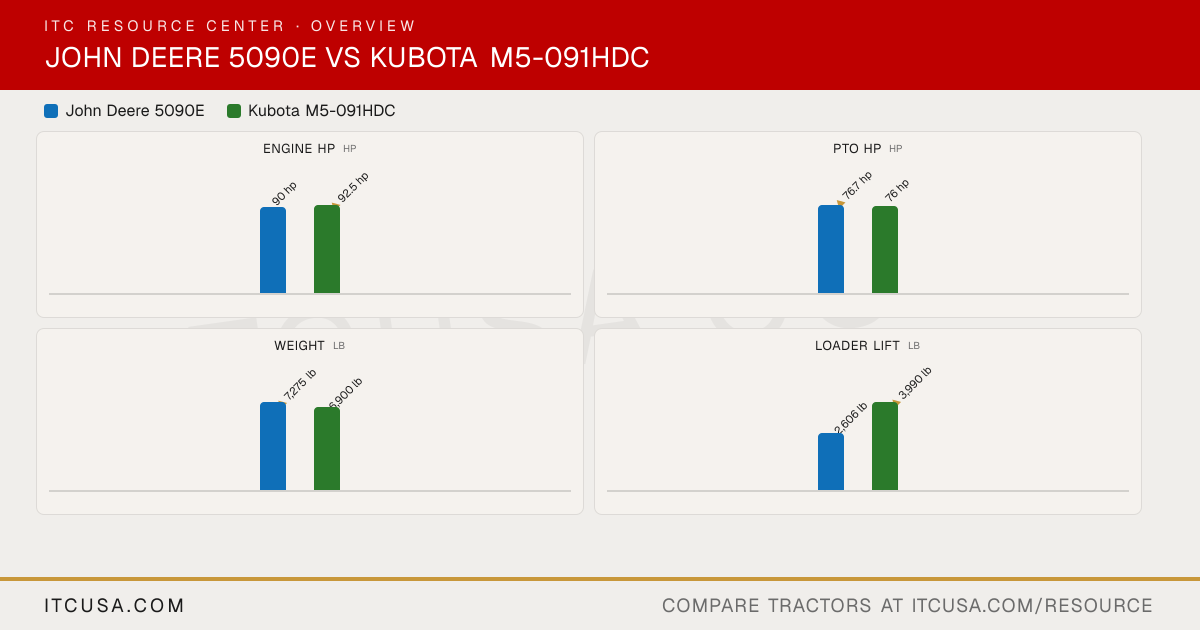

| Engine Power (Gross) | 90 hp | 92.5 hp |
|---|
| PTO Power | 76.7 hp | 76 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry type with safety element | Dry paper, dual element, 8 in diameter, with pre-cleaner |
|---|
| Fuel System | High pressure common rail, electronic fuel control | Common rail direct injection |
|---|
| Alternator | OOS: 90 A; Cab: 120 A | 80 A |
|---|
|
|---|
| Pump Type | Tandem gear pump, two engine-mounted pumps | Gear pump |
|---|
| Implement Flow | 15.9 gpm | 17.0 gpm |
|---|
| Steering Flow | 6.6 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 22.5 gpm | 23.1 gpm |
|---|
| Overall Hydraulic Pump Flow | 22.5 gpm | 23.1 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 17.0 gpm |
|---|
| No. of Standard Remote Valves | 2 rear; 0 mid | 2 standard (3 maximum) |
|---|
| No. of Optional Remote Valves | 3 rear; up to 3 mid | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 25 gal (open operator station); 30 gal (cab) | 27.7 gal |
|---|
| Coolant Capacity | 2.5 gal (open operator station); 3 gal (cab) | 11 qt |
|---|
| Crankcase Capacity | 3.2 gal | 11.3 qt |
|---|
| Transmission / Hydraulic System Capacity | 11.5 gal | 63.4 qt |
|---|
| Front Axle Fluid Capacity | 1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub) | 6.3 qt (differential) plus 3.7 qt (each bevel gear case) |
|---|
|
|---|
| PTO Type | Independent, electro-hydraulic engagement, wet PTO clutch | Live-independent PTO, electro-hydraulic clutch with brake |
|---|
| PTO Rear | 540/540E standard; 540/1000 optional | 540 rpm (540/540E optional) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category 2, convertible to Category 1 | Category II |
|---|
| Hitch Lift Capacity | 5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range | 7,055 lb |
|---|
| Hitch Lift Capacity (at 24”) | 4,630 lb (electrohydraulic hitch) | 4,630 lb |
|---|
| Lift Control Type | Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing | Position, draft (top link sensing) and mixed control |
|---|
|
|---|
| Transmission Type | PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional | Fully synchronized main gear shift with electro-hydraulic shuttle |
|---|
| No. of Speeds | 12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo) | 8 forward, 8 reverse |
|---|
| Max Travel Speed (Forward) | 21.7 mph (electronically limited) | 19.2 mph |
|---|
| Max Travel Speed (Reverse) | 21.7 mph (electronically limited) | Not Published |
|---|
| Clutch | Wet | Multiple wet disc |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock | Front: limited-slip differential; Rear: mechanical differential lock |
|---|
|
|---|
| Frame Type | Foldable ROPS (open operator station); standard or premium cab; MFWD | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Mechanical seat standard; air-suspension seat optional for cab | Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest |
|---|
| Front Axle Type | MFWD | Bevel gear type with 55 degree turning angle (4WD) |
|---|
| Front Axle Rating | 6,615 lb | 5,730 lb |
|---|
| Drawbar Capacity | 2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended) | 3,300 lb |
|---|
|
|---|
| Overall Width | 83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires) | 78.3 in |
|---|
| Wheelbase | 92.5 in | 88.6 in |
|---|
| Ground Clearance | 17 in (front axle) | 17.7 in (minimum, drawbar bracket) |
|---|
| Min. Turn Radius without Brakes | 11.6 ft (MFWD) | 13.8 ft |
|---|
| Height to Top of ROPS | 101.1 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 102.4 in | 100.2 in |
|---|
| Overall Length | 159.13 in | 155.9 in |
|---|
|
|---|
| Tractor Weight (Base) | 7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight) | 6,900 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4-30 R1 bias rear standard; 16.9-30 R1 also listed | Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 |
|---|
| R1 Agricultural - Front | 12.4-24 | 11.2-24 |
|---|
| R1 Agricultural - Rear | 18.4-30 R1 bias | 18.4-30 |
|---|
| R3 Turf - Front | Not Published | 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) |
|---|
| R3 Turf - Rear | Not Published | 18.4-26 R3 or 19.5L-24 R3 |
|---|
| R4 Industrial - Front | Not Published | 9.5L-15 F2 (rib front paired with the R4 rear) |
|---|
| R4 Industrial - Rear | Not Published | 19.5L-24 R4 |
|---|
|
|---|
| Quick Attach Loader System | Quick attach option with integrated parking stand | Quick coupler, standard; Euro-type quick coupler, optional; tool-free attach and detach; single-lever hydraulic hose coupler, optional |
|---|
| Loader Model | 520M (NSL and MSL); 540M (NSL) | LA1854 |
|---|
| Loader Lift Height | 520M MSL: 132.0 in | 145.7 in (height position); 131.9 in (power position) |
|---|
| Loader Lift Capacity (Full Height) | 520M MSL: 2,606 lb (to maximum height, measured at pivot) | 3,990 lb (height position); 4,144 lb (power position) |
|---|
| Loader Breakout Force | 520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point) | LA1854: 5,501 lb at bucket pivot pin (height position); 6,470 lb at bucket pivot pin (power position) |
|---|
|
|---|
| Warranty Length & Coverage | Powertrain 5 years or 2,000 hours, as sold new | Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours |
|---|
