| Engine Manufacturer | John Deere | FPT |
|---|
| Engine Model | PowerTech 4045 (4.5L) PWL | F36 |
|---|
| Engine Type | 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control | 4-cylinder |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 276 in³ | Not Published |
|---|
| Rated Engine Speed | 2400 rpm | Not Published |
|---|

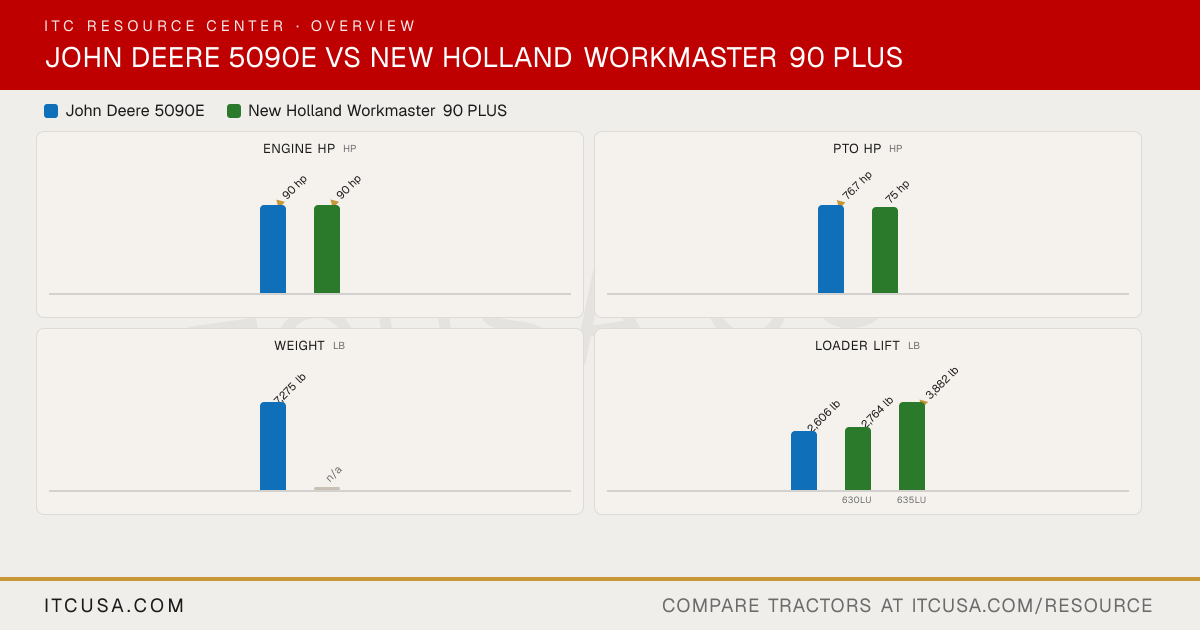

| Engine Power (Gross) | 90 hp | 90 hp |
|---|
| PTO Power | 76.7 hp | 75 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Dry type with safety element | Not Published |
|---|
| Fuel System | High pressure common rail, electronic fuel control | Not Published |
|---|
| Alternator | OOS: 90 A; Cab: 120 A | Not Published |
|---|
|
|---|
| Pump Type | Tandem gear pump, two engine-mounted pumps | Not Published |
|---|
| Implement Flow | 15.9 gpm | Not Published |
|---|
| Steering Flow | 6.6 gpm | Not Published |
|---|
| Total Hydraulic Flow | 22.5 gpm | 26.6 gpm |
|---|
| Overall Hydraulic Pump Flow | 22.5 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 rear; 0 mid | Not Published |
|---|
| No. of Optional Remote Valves | 3 rear; up to 3 mid | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 25 gal (open operator station); 30 gal (cab) | 34.3 gal |
|---|
| Coolant Capacity | 2.5 gal (open operator station); 3 gal (cab) | Not Published |
|---|
| Crankcase Capacity | 3.2 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 11.5 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub) | Not Published |
|---|
|
|---|
| PTO Type | Independent, electro-hydraulic engagement, wet PTO clutch | Not Published |
|---|
| PTO Rear | 540/540E standard; 540/1000 optional | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category 2, convertible to Category 1 | Not Published |
|---|
| Hitch Lift Capacity | 5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,630 lb (electrohydraulic hitch) | Not Published |
|---|
| Lift Control Type | Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing | Not Published |
|---|
|
|---|
| Transmission Type | PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional | 12x12 electronic power shuttle |
|---|
| No. of Speeds | 12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo) | 12 forward / 12 reverse |
|---|
| Max Travel Speed (Forward) | 21.7 mph (electronically limited) | Not Published |
|---|
| Max Travel Speed (Reverse) | 21.7 mph (electronically limited) | Not Published |
|---|
| Clutch | Wet | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock | Not Published |
|---|
|
|---|
| Frame Type | Foldable ROPS (open operator station); standard or premium cab; MFWD | Not Published |
|---|
| Steering | Hydrostatic power steering | Not Published |
|---|
| Brakes | Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage | Not Published |
|---|
| Seat Suspension & Adjustability | Mechanical seat standard; air-suspension seat optional for cab | Air ride seat (standard); instructor seat available |
|---|
| Front Axle Type | MFWD | Class 1.0 HD heavy-duty front axle |
|---|
| Front Axle Rating | 6,615 lb | Not Published |
|---|
| Drawbar Capacity | 2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended) | Not Published |
|---|
|
|---|
| Overall Width | 83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires) | Not Published |
|---|
| Wheelbase | 92.5 in | Not Published |
|---|
| Ground Clearance | 17 in (front axle) | Not Published |
|---|
| Min. Turn Radius without Brakes | 11.6 ft (MFWD) | Not Published |
|---|
| Height to Top of ROPS | 101.1 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 102.4 in | Not Published |
|---|
| Overall Length | 159.13 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight) | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 18.4-30 R1 bias rear standard; 16.9-30 R1 also listed | Not Published |
|---|
| R1 Agricultural - Front | 12.4-24 | Not Published |
|---|
| R1 Agricultural - Rear | 18.4-30 R1 bias | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Quick attach option with integrated parking stand | Not Published |
|---|
| Loader Model | 520M (NSL and MSL); 540M (NSL) | 630LU; 635LU |
|---|
| Loader Lift Height | 520M MSL: 132.0 in | 143.9 in (630LU and 635LU) |
|---|
| Loader Lift Capacity (Full Height) | 520M MSL: 2,606 lb (to maximum height, measured at pivot) | 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, at 31.5 in) |
|---|
| Loader Breakout Force | 520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Powertrain 5 years or 2,000 hours, as sold new | Not Published |
|---|
