John Deere 5090R vs John Deere 5115M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the John Deere 5115M leads 5 categories to 4. Machine pages: John Deere 5090R and John Deere 5115M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5090R	John Deere 5115M
Engine HP (hp)	90 hp	▲ 113.9 hp
PTO HP (hp)	75 hp	▲ 100 hp
Weight (lb)	▲ 9,811 lb	8,765 lb
Loader Lift (lb)	4,246 lb	▲ 4,644 lb
3-Pt Lift (24 in) (lb)	▲ 6,975 lb	5,159 lb
Lift Height (in)	141.5 in	▲ 149 in
Breakout Force (lbf)	4,945 lbf	▲ 6,767 lbf
Hydraulic Flow (gpm)	▲ 25.6 gpm	24.7 gpm
Travel Speed (mph)	▲ 22 mph	21.7 mph

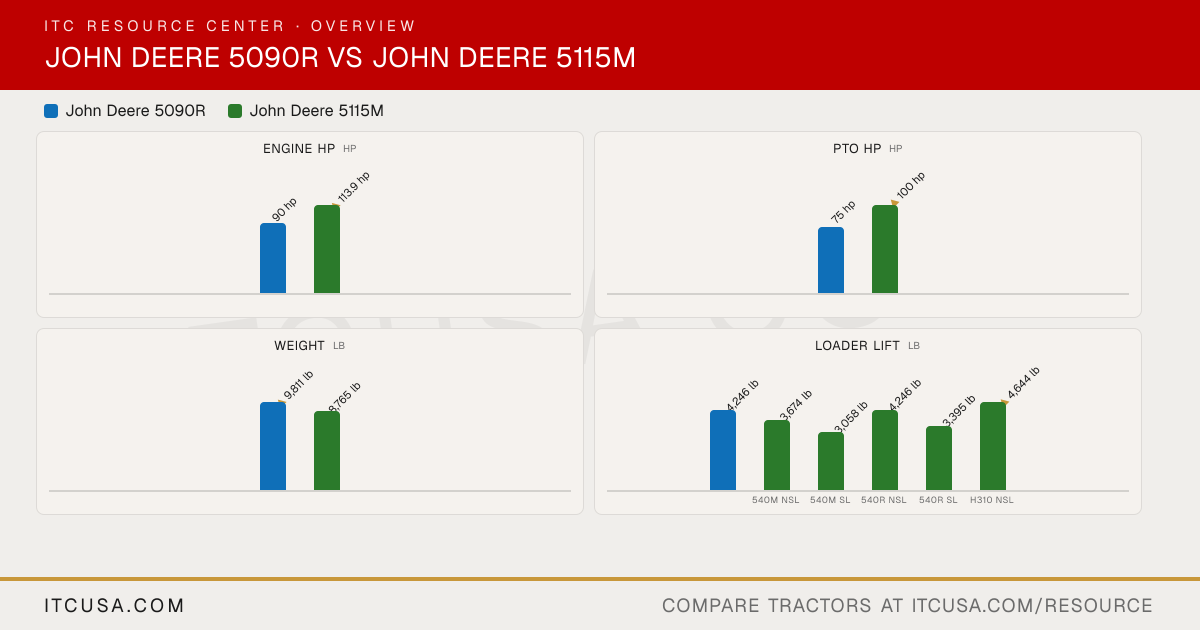

The headline numbers at a glance.

John Deere 5090RJohn Deere 5115M

Engine HPhp

90 hp

▲113.9 hp

PTO HPhp

75 hp

▲100 hp

Weightlb

▲9,811 lb

8,765 lb

Loader Liftlb

4,246 lb

3,674 lb

3,058 lb

4,246 lb

3,395 lb

▲4,644 lb

540M NSL540M SL540R NSL540R SLH310 NSL

3-Pt Lift (24 in)lb

▲6,975 lb

5,159 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5090R	John Deere5115M


Engine Manufacturer	John Deere	John Deere
Engine Model	John Deere PowerTech 4.5L diesel	PowerTech 4045 PWL
Engine Type	4-cylinder, turbocharged and intercooled diesel, 4-valve high pressure common rail	Diesel, turbocharged, air-to-air aftercooled
No. of Cylinders	4	4
Displacement	276 in³	276 in³
Rated Engine Speed	2200 rpm	2200 rpm
Engine Power (Gross)	90 hp	113.9 hp
PTO Power	75 hp @ 100 rpm	100 hp @ 100 rpm
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled (Cool-Gard II coolant)
Air Cleaner	Dry type with safety element	Dry air cleaner, primary and secondary elements
Fuel System	High pressure common rail, 4 valve, electronic fuel control	High pressure common rail (HPCR); electronic fuel control
Alternator	200 A	OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V

Pump Type	Tandem gear pump (open center); variable axial-piston implement pump (PFC, optional)	Tandem gear pump
Implement Flow	19.3 gpm (open center); 30.9 gpm (PFC)	18.4 gpm
Steering Flow	6.3 gpm (open center)	6.3 gpm
Total Hydraulic Flow	25.6 gpm (open center)	24.7 gpm
Overall Hydraulic Pump Flow	25.6 gpm (open center); 30.9 gpm (PFC)	24.7 gpm
Hydraulic System Type	Open center (standard); closed center PFC (optional)	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 rear and 2 mid (stackable)	2 (rear, Dual SCV)
No. of Optional Remote Valves	Rear: 3 (mechanical or proportional EH, optional; 4th rear by conversion kit); Mid: 3 Deluxe (mechanical or EH, optional)	3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions

Fuel Tank Capacity	38 gal	OOS: 37.2 gal; Cab: 44.9 gal
Coolant Capacity	4.25 gal	OOS: 5.2 gal; Cab: 5.8 gal
Crankcase Capacity	3.1 gal	3.4 gal
Transmission / Hydraulic System Capacity	11.75 gal (open center); 12.5 gal (closed center PFC)	10.4 gal
Front Axle Fluid Capacity	1.3 gal (MFWD differential housing); 0.2 gal (each wheel hub)	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal

PTO Type	Independent, electro-hydraulic engagement, wet PTO clutch, reversible 540/1000 shaft	Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional
PTO Rear	540/540E/1000 rpm	540/540E rpm standard; 1000 rpm optional
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II (telescoping draft links with Category II balls)	Category II (convertible to I)
Hitch Lift Capacity	7,158 lb; 8,157 lb throughout lift range at hitch ball; 11,122 lb / 12,515 lb maximum	5,305 lb standard; 6,114 lb optional
Hitch Lift Capacity (at 24”)	6,975 lb; 7,868 lb throughout lift range	5,159 lb standard; 5,954 lb optional
Lift Control Type	Electro-hydraulic hitch with fender controls, lower-link draft sensing	Mechanical or electrohydraulic; lower-link draft sensing

Transmission Type	CommandQuad 16F/16R manual with electronic range and gear shifting, AutoClutch and wet traction clutch (standard); CommandQuad 16F/16R Auto, CommandQuad 16F/16R manual with creeper, or Command8 32F/16R (optional)	PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered
No. of Speeds	16F/16R (CommandQuad, standard); 32F/16R (Command8, optional)	16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8)
Max Travel Speed (Forward)	22.0 mph (D4, 16/16 transmission, 480/70R28 rear tires)	16F/16R PowrReverser, top gear (D-4), 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm)
Max Travel Speed (Reverse)	18.6 mph	16F/16R PowrReverser, top gear (D-4), 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm)
Clutch	Wet traction clutch with AutoClutch	Wet
Differential Lock & Limited Slip Options	Electro-hydraulic differential lock	Electro-hydraulic rear differential lock, engage on the go

Frame Type	Cab standard with air conditioning; mechanical front-wheel drive (MFWD)	Cast iron mid-frame
Steering	Hydrostatic power steering	Not Published
Brakes	Hydraulic wet disc, self-equalizing and self-adjusting, lockable turning brakes; electronic park brake	Not Published
Seat Suspension & Adjustability	Not Published	OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb
Front Axle Type	MFWD, electro-hydraulic engagement, planetary final drives	MFWD
Front Axle Rating	7,937 lb (MFWD closed center); 7,055 lb (MFWD open center)	6,613 lb (MFWD, max permissible front axle load)
Drawbar Capacity	2,756 lb (standard drawbar, 9.8 in extended); 2,205 lb (standard, 13.8 in extended); 3,197 lb (heavy duty, 9.8 in extended); 2,646 lb (heavy duty, 13.8 in extended)	Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb

Overall Width	87 in (with fender extension); 74 in (without fender extension); 66.9 in (narrow cab, without fender extension)	Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
Wheelbase	88.6 in	92.5 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	102.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	106.1 in	102.9 in
Overall Length	147.8 in	149.5 in

Tractor Weight (Base)	9,811 lb (base machine weight, with all fluids)	MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights; 2WD not offered)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	320/85R24 (12.4R24) R1-W radial front and 460/85R30 (18.4R30) R1-W radial rear standard; optional 11.2R28/13.6R38, 380/70R20/480/70R28, 13.6R24/16.9R34, 380/70R24/480/70R34 R1; R3 44x18-20/23.1-26; R4 12.5/80-18/19.5L-24	Not Published
R1 Agricultural - Front	320/85R24 (12.4R24) R1-W radial	12.4R24 (320/85R24) R1W Radial
R1 Agricultural - Rear	460/85R30 (18.4R30) R1-W radial	18.4R30 (460/85R30) R1W Radial
R3 Turf - Front	44x18-20	Not Published
R3 Turf - Rear	23.1-26	Not Published
R4 Industrial - Front	12.5/80-18	Not Published
R4 Industrial - Rear	19.5L-24	Not Published

Quick Attach Loader System	Global carrier in base; John Deere 500-style carrier optional (540R)	Not Published
Loader Model	540R (non self-leveling and mechanical self-leveling)	540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310)
Loader Lift Height	540R: 141.5 in	540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in
Loader Lift Capacity (Full Height)	540R NSL: 4,246 lb (measured at pivot)	540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot)
Loader Breakout Force	540R NSL: 4,945 lbf (measured at pivot)	540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot)

Warranty Length & Coverage	Not Published	Not Published

Find a John Deere dealer near you

John Deere 5090R vs John Deere 5115M: Quick Answers

Which has more horsepower, the John Deere 5090R or the John Deere 5115M?: The John Deere 5115M leads on engine hp at 113.9 hp hp, compared to 90 hp hp for the John Deere 5090R.
Which has more PTO horsepower, the John Deere 5090R or the John Deere 5115M?: The John Deere 5115M leads on pto hp at 100 hp hp, compared to 75 hp hp for the John Deere 5090R.
Which is heavier, the John Deere 5090R or the John Deere 5115M?: The John Deere 5090R leads on weight at 9,811 lb lb, compared to 8,765 lb lb for the John Deere 5115M.
Which has more loader lift capacity, the John Deere 5090R or the John Deere 5115M?: The John Deere 5115M leads on loader lift at 4,644 lb lb, compared to 4,246 lb lb for the John Deere 5090R.
Which has more three-point hitch lift capacity, the John Deere 5090R or the John Deere 5115M?: The John Deere 5090R leads on 3-pt lift (24 in) at 6,975 lb lb, compared to 5,159 lb lb for the John Deere 5115M.

Category Verdict

Spec	John Deere 5090R	John Deere 5115M
Engine HP (hp)	90 hp	▲ 113.9 hp
PTO HP (hp)	75 hp	▲ 100 hp
Weight (lb)	▲ 9,811 lb	8,765 lb
Loader Lift (lb)	4,246 lb	▲ 4,644 lb
3-Pt Lift (24 in) (lb)	▲ 6,975 lb	5,159 lb
Lift Height (in)	141.5 in	▲ 149 in
Breakout Force (lbf)	4,945 lbf	▲ 6,767 lbf
Hydraulic Flow (gpm)	▲ 25.6 gpm	24.7 gpm
Travel Speed (mph)	▲ 22 mph	21.7 mph

The headline numbers at a glance.

John Deere 5090RJohn Deere 5115M

Engine HPhp

90 hp

▲113.9 hp

PTO HPhp

75 hp

▲100 hp

Weightlb

▲9,811 lb

8,765 lb

Loader Liftlb

4,246 lb

3,674 lb

3,058 lb

4,246 lb

3,395 lb

▲4,644 lb

540M NSL540M SL540R NSL540R SLH310 NSL

3-Pt Lift (24 in)lb

▲6,975 lb

5,159 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5090R	John Deere5115M


Engine Manufacturer	John Deere	John Deere
Engine Model	John Deere PowerTech 4.5L diesel	PowerTech 4045 PWL
Engine Type	4-cylinder, turbocharged and intercooled diesel, 4-valve high pressure common rail	Diesel, turbocharged, air-to-air aftercooled
No. of Cylinders	4	4
Displacement	276 in³	276 in³
Rated Engine Speed	2200 rpm	2200 rpm
Engine Power (Gross)	90 hp	113.9 hp
PTO Power	75 hp @ 100 rpm	100 hp @ 100 rpm
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled (Cool-Gard II coolant)
Air Cleaner	Dry type with safety element	Dry air cleaner, primary and secondary elements
Fuel System	High pressure common rail, 4 valve, electronic fuel control	High pressure common rail (HPCR); electronic fuel control
Alternator	200 A	OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V

Pump Type	Tandem gear pump (open center); variable axial-piston implement pump (PFC, optional)	Tandem gear pump
Implement Flow	19.3 gpm (open center); 30.9 gpm (PFC)	18.4 gpm
Steering Flow	6.3 gpm (open center)	6.3 gpm
Total Hydraulic Flow	25.6 gpm (open center)	24.7 gpm
Overall Hydraulic Pump Flow	25.6 gpm (open center); 30.9 gpm (PFC)	24.7 gpm
Hydraulic System Type	Open center (standard); closed center PFC (optional)	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 rear and 2 mid (stackable)	2 (rear, Dual SCV)
No. of Optional Remote Valves	Rear: 3 (mechanical or proportional EH, optional; 4th rear by conversion kit); Mid: 3 Deluxe (mechanical or EH, optional)	3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions

Fuel Tank Capacity	38 gal	OOS: 37.2 gal; Cab: 44.9 gal
Coolant Capacity	4.25 gal	OOS: 5.2 gal; Cab: 5.8 gal
Crankcase Capacity	3.1 gal	3.4 gal
Transmission / Hydraulic System Capacity	11.75 gal (open center); 12.5 gal (closed center PFC)	10.4 gal
Front Axle Fluid Capacity	1.3 gal (MFWD differential housing); 0.2 gal (each wheel hub)	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal

PTO Type	Independent, electro-hydraulic engagement, wet PTO clutch, reversible 540/1000 shaft	Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional
PTO Rear	540/540E/1000 rpm	540/540E rpm standard; 1000 rpm optional
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II (telescoping draft links with Category II balls)	Category II (convertible to I)
Hitch Lift Capacity	7,158 lb; 8,157 lb throughout lift range at hitch ball; 11,122 lb / 12,515 lb maximum	5,305 lb standard; 6,114 lb optional
Hitch Lift Capacity (at 24”)	6,975 lb; 7,868 lb throughout lift range	5,159 lb standard; 5,954 lb optional
Lift Control Type	Electro-hydraulic hitch with fender controls, lower-link draft sensing	Mechanical or electrohydraulic; lower-link draft sensing

Transmission Type	CommandQuad 16F/16R manual with electronic range and gear shifting, AutoClutch and wet traction clutch (standard); CommandQuad 16F/16R Auto, CommandQuad 16F/16R manual with creeper, or Command8 32F/16R (optional)	PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered
No. of Speeds	16F/16R (CommandQuad, standard); 32F/16R (Command8, optional)	16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8)
Max Travel Speed (Forward)	22.0 mph (D4, 16/16 transmission, 480/70R28 rear tires)	16F/16R PowrReverser, top gear (D-4), 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm)
Max Travel Speed (Reverse)	18.6 mph	16F/16R PowrReverser, top gear (D-4), 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm)
Clutch	Wet traction clutch with AutoClutch	Wet
Differential Lock & Limited Slip Options	Electro-hydraulic differential lock	Electro-hydraulic rear differential lock, engage on the go

Frame Type	Cab standard with air conditioning; mechanical front-wheel drive (MFWD)	Cast iron mid-frame
Steering	Hydrostatic power steering	Not Published
Brakes	Hydraulic wet disc, self-equalizing and self-adjusting, lockable turning brakes; electronic park brake	Not Published
Seat Suspension & Adjustability	Not Published	OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb
Front Axle Type	MFWD, electro-hydraulic engagement, planetary final drives	MFWD
Front Axle Rating	7,937 lb (MFWD closed center); 7,055 lb (MFWD open center)	6,613 lb (MFWD, max permissible front axle load)
Drawbar Capacity	2,756 lb (standard drawbar, 9.8 in extended); 2,205 lb (standard, 13.8 in extended); 3,197 lb (heavy duty, 9.8 in extended); 2,646 lb (heavy duty, 13.8 in extended)	Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb

Overall Width	87 in (with fender extension); 74 in (without fender extension); 66.9 in (narrow cab, without fender extension)	Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
Wheelbase	88.6 in	92.5 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	102.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	106.1 in	102.9 in
Overall Length	147.8 in	149.5 in

Tractor Weight (Base)	9,811 lb (base machine weight, with all fluids)	MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights; 2WD not offered)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	320/85R24 (12.4R24) R1-W radial front and 460/85R30 (18.4R30) R1-W radial rear standard; optional 11.2R28/13.6R38, 380/70R20/480/70R28, 13.6R24/16.9R34, 380/70R24/480/70R34 R1; R3 44x18-20/23.1-26; R4 12.5/80-18/19.5L-24	Not Published
R1 Agricultural - Front	320/85R24 (12.4R24) R1-W radial	12.4R24 (320/85R24) R1W Radial
R1 Agricultural - Rear	460/85R30 (18.4R30) R1-W radial	18.4R30 (460/85R30) R1W Radial
R3 Turf - Front	44x18-20	Not Published
R3 Turf - Rear	23.1-26	Not Published
R4 Industrial - Front	12.5/80-18	Not Published
R4 Industrial - Rear	19.5L-24	Not Published

Quick Attach Loader System	Global carrier in base; John Deere 500-style carrier optional (540R)	Not Published
Loader Model	540R (non self-leveling and mechanical self-leveling)	540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310)
Loader Lift Height	540R: 141.5 in	540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in
Loader Lift Capacity (Full Height)	540R NSL: 4,246 lb (measured at pivot)	540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot)
Loader Breakout Force	540R NSL: 4,945 lbf (measured at pivot)	540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot)

Warranty Length & Coverage	Not Published	Not Published

Find a John Deere dealer near you

John Deere 5090R vs John Deere 5115M: Quick Answers

Which has more horsepower, the John Deere 5090R or the John Deere 5115M?

The John Deere 5115M leads on engine hp at 113.9 hp hp, compared to 90 hp hp for the John Deere 5090R.

Which has more PTO horsepower, the John Deere 5090R or the John Deere 5115M?

The John Deere 5115M leads on pto hp at 100 hp hp, compared to 75 hp hp for the John Deere 5090R.

Which is heavier, the John Deere 5090R or the John Deere 5115M?

The John Deere 5090R leads on weight at 9,811 lb lb, compared to 8,765 lb lb for the John Deere 5115M.

Which has more loader lift capacity, the John Deere 5090R or the John Deere 5115M?

The John Deere 5115M leads on loader lift at 4,644 lb lb, compared to 4,246 lb lb for the John Deere 5090R.

Which has more three-point hitch lift capacity, the John Deere 5090R or the John Deere 5115M?

The John Deere 5090R leads on 3-pt lift (24 in) at 6,975 lb lb, compared to 5,159 lb lb for the John Deere 5115M.

John Deere 5090R vs John Deere 5115M

Category Verdict

Full Spec Sheet

John Deere 5090R vs John Deere 5115M: Quick Answers

More in the resource center

Look up a tractor

Side-by-side comparison

The Netflix of tractor videos

Tractor guides and articles

John Deere 5090R vs John Deere 5115M

Category Verdict

Full Spec Sheet

John Deere 5090R vs John Deere 5115M: Quick Answers
