John Deere 5100E vs John Deere 5130M
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the John Deere 5130M leads 7 categories to 1. Machine pages: John Deere 5100E and John Deere 5130M.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

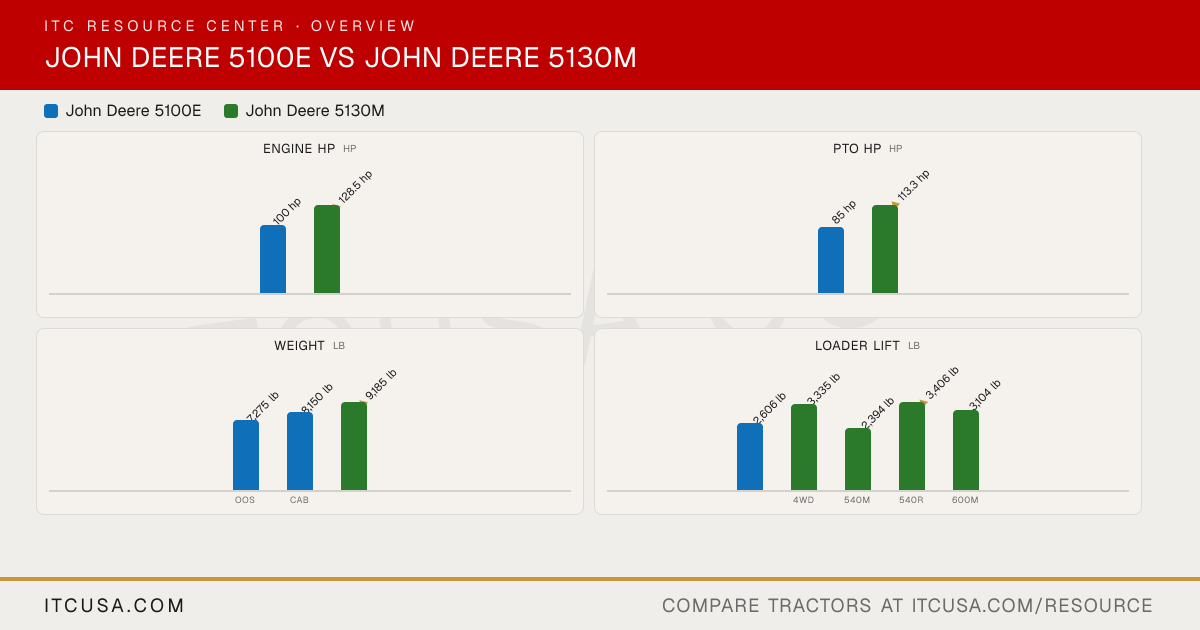

Category Verdict
| Spec | John Deere 5100E | John Deere 5130M |
|---|---|---|
| Engine HP (hp) | 100 hp | ▲ 128.5 hp |
| PTO HP (hp) | 85 hp | ▲ 113.3 hp |
| Weight (lb) | 8,150 lb | ▲ 9,185 lb |
| Loader Lift (lb) | 2,606 lb | ▲ 3,406 lb |
| 3-Pt Lift (24 in) (lb) | 4,630 lb | ▲ 6,975 lb |
| Lift Height (in) | 132 in | ▲ 148.8 in |
| Breakout Force (lbf) | 4,793 lbf | n/a |
| Hydraulic Flow (gpm) | 22.5 gpm | ▲ 25.6 gpm |
| Travel Speed (mph) | ▲ 24.9 mph | 24 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere5100E | John Deere5130M |
|---|
| Engine Manufacturer | John Deere | John Deere |
|---|---|---|
| Engine Model | PowerTech PWL 4045 | PowerTech 4045 EWL |
| Engine Type | Diesel, turbocharged, aftercooled | Diesel, turbocharged with intercooler, 4-valve HPCR |
| No. of Cylinders | 4 | 4 |
| Displacement | 276 in³ | 276 in³ |
| Rated Engine Speed | 2400 rpm | 2200 rpm |
| Engine Power (Gross) | 100 hp | 128.5 hp |
| PTO Power | 85 hp | 113.3 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Not Published |
| Air Cleaner | Dry type with safety element | Dry type air cleaner with safety element |
| Fuel System | High Pressure Common Rail | High-pressure common rail (HPCR), 4-valve |
| Alternator | OOS: 90 A; Cab: 120 A | 120 A, 12 V |
John Deere 5100E vs John Deere 5130M: Quick Answers
- Which has more horsepower, the John Deere 5100E or the John Deere 5130M?
- The John Deere 5130M leads on engine hp at 128.5 hp hp, compared to 100 hp hp for the John Deere 5100E.
- Which has more PTO horsepower, the John Deere 5100E or the John Deere 5130M?
- The John Deere 5130M leads on pto hp at 113.3 hp hp, compared to 85 hp hp for the John Deere 5100E.
- Which is heavier, the John Deere 5100E or the John Deere 5130M?
- The John Deere 5130M leads on weight at 9,185 lb lb, compared to 8,150 lb lb for the John Deere 5100E.
- Which has more loader lift capacity, the John Deere 5100E or the John Deere 5130M?
- The John Deere 5130M leads on loader lift at 3,406 lb lb, compared to 2,606 lb lb for the John Deere 5100E.
- Which has more three-point hitch lift capacity, the John Deere 5100E or the John Deere 5130M?
- The John Deere 5130M leads on 3-pt lift (24 in) at 6,975 lb lb, compared to 4,630 lb lb for the John Deere 5100E.
