Across 0 measurable specs, this matchup is a dead heat: 0 categories to the John Deere 5100E, 0 to the LS Tractor MT573. Machine pages: John Deere 5100E and LS Tractor MT573 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec John Deere 5100E LS Tractor MT573 Engine HP (hp) — 73 hp PTO HP (hp) — 62 hp Weight (lb) — 7,901 lb Loader Lift (lb) — 3,364 lb 3-Pt Lift (24 in) (lb) — 4,718 lb Lift Height (in) — 126.5 in Breakout Force (lbf) — 4,644 lbf Hydraulic Flow (gpm) — 19.8 gpm Travel Speed (mph) — 19.4 mph

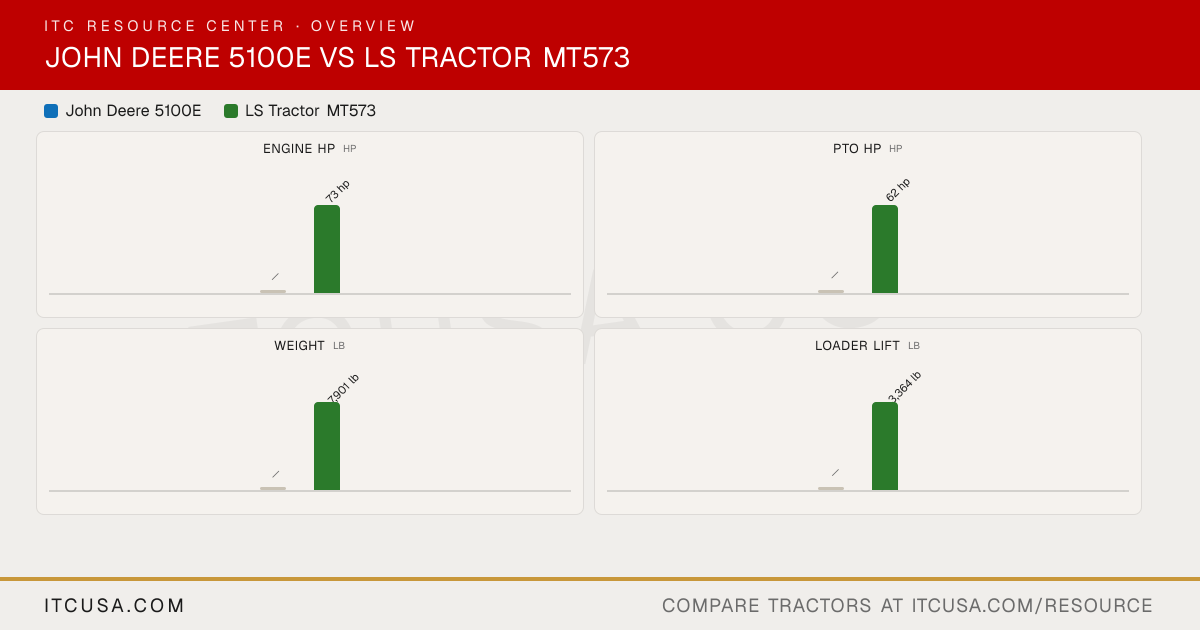

Overview Loader Work PTO Work
The headline numbers at a glance.
John Deere 5100E LS Tractor MT573
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec John Deere 5100E LS Tractor MT573
▶ EnginePTO Power — 62 hp Alternator — 70 A, 12 V Air Cleaner — Dry Engine Type — In-line vertical, water cooled 4-cycle diesel, CRDI Fuel System — Delphi, CRDI Displacement — 152.9 in³ No. of Cylinders — 4 Rated Engine Speed — 2500 rpm Cooling System Type — Water-cooled Engine Manufacturer — LS Mtron Engine Power (Gross) — 73 hp Engine Emissions Constraints — EPA Tier 4F ▶ WeightWeight with ROPS and Loader — Not Applicable Weight with Cab and Loader — 7,901 lb ▶ WarrantyWarranty Length & Coverage — 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty ▶ HydraulicsPump Type — Gear type, engine drive Steering Flow — 6.6 gpm Implement Flow — 13.2 gpm Total Hydraulic Flow — 19.8 gpm Hydraulic System Type — Open center Rear Remote Hydraulic Flow — Not Published Overall Hydraulic Pump Flow — 19.8 gpm No. of Optional Remote Valves — Not Published No. of Standard Remote Valves — 3 Pairs (Front), 3 Pairs (Rear) ▶ PTO & HitchPTO Rear — 540 / 750 / 1,000 PTO Type — Independent Lift Control Type — Position & Draft Hitch Lift Capacity — 6,614 lbs Mid-PTO Availability — Not Published Category, 3-Point Hitch — Category II Hitch Lift Capacity (at 24”) — 4,718 lbs ▶ Tire OptionsR3 Turf - Rear — Not Published R3 Turf - Front — Not Published Tire Size & Options — Multiple options available (Ag, R14) R4 Industrial - Rear — Not Published R4 Industrial - Front — Not Published R1 Agricultural - Rear — 16.9-30 R1 Agricultural - Front — 11.2-24 ▶ Fluid CapacityCoolant Capacity — 2.6 gal Crankcase Capacity — 2.1 gal Fuel Tank Capacity — 26.4 gal Front Axle Fluid Capacity — 1.5 gal Transmission / Hydraulic System Capacity — 14.5 gal ▶ Loader & AttachmentsLoader Lift Height — 126.5 in Loader Breakout Force — 4,644 lb Quick Attach Loader System — LL6100: ISO 24410 “Quick Attachment” (Bobcat-type / skid-steer style; lever-lock with latch pins) Loader Lift Capacity (Full Height) — 3,364 lb ▶ Transmission & DrivetrainClutch — Wet clutch disks No. of Speeds — F20 x R20 Transmission Type — Power Shuttle Max Travel Speed (Forward) — 19.4 mph Max Travel Speed (Reverse) — Not Published Differential Lock & Limited Slip Options — Electro-hydraulic differential lock (EHD) ▶ Chassis, Steering & ControlsBrakes — Not Published Steering — Hydrostatic Frame Type — Not Published Front Axle Type — Not Published Drawbar Capacity — Not Published Front Axle Rating — Not Published Seat Suspension & Adjustability — Air suspension seat (10° swivel) ▶ Dimensions & ManeuverabilityWheelbase — 84.6 in Overall Width — 74.4 in Ground Clearance — Not Published Height to Top of ROPS — Not Applicable Height to Top of Cab Model — 104.4 in Height to Top of ROPS (folded) — Not Applicable Min. Turn Radius without Brakes — 13.0 ft (4.0 m) Overall Length with 3-Point Hitch — 166.7 in
