| Engine Manufacturer | John Deere | AGCO Power |
|---|
| Engine Model | PowerTech 4045 PWL | 44 AWFC |
|---|
| Engine Type | Diesel, turbocharged, air-to-air aftercooled | 4-cylinder, intercooled turbocharged, liquid-cooled diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 276 in³ | 268.5 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2200 rpm |
|---|

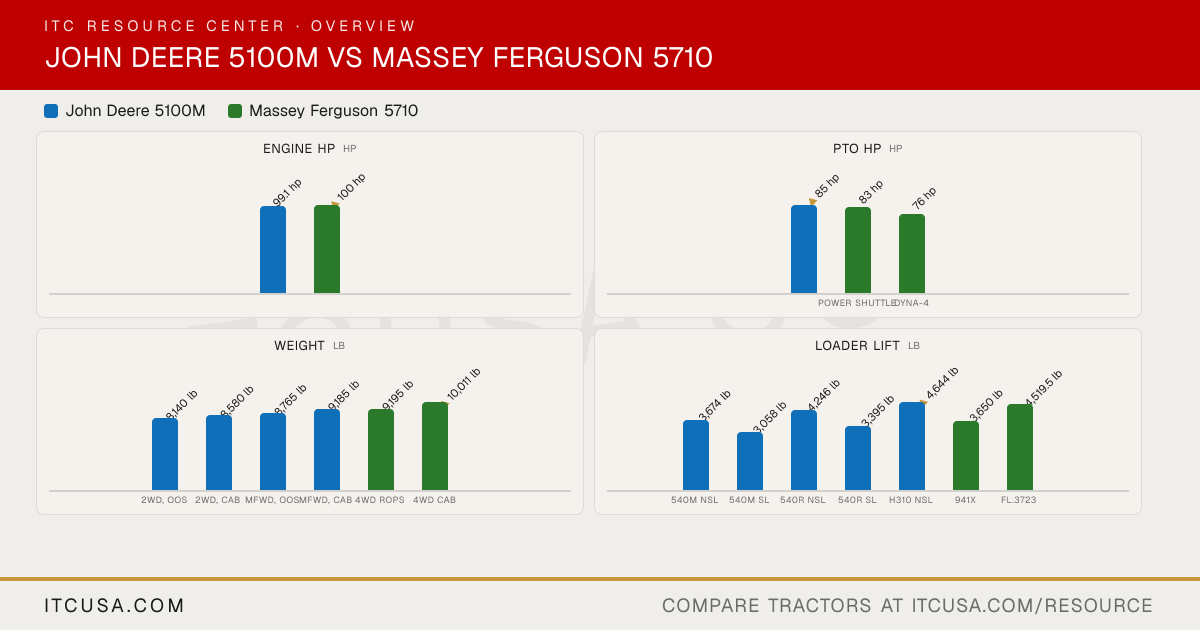

| Engine Power (Gross) | 99.1 hp | 100 hp |
|---|
| PTO Power | 85 hp @ 100 rpm | Power Shuttle: 83 hp; Dyna-4: 76 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled (Cool-Gard II coolant) | Liquid cooled |
|---|
| Air Cleaner | Dry air cleaner, primary and secondary elements | Not Published |
|---|
| Fuel System | High pressure common rail (HPCR); electronic fuel control | High-pressure common-rail direct injection (HPCR) |
|---|
| Alternator | OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V | 80 A, 12 V |
|---|
|
|---|
| Pump Type | Tandem gear pump | Two high-pressure gear pumps |
|---|
| Implement Flow | 18.4 gpm | 15.1 gpm |
|---|
| Steering Flow | 6.3 gpm | Not Published |
|---|
| Total Hydraulic Flow | 24.7 gpm | 26 gpm |
|---|
| Overall Hydraulic Pump Flow | 24.7 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 26 gpm |
|---|
| No. of Standard Remote Valves | 2 (rear, Dual SCV) | 2 |
|---|
| No. of Optional Remote Valves | 3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions | 1 |
|---|
|
|---|
| Fuel Tank Capacity | OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal | 38.3 gal |
|---|
| Coolant Capacity | OOS: 5.2 gal; Cab: 5.8 gal | Not Published |
|---|
| Crankcase Capacity | 3.4 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 10.4 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional | Independent, electro-hydraulic engagement via switch |
|---|
| PTO Rear | 540/540E rpm standard; 1000 rpm optional | 540 / 540E / 1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II (convertible to I) | Category II |
|---|
| Hitch Lift Capacity | 5,305 lb standard; 6,114 lb optional | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 5,159 lb standard; 5,954 lb optional | 7,710 lb |
|---|
| Lift Control Type | Mechanical or electrohydraulic; lower-link draft sensing | Cab: electric controlled 3-point linkage with draft control; Platform: lever controlled 3-point linkage with draft control |
|---|
|
|---|
| Transmission Type | PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered | Power Shuttle: 12F x 12R, 2 ranges, electro-hydraulic shuttle; Dyna-4: 16F x 16R powershift |
|---|
| No. of Speeds | 16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) | Power Shuttle: 12 forward, 12 reverse; Dyna-4: 16 forward, 16 reverse |
|---|
| Max Travel Speed (Forward) | 16F/16R PowrReverser, top gear (D-4): 30K config: 18.64 mph; 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm) | 25 mph |
|---|
| Max Travel Speed (Reverse) | 16F/16R PowrReverser, top gear (D-4): 30K config: 20.54 mph; 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm) | Not Published |
|---|
| Clutch | Wet | Wet clutch with easy shift knob and electrohydraulic power shuttle lever |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic rear differential lock, engage on the go | Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD |
|---|
|
|---|
| Frame Type | Cast iron mid-frame | Not Published |
|---|
| Steering | Not Published | Cab: tilt and telescopic steering column; Platform: tilt steering column |
|---|
| Brakes | Not Published | Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals |
|---|
| Seat Suspension & Adjustability | OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb | Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests |
|---|
| Front Axle Type | MFWD | Heavy-duty 4WD front axle, center driveline |
|---|
| Front Axle Rating | 6,613 lb (MFWD, max permissible front axle load) | Not Published |
|---|
| Drawbar Capacity | Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb | Not Published |
|---|
|
|---|
| Overall Width | Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in | 64.8 in |
|---|
| Wheelbase | 92.5 in | 95.7 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 102.1 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 102.9 in | Not Published |
|---|
| Overall Length | 149.5 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights) | 4WD ROPS: 9,195 lb; 4WD Cab: 10,011 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Rear: 460/85R34 standard radial |
|---|
| R1 Agricultural - Front | 12.4R24 (320/85R24) R1W Radial | Not Published |
|---|
| R1 Agricultural - Rear | 18.4R30 (460/85R30) R1W Radial | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) | 941X; 946X; FL.3723; FL.3819 |
|---|
| Loader Lift Height | 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in | 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in |
|---|
| Loader Lift Capacity (Full Height) | 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) | 941X: 2,220 lb; FL.3723: 2,840 lb (to full height, at 31.5 in forward of pivot pin) |
|---|
| Loader Breakout Force | 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) | FL.3723: 5,819 lb; FL.3819: 4,893 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
