John Deere 5100M vs New Holland T4.95

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 5100M leads 6 categories to 2. Machine pages: John Deere 5100M and New Holland T4.95.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5100M	New Holland T4.95
Engine HP (hp)	▲ 99.1 hp	98 hp
PTO HP (hp)	▲ 85 hp	82 hp
Weight (lb)	▲ 9,185 lb	7,936 lb
Loader Lift (lb)	▲ 4,644 lb	3,571 lb
3-Pt Lift (24 in) (lb)	5,159 lb	▲ 5,620 lb
Lift Height (in)	▲ 149 in	143 in
Breakout Force (lbf)	▲ 6,767 lbf	5,661 lbf
Hydraulic Flow (gpm)	24.7 gpm	▲ 26.6 gpm
Travel Speed (mph)	18.6 mph	n/a

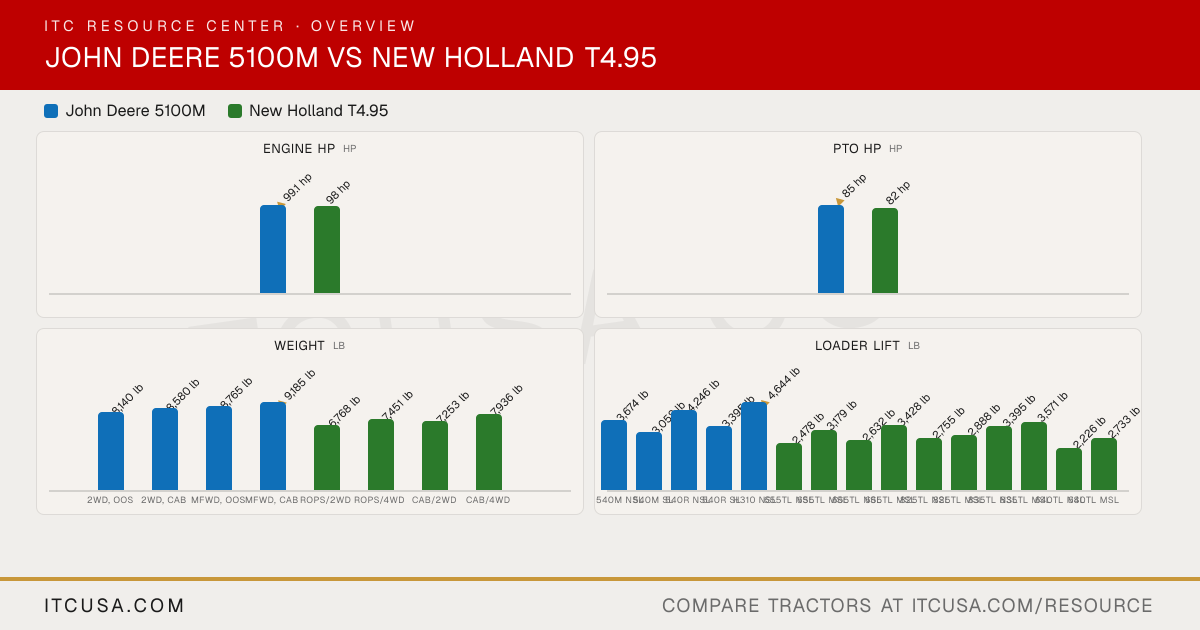

The headline numbers at a glance.

John Deere 5100MNew Holland T4.95

Engine HPhp

▲99.1 hp

98 hp

PTO HPhp

▲85 hp

82 hp

Weightlb

8,140 lb

8,580 lb

8,765 lb

▲9,185 lb

6,768 lb

7,451 lb

7,253 lb

7,936 lb

2WD, OOS2WD, CabMFWD, OOSMFWD, CabROPS/2WDROPS/4WDCab/2WDCab/4WD

Loader Liftlb

3,674 lb

3,058 lb

4,246 lb

3,395 lb

▲4,644 lb

2,478 lb

3,179 lb

2,632 lb

3,428 lb

2,755 lb

2,888 lb

3,395 lb

3,571 lb

2,226 lb

2,733 lb

540M NSL540M SL540R NSL540R SLH310 NSL655TL NSL655TL MSL665TL NSL665TL MSL825TL NSL825TL MSL835TL NSL835TL MSL640TL NSL640TL MSL

3-Pt Lift (24 in)lb

5,159 lb

▲5,620 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5100M	New HollandT4.95


Engine Manufacturer	John Deere	FPT
Engine Model	PowerTech 4045 PWL	F5D
Engine Type	Diesel, turbocharged, air-to-air aftercooled	4-cylinder diesel
No. of Cylinders	4	4
Displacement	276 in³	207 in³
Rated Engine Speed	2200 rpm	Not Published
Engine Power (Gross)	99.1 hp	98 hp
PTO Power	85 hp @ 100 rpm	82 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled (Cool-Gard II coolant)	Liquid-cooled
Air Cleaner	Dry air cleaner, primary and secondary elements	Not Published
Fuel System	High Pressure Common Rail (HPCR) electronic fuel injection	Common rail fuel injection
Alternator	OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V	Not Published

Pump Type	Tandem gear pump	Not Published
Implement Flow	18.4 gpm	16.9 gpm
Steering Flow	6.3 gpm	9.7 gpm
Total Hydraulic Flow	24.7 gpm	26.6 gpm (16.9 + 9.7, computed)
Overall Hydraulic Pump Flow	24.7 gpm	26.6 gpm (16.9 + 9.7, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 (rear, Dual SCV)	2 (3 with DIA option)
No. of Optional Remote Valves	Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions	Not Published

Fuel Tank Capacity	OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal	30.3 gal
Coolant Capacity	OOS: 5.2 gal; Cab: 5.8 gal	Not Published
Crankcase Capacity	3.4 gal	Not Published
Transmission / Hydraulic System Capacity	10.4 gal	Not Published
Front Axle Fluid Capacity	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal	Not Published

PTO Type	Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional	Not Published
PTO Rear	540/540E rpm standard; 1000 rpm optional	540 (12x12 base); 540/540E or 540/1000 (12x12 optional); 540/540E (24x24 Dual Command base); 540/1000 (24x24 Dual Command optional)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II (convertible to I)	Category II
Hitch Lift Capacity	5,305 lb standard; 6,114 lb optional	Not Published
Hitch Lift Capacity (at 24”)	5,159 lb standard; 5,954 lb optional	5,620 lb (7,351 lb with optional ram)
Lift Control Type	Mechanical or electrohydraulic (draft control)	Not Published

Transmission Type	PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus	12x12 mechanical shuttle (standard); 12x12 power shuttle, 20x20 power shuttle with creeper, 24x24 Dual Command or 40x40 Dual Command with creeper (optional)
No. of Speeds	16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo)	12F/12R (standard); 20F/20R, 24F/24R or 40F/40R (optional)
Max Travel Speed (Forward)	16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph	Not Published
Max Travel Speed (Reverse)	16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph	Not Published
Clutch	Wet	Not Published
Differential Lock & Limited Slip Options	Electro-hydraulic rear differential lock, engage on the go	Mechanical rear differential lock (pedal)

Frame Type	Cast iron mid-frame	Not Published
Steering	Not Published	Not Published
Brakes	Not Published	Not Published
Seat Suspension & Adjustability	OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb	Cab: fabric mechanical-suspension seat (standard) or fabric air-suspension seat with 15 degree swivel; full-size instructor seat available. ROPS: vinyl mechanical-suspension seat with armrests
Front Axle Type	MFWD	Standard-duty electronically engaged 4WD front axle (standard); mechanically engaged standard-duty 4WD, heavy-duty electronically engaged 4WD, or 2WD front axle (optional)
Front Axle Rating	6,613 lb (MFWD, max permissible front axle load)	4,700 lb (standard-duty 4WD, in-action capacity); 5,100 lb (heavy-duty 4WD, in-action capacity)
Drawbar Capacity	Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb	Not Published

Overall Length with 3-Point Hitch	149.5 in	2WD: 161 in; 4WD: 158 in
Overall Width	Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in	75.7 in
Wheelbase	92.5 in	2WD: 90.2 in; 4WD: 87.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	132 in (2WD front axle)
Height to Top of ROPS	102.1 in	106.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	102.9 in	102.1 in

Tractor Weight (Base)	2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb	ROPS/2WD: 6,768 lb; ROPS/4WD: 7,451 lb; Cab/2WD: 7,253 lb; Cab/4WD: 7,936 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	12.4R24 (320/85R24) R1W Radial	Not Published
R1 Agricultural - Rear	18.4R30 (460/85R30) R1W Radial	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Not Published	Skid-steer or Euro-style quick attach faceplate
Loader Model	540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310)	655TL, 665TL (factory installed, NSL or MSL); 825TL, 835TL, 640TL (dealer installed, NSL or MSL)
Loader Lift Height	540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in	655TL NSL: 126 in; 655TL MSL: 125 in; 665TL NSL: 134 in; 665TL MSL: 135 in; 825TL: 135 in; 835TL: 143 in; 640TL: 137 in
Loader Lift Capacity (Full Height)	540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot)	655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 665TL NSL: 2,632 lb; 665TL MSL: 3,428 lb (at 31.5 in from pivot point); 825TL NSL: 2,755 lb; 825TL MSL: 2,888 lb; 835TL NSL: 3,395 lb; 835TL MSL: 3,571 lb; 640TL NSL: 2,226 lb; 640TL MSL: 2,733 lb (at max height)
Loader Breakout Force	540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot)	655TL NSL: 3,739 lb; 655TL MSL: 3,860 lb; 665TL NSL: 4,455 lb; 665TL MSL: 5,661 lb (at 31.5 in from bucket pivot point); 825TL NSL: 2,910 lb; 825TL MSL: 3,196 lb; 835TL NSL: 3,615 lb; 835TL MSL: 3,990 lb; 640TL NSL: 3,747 lb; 640TL MSL: 3,306 lb

Warranty Length & Coverage	24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)	Not Published

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 5100M vs New Holland T4.95: Quick Answers

Which has more horsepower, the John Deere 5100M or the New Holland T4.95?: The John Deere 5100M leads on engine hp at 99.1 hp hp, compared to 98 hp hp for the New Holland T4.95.
Which has more PTO horsepower, the John Deere 5100M or the New Holland T4.95?: The John Deere 5100M leads on pto hp at 85 hp hp, compared to 82 hp hp for the New Holland T4.95.
Which is heavier, the John Deere 5100M or the New Holland T4.95?: The John Deere 5100M leads on weight at 9,185 lb lb, compared to 7,936 lb lb for the New Holland T4.95.
Which has more loader lift capacity, the John Deere 5100M or the New Holland T4.95?: The John Deere 5100M leads on loader lift at 4,644 lb lb, compared to 3,571 lb lb for the New Holland T4.95.
Which has more three-point hitch lift capacity, the John Deere 5100M or the New Holland T4.95?: The New Holland T4.95 leads on 3-pt lift (24 in) at 5,620 lb lb, compared to 5,159 lb lb for the John Deere 5100M.
