| Engine Manufacturer | John Deere | KIOTI |
|---|
| Engine Model | PowerTech 4045 PWL | 4J243TA-TP5B |
|---|
| Engine Type | Diesel, turbocharged, air-to-air aftercooled | 4-cylinder, in-line vertical, water-cooled, turbocharged and intercooled CRDI diesel (4J243TA-TP5B) |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 276 in³ | 233.9 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2200 rpm |
|---|

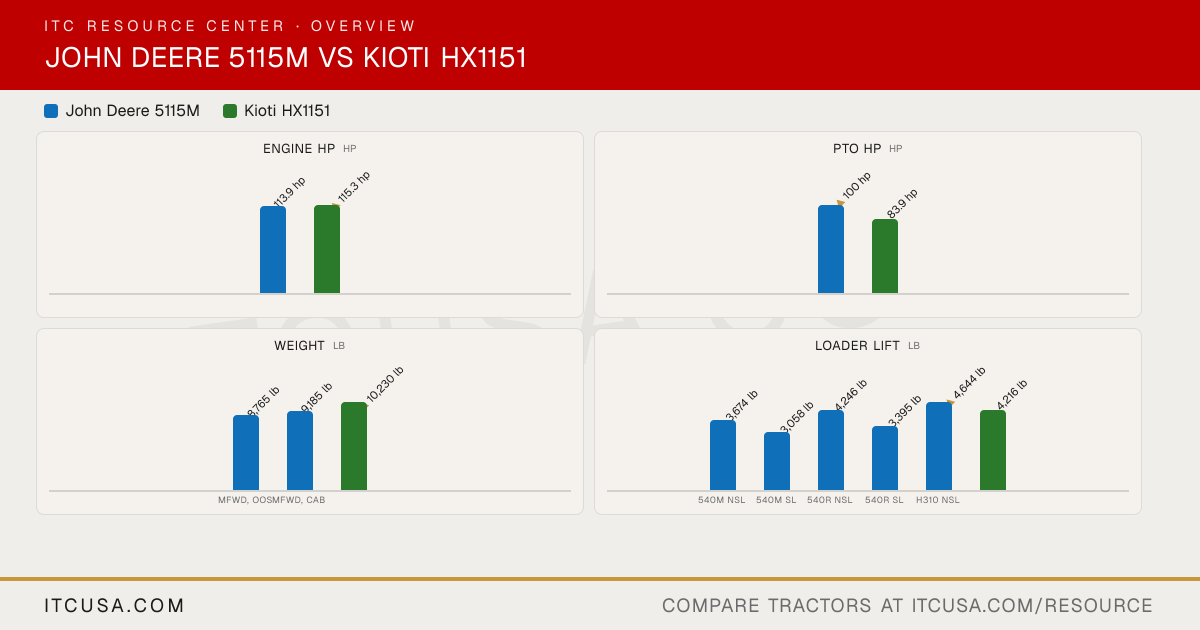

| Engine Power (Gross) | 113.9 hp | 115.3 hp |
|---|
| PTO Power | 100 hp @ 100 rpm | 83.9 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled (Cool-Gard II coolant) | Water-cooled |
|---|
| Air Cleaner | Dry air cleaner, primary and secondary elements | Dry element with evacuator valve |
|---|
| Fuel System | High pressure common rail (HPCR); electronic fuel control | CRDI |
|---|
| Alternator | OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Tandem gear pump | Gear |
|---|
| Implement Flow | 18.4 gpm | 19.8 gpm |
|---|
| Steering Flow | 6.3 gpm | 12.2 gpm |
|---|
| Total Hydraulic Flow | 24.7 gpm | 32 gpm |
|---|
| Overall Hydraulic Pump Flow | 24.7 gpm | 32 gpm |
|---|
| Hydraulic System Type | Open center | Open Center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 (rear, Dual SCV) | 3 |
|---|
| No. of Optional Remote Valves | 3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions | 4th remote valve |
|---|
|
|---|
| Fuel Tank Capacity | OOS: 37.2 gal; Cab: 44.9 gal | 47.6 gal |
|---|
| Coolant Capacity | OOS: 5.2 gal; Cab: 5.8 gal | 4.7 gal |
|---|
| Crankcase Capacity | 3.4 gal | 3.9 gal |
|---|
| Transmission / Hydraulic System Capacity | 10.4 gal | 20.34 gal |
|---|
| Front Axle Fluid Capacity | Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal | 2.6 gal |
|---|
|
|---|
| PTO Type | Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional | Independent |
|---|
| PTO Rear | 540/540E rpm standard; 1000 rpm optional | 540 / 540E / 1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II (convertible to I) | Category II |
|---|
| Hitch Lift Capacity | 5,305 lb standard; 6,114 lb optional | 8,079 lb |
|---|
| Hitch Lift Capacity (at 24”) | 5,159 lb standard; 5,954 lb optional | 8,002 lb |
|---|
| Lift Control Type | Mechanical or electrohydraulic; lower-link draft sensing | Electronic control |
|---|
|
|---|
| Transmission Type | PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered | Power Shuttle w/ Hi-Lo Shift |
|---|
| No. of Speeds | 16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) | 24 forward / 24 reverse |
|---|
| Max Travel Speed (Forward) | 16F/16R PowrReverser, top gear (D-4), 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm) | 23.83 mph |
|---|
| Max Travel Speed (Reverse) | 16F/16R PowrReverser, top gear (D-4), 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm) | 23.67 mph |
|---|
| Clutch | Wet | Wet Multi Disc |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic rear differential lock, engage on the go | Mechanical rear differential lock (standard); front limited-slip differential |
|---|
|
|---|
| Frame Type | Cast iron mid-frame | Not Published |
|---|
| Steering | Not Published | Hydrostatic Power Steering |
|---|
| Brakes | Not Published | Wet Disc |
|---|
| Seat Suspension & Adjustability | OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb | Heated air suspension seat, 20 degree swivel both directions, adjustable fore/aft |
|---|
| Front Axle Type | MFWD | 4WD, outboard planetary drives, limited-slip differential |
|---|
| Front Axle Rating | 6,613 lb (MFWD, max permissible front axle load) | Not Published |
|---|
| Drawbar Capacity | Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb | Max. Drawbar vertical load: 3,307 lb; Max. Trailer loading weight: 9,921 lb |
|---|
|
|---|
| Overall Width | Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in | 88.6 in |
|---|
| Wheelbase | 92.5 in | 94.9 in |
|---|
| Ground Clearance | Not Published | 18.9 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 12.7 ft (with brake applied) |
|---|
| Height to Top of ROPS | 102.1 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 102.9 in | 111.9 in |
|---|
| Overall Length | 149.5 in | 170.8 in (with 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights; 2WD not offered) | 10,230 lb (with AG tires) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | R1 Agricultural (bias 13.6-24 / 18.4-34, radial 13.6R-24 / 18.4R-34); R14 radial (340/85R24 / 460/85R34) |
|---|
| R1 Agricultural - Front | 12.4R24 (320/85R24) R1W Radial | 13.6-24 |
|---|
| R1 Agricultural - Rear | 18.4R30 (460/85R30) R1W Radial | 18.4-34 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | KL1155: quick-attach system with built-in parking stand; single-lever joystick control with float; bucket level indicator |
|---|
| Loader Model | 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) | KL1155 |
|---|
| Loader Lift Height | 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in | KL1155: 150.6 in (to pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) | KL1155: 4,216 lb (at pivot pins) |
|---|
| Loader Breakout Force | 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) | KL1155: 8,554 lb (at pivot pins) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 48 months, unlimited hours, HX series |
|---|
