| Engine Manufacturer | John Deere | Kubota |
|---|
| Engine Model | PowerTech 4045 PWL | V3800-TI-CRS |
|---|
| Engine Type | Diesel, turbocharged, air-to-air aftercooled | 4-cylinder, turbocharged and intercooled, common-rail, liquid-cooled diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 276 in³ | 230 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2600 rpm |
|---|

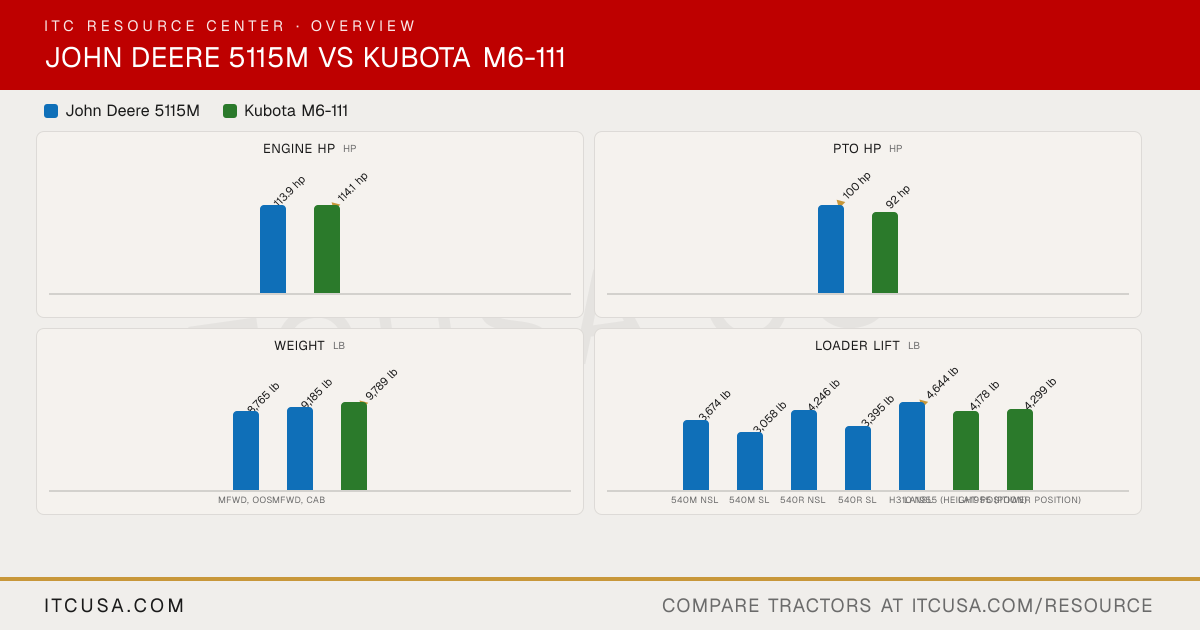

| Engine Power (Gross) | 113.9 hp | 114.1 hp |
|---|
| PTO Power | 100 hp @ 100 rpm | 92 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled (Cool-Gard II coolant) | Liquid-cooled, pressurized radiator, recovery tank |
|---|
| Air Cleaner | Dry air cleaner, primary and secondary elements | 8 in dry, dual element |
|---|
| Fuel System | High pressure common rail (HPCR); electronic fuel control | Common rail direct injection |
|---|
| Alternator | OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V | 130 A, 12 V |
|---|
|
|---|
| Pump Type | Tandem gear pump | Gear pumps |
|---|
| Implement Flow | 18.4 gpm | 18.7 gpm |
|---|
| Steering Flow | 6.3 gpm | 16.0 gpm |
|---|
| Total Hydraulic Flow | 24.7 gpm | 34.7 gpm (18.7 + 16.0, computed) |
|---|
| Overall Hydraulic Pump Flow | 24.7 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Pressure compensated, fixed displacement |
|---|
| Rear Remote Hydraulic Flow | Not Published | 18.7 gpm |
|---|
| No. of Standard Remote Valves | 2 (rear, Dual SCV) | 2 (with built-in flow control) |
|---|
| No. of Optional Remote Valves | 3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions | 3rd and 4th optional (4 max) |
|---|
|
|---|
| Fuel Tank Capacity | OOS: 37.2 gal; Cab: 44.9 gal | 50.2 gal |
|---|
| Coolant Capacity | OOS: 5.2 gal; Cab: 5.8 gal | 11.3 qt |
|---|
| Crankcase Capacity | 3.4 gal | 11.3 qt |
|---|
| Transmission / Hydraulic System Capacity | 10.4 gal | 17.2 gal |
|---|
| Front Axle Fluid Capacity | Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal | 7.2 qt (differential) plus 3.8 qt per bevel gear case |
|---|
|
|---|
| PTO Type | Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional | Live, independent PTO, hydraulically operated wet clutch with PTO brake |
|---|
| PTO Rear | 540/540E rpm standard; 1000 rpm optional | 540/1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II (convertible to I) | Category II |
|---|
| Hitch Lift Capacity | 5,305 lb standard; 6,114 lb optional | 8,598 lb |
|---|
| Hitch Lift Capacity (at 24”) | 5,159 lb standard; 5,954 lb optional | 6,834 lb (optional 9,447 lb) |
|---|
| Lift Control Type | Mechanical or electrohydraulic; lower-link draft sensing | Electronic draft control, lower-link sensing; left fender-mounted hitch switch standard |
|---|
|
|---|
| Transmission Type | PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered | 24F/24R powershift (8-speed main, 3-speed mechanical range, clutch button, microprocessor-controlled electro-hydraulic shuttle); 32F/32R optional with creep |
|---|
| No. of Speeds | 16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) | 24F/24R (32F/32R with optional creep) |
|---|
| Max Travel Speed (Forward) | 16F/16R PowrReverser, top gear (D-4), 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm) | 23.4 mph |
|---|
| Max Travel Speed (Reverse) | 16F/16R PowrReverser, top gear (D-4), 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm) | 22.33 mph (with 18.4R38 tires, at rated rpm) |
|---|
| Clutch | Wet | Multiple wet disc, electro-hydraulically operated, 5.2 in |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic rear differential lock, engage on the go | Electro-hydraulic front differential lock; rear differential lock standard |
|---|
|
|---|
| Frame Type | Cast iron mid-frame | Certified ROPS cab standard |
|---|
| Steering | Not Published | Hydrostatic power steering |
|---|
| Brakes | Not Published | Hydraulically operated wet disc brakes with automatic front axle engagement (4WD) |
|---|
| Seat Suspension & Adjustability | OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb | Air-suspension seat, swivel, reclining, fully adjustable (height, weight, fore-aft), armrests, retractable seat belt |
|---|
| Front Axle Type | MFWD | 4WD, bevel-gear type, on-the-go electro-hydraulic engagement, electro-hydraulic front differential lock |
|---|
| Front Axle Rating | 6,613 lb (MFWD, max permissible front axle load) | 6,610 lb at 62.2 in tread (9,700 lb with loader) |
|---|
| Drawbar Capacity | Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb | Not Published |
|---|
|
|---|
| Overall Width | Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in | 82.7 in |
|---|
| Wheelbase | 92.5 in | 95.9 in |
|---|
| Ground Clearance | Not Published | 19.5 in (crop clearance) |
|---|
| Min. Turn Radius without Brakes | Not Published | 13.1 ft (with Bi-Speed turn, 4WD on) |
|---|
| Height to Top of ROPS | 102.1 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 102.9 in | 111.8 in |
|---|
| Overall Length | 149.5 in | 165.4 in |
|---|
|
|---|
| Tractor Weight (Base) | MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights; 2WD not offered) | 9,788 lb (with standard tire) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Standard: 13.6 R24 front, 18.4 R34 rear (R1 options 12.4-24, 13.6-24 front; 16.9-34, 18.4R30, 18.4-34 rear) |
|---|
| R1 Agricultural - Front | 12.4R24 (320/85R24) R1W Radial | 13.6 R24 |
|---|
| R1 Agricultural - Rear | 18.4R30 (460/85R30) R1W Radial | 18.4 R34 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | LA1955: 2-lever quick coupler or Euro quick coupler; single-lever hydraulic quick coupler; quick attach/detach loader with boom stands, two mounting pins |
|---|
| Loader Model | 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) | LA1955 |
|---|
| Loader Lift Height | 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in | LA1955 (height position): 145.7 in; LA1955 (power position): 132.7 in |
|---|
| Loader Lift Capacity (Full Height) | 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) | LA1955 (height position): 4,178 lb at pivot pin; LA1955 (power position): 4,299 lb at pivot pin |
|---|
| Loader Breakout Force | 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) | LA1955 (height position): 5,589 lbf at pivot pin; LA1955 (power position): 6,576 lbf at pivot pin |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
