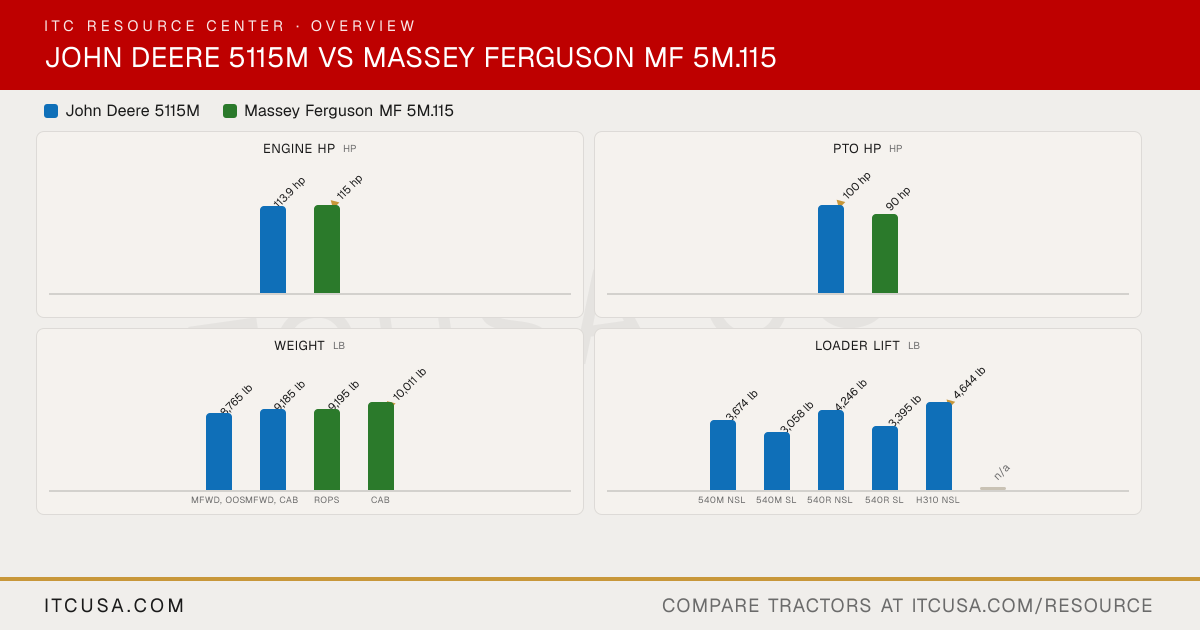

▶ EngineEngine Manufacturer John Deere AGCO Power Engine Model PowerTech 4045 PWL Not Published Engine Type Diesel, turbocharged, air-to-air aftercooled 4-cylinder, turbocharged intercooled diesel No. of Cylinders 4 4 Displacement 276 in³ 268.5 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 113.9 hp 115 hp PTO Power 100 hp @ 100 rpm 90 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled (Cool-Gard II coolant) Liquid cooled Air Cleaner Dry air cleaner, primary and secondary elements Not Published Fuel System High Pressure Common Rail (HPCR) electronic fuel injection High-pressure common-rail direct fuel injection Alternator OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V Platform: 80 A; Cab: 120 A ▶ HydraulicsPump Type Tandem gear pump Engine-driven gear pump Implement Flow 18.4 gpm 15.3 gpm Steering Flow 6.3 gpm 8.5 gpm Total Hydraulic Flow 24.7 gpm 23.8 gpm (15.3 + 8.5, computed) Overall Hydraulic Pump Flow 24.7 gpm 23.8 gpm (15.3 + 8.5, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 26 gpm No. of Standard Remote Valves 2 (rear, Dual SCV) 2 No. of Optional Remote Valves Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions 3 ▶ Fluid CapacityFuel Tank Capacity OOS: 37.2 gal; Cab: 44.9 gal 52.8 gal Coolant Capacity OOS: 5.2 gal; Cab: 5.8 gal Not Published Crankcase Capacity 3.4 gal Not Published Transmission / Hydraulic System Capacity 10.4 gal Not Published Front Axle Fluid Capacity Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal Not Published ▶ PTO & HitchPTO Type Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional Independent, electrohydraulic engagement PTO Rear 540/540E rpm standard; 1000 rpm optional 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 2 (convertible to 1) Category II Hitch Lift Capacity 5,305 lb standard; 6,114 lb optional 9,480 lb Hitch Lift Capacity (at 24”) 5,159 lb standard; 5,954 lb optional 7,500 lb Lift Control Type Mechanical or electrohydraulic (draft control) Not Published ▶ Transmission & DrivetrainTransmission Type PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus 12 x 12: 2-range power shuttle with electrohydraulic shuttle lever; Dyna-4: semi-powershift No. of Speeds 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) 12 x 12: 12F/12R; Dyna-4: 16F/16R Max Travel Speed (Forward) 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Not Published Max Travel Speed (Reverse) 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Not Published Clutch Wet Multidisk wet clutch with electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock, engage on the go Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch ▶ Chassis, Steering & ControlsFrame Type Cast iron mid-frame Not Published Steering Not Published Power steering Brakes Not Published Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb ROPS: mechanical spring suspension with armrests; Cab: air-ride swivel seat Front Axle Type MFWD Heavy-duty 4WD front axle Front Axle Rating 6,613 lb (MFWD, max permissible front axle load) Not Published Drawbar Capacity Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 149.5 in 165.6 in Overall Width Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Dyna-4 cab: 74.9 in; 12 x 12 cab: 79.8 in Wheelbase 92.5 in 95.7 in Ground Clearance Not Published 20.3 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 102.1 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.9 in 105.7 in ▶ WeightTractor Weight (Base) MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (2WD not offered on 5115M) ROPS: 9,195 lb; Cab: 10,011 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front 12.4R24 (320/85R24) R1W Radial Not Published R1 Agricultural - Rear 18.4R30 (460/85R30) R1W Radial Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Not Published Loader Lift Height 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Not Published Loader Lift Capacity (Full Height) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Not Published Loader Breakout Force 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) Not Published ▶ WarrantyWarranty Length & Coverage 24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term) Not Published
