John Deere 5115M vs New Holland T5.115

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the John Deere 5115M, 4 to the New Holland T5.115. Machine pages: John Deere 5115M and New Holland T5.115.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 5115M	New Holland T5.115
Engine HP (hp)	113.9 hp	▲ 114 hp
PTO HP (hp)	▲ 100 hp	98 hp
Weight (lb)	9,185 lb	▲ 9,700 lb
Loader Lift (lb)	▲ 4,644 lb	3,681 lb
3-Pt Lift (24 in) (lb)	5,159 lb	▲ 6,393 lb
Lift Height (in)	▲ 149 in	146 in
Breakout Force (lbf)	▲ 6,767 lbf	4,100 lbf
Hydraulic Flow (gpm)	24.7 gpm	▲ 32.5 gpm
Travel Speed (mph)	18.6 mph	n/a

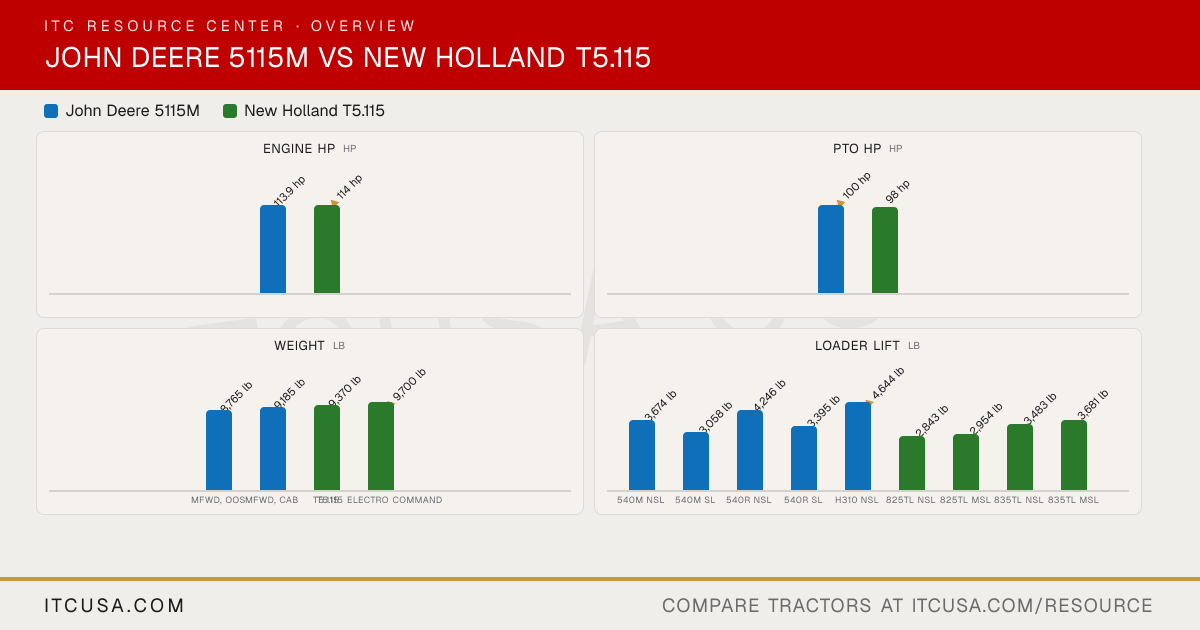

The headline numbers at a glance.

John Deere 5115MNew Holland T5.115

Engine HPhp

113.9 hp

▲114 hp

PTO HPhp

▲100 hp

98 hp

Weightlb

8,765 lb

9,185 lb

9,370 lb

▲9,700 lb

MFWD, OOSMFWD, CabT5.115T5.115 Electro Command

Loader Liftlb

3,674 lb

3,058 lb

4,246 lb

3,395 lb

▲4,644 lb

2,843 lb

2,954 lb

3,483 lb

3,681 lb

540M NSL540M SL540R NSL540R SLH310 NSL825TL NSL825TL MSL835TL NSL835TL MSL

3-Pt Lift (24 in)lb

5,159 lb

▲6,393 lb

T5.115T5.115 Electro Command

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5115M	New HollandT5.115


Engine Manufacturer	John Deere	FPT
Engine Model	PowerTech 4045 PWL	F5D
Engine Type	Diesel, turbocharged, air-to-air aftercooled	4-cylinder diesel
No. of Cylinders	4	4
Displacement	276 in³	207 in³
Rated Engine Speed	2200 rpm	2300 rpm
Engine Power (Gross)	113.9 hp	114 hp
PTO Power	100 hp @ 100 rpm	98 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled (Cool-Gard II coolant)	Liquid-cooled
Air Cleaner	Dry air cleaner, primary and secondary elements	Not Published
Fuel System	High Pressure Common Rail (HPCR) electronic fuel injection	Not Published
Alternator	OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V	120 A

Pump Type	Tandem gear pump	Gear pumps
Implement Flow	18.4 gpm	T5.115: 16.1 gpm (21.1 gpm optional); T5.115 Electro Command: 21.1 gpm (16.1 gpm optional)
Steering Flow	6.3 gpm	T5.115: 10.0 gpm (11.4 gpm optional); T5.115 Electro Command: 11.4 gpm (10.0 gpm optional)
Total Hydraulic Flow	24.7 gpm	T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed)
Overall Hydraulic Pump Flow	24.7 gpm	T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 (rear, Dual SCV)	2 (3 optional)
No. of Optional Remote Valves	Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions	Not Published

Fuel Tank Capacity	OOS: 37.2 gal; Cab: 44.9 gal	37 gal
Coolant Capacity	OOS: 5.2 gal; Cab: 5.8 gal	Not Published
Crankcase Capacity	3.4 gal	Not Published
Transmission / Hydraulic System Capacity	10.4 gal	Not Published
Front Axle Fluid Capacity	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal	Not Published

PTO Type	Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional	Independent, electro-hydraulic clutch
PTO Rear	540/540E rpm standard; 1000 rpm optional	540/1000
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II (convertible to I)	Category II
Hitch Lift Capacity	5,305 lb standard; 6,114 lb optional	Not Published
Hitch Lift Capacity (at 24”)	5,159 lb standard; 5,954 lb optional	T5.115: 6,393 lb (10,452 lb with 2 optional rams); T5.115 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2)
Lift Control Type	Mechanical or electrohydraulic (draft control)	Electronic draft control

Transmission Type	PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus	T5.115: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.115 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional)
No. of Speeds	16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo)	T5.115: 12F/12R (20F/20R or 24F/24R optional); T5.115 Electro Command: 16F/16R (32F/32R optional)
Max Travel Speed (Forward)	16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph	Not Published
Max Travel Speed (Reverse)	16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph	Not Published
Clutch	Wet	Not Published
Differential Lock & Limited Slip Options	Electro-hydraulic rear differential lock, engage on the go	Electro-hydraulic rear differential lock; limited slip front

Frame Type	Cast iron mid-frame	Not Published
Steering	Not Published	Hydrostatic power steering
Brakes	Not Published	Hydraulic wet disc
Seat Suspension & Adjustability	OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb	Numerous seat options including a premium low-frequency heated air-suspension seat; full-size instructor seat available
Front Axle Type	MFWD	Heavy-duty 4WD front axle (standard)
Front Axle Rating	6,613 lb (MFWD, max permissible front axle load)	4,500 lb (in-action capacity at 4 mph)
Drawbar Capacity	Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb	Not Published

Overall Length with 3-Point Hitch	149.5 in	T5.115: 163.8 in; T5.115 Electro Command: 165.0 in
Overall Width	Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in	82.6 in
Wheelbase	92.5 in	92.5 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	102.1 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	102.9 in	T5.115: 105.4 in; T5.115 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab)

Tractor Weight (Base)	MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (2WD not offered on 5115M)	T5.115: 9,370 lb; T5.115 Electro Command: 9,700 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	12.4R24 (320/85R24) R1W Radial	Not Published
R1 Agricultural - Rear	18.4R30 (460/85R30) R1W Radial	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Not Published	Skid-steer-style or European-style
Loader Model	540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310)	825TL; 835TL (each NSL or MSL)
Loader Lift Height	540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in	825TL: 138 in; 835TL: 146 in
Loader Lift Capacity (Full Height)	540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot)	825TL NSL: 2,843 lb; 825TL MSL: 2,954 lb; 835TL NSL: 3,483 lb; 835TL MSL: 3,681 lb
Loader Breakout Force	540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot)	825TL NSL: 2,976 lb; 825TL MSL: 3,284 lb; 835TL NSL: 3,725 lb; 835TL MSL: 4,100 lb

Warranty Length & Coverage	24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)	Not Published

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 5115M vs New Holland T5.115: Quick Answers

Which has more horsepower, the John Deere 5115M or the New Holland T5.115?: The New Holland T5.115 leads on engine hp at 114 hp hp, compared to 113.9 hp hp for the John Deere 5115M.
Which has more PTO horsepower, the John Deere 5115M or the New Holland T5.115?: The John Deere 5115M leads on pto hp at 100 hp hp, compared to 98 hp hp for the New Holland T5.115.
Which is heavier, the John Deere 5115M or the New Holland T5.115?: The New Holland T5.115 leads on weight at 9,700 lb lb, compared to 9,185 lb lb for the John Deere 5115M.
Which has more loader lift capacity, the John Deere 5115M or the New Holland T5.115?: The John Deere 5115M leads on loader lift at 4,644 lb lb, compared to 3,681 lb lb for the New Holland T5.115.
Which has more three-point hitch lift capacity, the John Deere 5115M or the New Holland T5.115?: The New Holland T5.115 leads on 3-pt lift (24 in) at 6,393 lb lb, compared to 5,159 lb lb for the John Deere 5115M.
