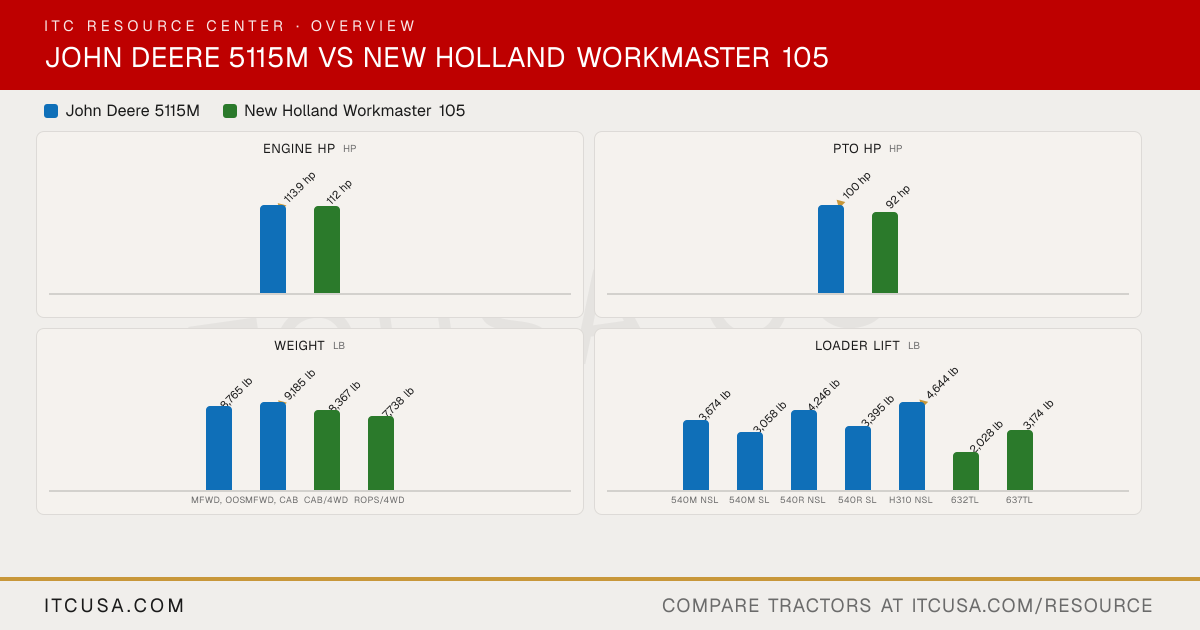

▶ EngineEngine Manufacturer John Deere FPT Engine Model PowerTech 4045 PWL F5 Engine Type Diesel, turbocharged, air-to-air aftercooled Turbocharged 4-cylinder diesel No. of Cylinders 4 4 Displacement 276 in³ 207 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 113.9 hp 112 hp PTO Power 100 hp @ 100 rpm 92 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled (Cool-Gard II coolant) Liquid-cooled Air Cleaner Dry air cleaner, primary and secondary elements Not Published Fuel System High Pressure Common Rail (HPCR) electronic fuel injection Not Published Alternator OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V 120 A ▶ HydraulicsPump Type Tandem gear pump Not Published Implement Flow 18.4 gpm 16.9 gpm (21.6 gpm optional) Steering Flow 6.3 gpm 9.7 gpm Total Hydraulic Flow 24.7 gpm 26.6 gpm (16.9 + 9.7, computed) Overall Hydraulic Pump Flow 24.7 gpm 26.6 gpm (16.9 + 9.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 (rear, Dual SCV) 2 or 3 No. of Optional Remote Valves Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions Not Published ▶ Fluid CapacityFuel Tank Capacity OOS: 37.2 gal; Cab: 44.9 gal ROPS: 24 gal; Cab: 29 gal Coolant Capacity OOS: 5.2 gal; Cab: 5.8 gal Not Published Crankcase Capacity 3.4 gal Not Published Transmission / Hydraulic System Capacity 10.4 gal Not Published Front Axle Fluid Capacity Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal Not Published ▶ PTO & HitchPTO Type Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional Wet clutch PTO with electro-hydraulic engagement PTO Rear 540/540E rpm standard; 1000 rpm optional 540 (base); 540/540E or 540/1000 (optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (convertible to I) Category II/I Hitch Lift Capacity 5,305 lb standard; 6,114 lb optional Not Published Hitch Lift Capacity (at 24”) 5,159 lb standard; 5,954 lb optional 3,200 lb (6,200 lb with optional ram) Lift Control Type Mechanical or electrohydraulic (draft control) Lift-O-Matic 3-point quick raise system ▶ Transmission & DrivetrainTransmission Type PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus 12x12 power shuttle No. of Speeds 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) 12F/12R Max Travel Speed (Forward) 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Not Published Max Travel Speed (Reverse) 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Not Published Clutch Wet Not Published Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock, engage on the go Not Published ▶ Chassis, Steering & ControlsFrame Type Cast iron mid-frame Not Published Steering Not Published Power steering Brakes Not Published Wet disc Seat Suspension & Adjustability OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb Cab: cloth air-suspension seat with fold-back instructor seat; ROPS: vinyl air-suspension seat Front Axle Type MFWD 4WD front axle, electro-hydraulic engagement (standard) Front Axle Rating 6,613 lb (MFWD, max permissible front axle load) Not Published Drawbar Capacity Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 149.5 in 161.1 in (4WD) Overall Width Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Not Published Wheelbase 92.5 in Cab: 88.9 in; ROPS: 83.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 102.1 in 103.0 in Height to Top of ROPS (folded) Not Published Low-Profile ROPS: 68.4 in to ROPS pivot (500/60-22.5 R1 tires); 71.9 in (19.5L24 R4 tires) Height to Top of Cab Model 102.9 in 105.4 in ▶ WeightTractor Weight (Base) MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (2WD not offered on 5115M) Cab/4WD: 8,367 lb; ROPS/4WD: 7,738 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 agricultural, R3 turf or R4 industrial R1 Agricultural - Front 12.4R24 (320/85R24) R1W Radial 12.4x24 (with 18.4x30 rear); 11.2-24 (with 16.9-30 rear); 11.5/80-18 (with 500/60-22.5 low-profile rear) R1 Agricultural - Rear 18.4R30 (460/85R30) R1W Radial 18.4x30 (standard); 16.9-30 or 500/60-22.5 low-profile (optional) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid-steer style (84 in bucket standard); Euro-style quick attach available Loader Model 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) 632TL (NSL); 637TL (MSL) Loader Lift Height 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in 632TL: 134.5 in; 637TL: 134.5 in Loader Lift Capacity (Full Height) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) 632TL: 2,028 lb; 637TL: 3,174 lb (at 31.5 in from bucket pivot pin to max height) Loader Breakout Force 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) Not Published ▶ WarrantyWarranty Length & Coverage 24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term) Not Published
