| Engine Manufacturer | John Deere | LS Mtron |
|---|
| Engine Model | 3029D | L3C19-T |
|---|
| Engine Type | 3-cylinder, naturally aspirated, direct injection, liquid-cooled diesel | 3 Cylinder, Liquid-cooled, Diesel, TC, CRDI |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 179 in³ | 114.7 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2600 rpm |
|---|

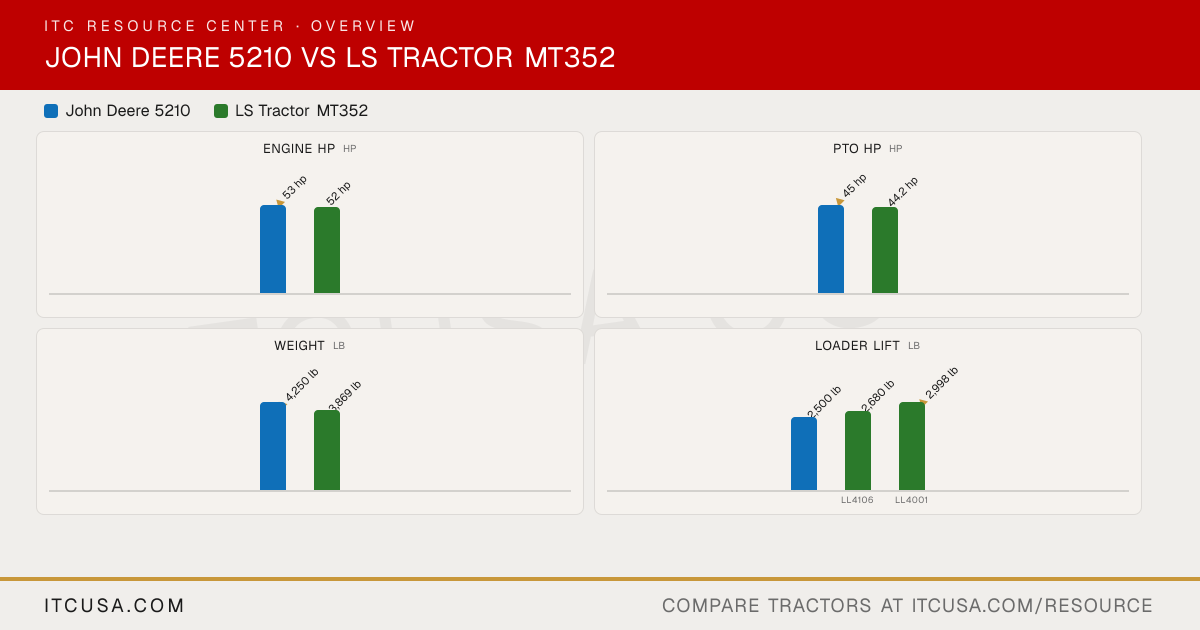

| Engine Power (Gross) | 53 hp | 52 hp |
|---|
| PTO Power | 45 hp | 44.2 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry type with safety element | Dry |
|---|
| Fuel System | Direct injection, rotary injection pump, electric shutoff | Common rail direct injection (CRDI) |
|---|
| Alternator | 40 A | 70 A, 12 V |
|---|
|
|---|
| Pump Type | Tandem gear pump | Not Published |
|---|
| Implement Flow | 11.4 gpm | 8.2 gpm |
|---|
| Steering Flow | 6.8 gpm | 4.1 gpm |
|---|
| Total Hydraulic Flow | 18.2 gpm | 12.3 gpm |
|---|
| Overall Hydraulic Pump Flow | 18.2 gpm | 12.3 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 11.4 gpm | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 3 Pair (2 Detent, 1 STD) |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 18 gal (open station); 23 gal (cab) | 10.6 gal |
|---|
| Coolant Capacity | 10 qt | Not Published |
|---|
| Crankcase Capacity | 9 qt | 6.2 qt |
|---|
| Transmission / Hydraulic System Capacity | 10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch) | Not Published |
|---|
| Front Axle Fluid Capacity | 5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly) | Not Published |
|---|
|
|---|
| PTO Type | Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever-operated clutch | Independent |
|---|
| PTO Rear | 540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle) | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Optional (2,000 rpm) |
|---|
| Category, 3-Point Hitch | Category I and II | Category II |
|---|
| Hitch Lift Capacity | Not Published | 2,755 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,374 lb | 2,469 lb |
|---|
| Lift Control Type | Position and depth control, top link draft sensing | Position & Draft |
|---|
|
|---|
| Transmission Type | CollarShift standard; SyncShuttle optional; PowrReverser optional | Synchro shuttle |
|---|
| No. of Speeds | 9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser) | F16 x R16 |
|---|
| Max Travel Speed (Forward) | 14.98 mph (CollarShift and SyncShuttle, gear C-3); 14.89 mph (PowrReverser, gear C-4) | Not Published |
|---|
| Max Travel Speed (Reverse) | 12.78 mph (CollarShift and SyncShuttle, gear C-R); 17.21 mph (PowrReverser, gear C-4 reverse) | Not Published |
|---|
| Clutch | Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Mechanical rear differential lock |
|---|
|
|---|
| Frame Type | Two-post ROPS; cab optional; two-wheel drive or MFWD | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic Power Steering |
|---|
| Brakes | Wet disk, self-equalizing, self-adjusting | Wet, Multi-disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Two-wheel drive or mechanical front wheel drive (MFWD) | Mechanical front-wheel drive (4WD) |
|---|
| Front Axle Rating | 2720 to 4,700 lb (2WD, by front tire, no loader); 2760 to 4,620 lb (MFWD, by front tire, without loader) | Not Published |
|---|
| Drawbar Capacity | 1,675 lb | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 122.6 in (2WD); 125.9 in (MFWD) (less drawbar and front weights) (without 3-point hitch) | 133 in |
|---|
| Overall Width | 65.4 in | 62.5 in |
|---|
| Wheelbase | 80.7 in | 73.2 in |
|---|
| Ground Clearance | 19.5 in (2WD front axle); 13.4 in (MFWD front axle); 15.8 in (2WD drawbar); 14.9 in (MFWD drawbar) | Not Published |
|---|
| Min. Turn Radius without Brakes | 11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged) | Not Published |
|---|
| Height to Top of ROPS | 87.8 in | 95 in |
|---|
| Height to Top of ROPS (folded) | 74.6 in | Not Published |
|---|
| Height to Top of Cab Model | 97 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 4,250 lb (2WD); 4,650 lb (MFWD) | 3,869 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1 | R1 Agricultural, R3 Turf, R4 Industrial |
|---|
| R1 Agricultural - Front | 6.5-16 (2WD); 8.3-24 (MFWD) | 9.5-16 |
|---|
| R1 Agricultural - Rear | 13.6-28 | 13.6-24 |
|---|
| R3 Turf - Front | Not Published | 28x8.5-15 |
|---|
| R3 Turf - Rear | Not Published | 41x14-20 |
|---|
| R4 Industrial - Front | Not Published | 12-16.5 |
|---|
| R4 Industrial - Rear | Not Published | 17.5L-24 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | LL4106, LL4001: 2-lever skid-steer coupler, fits universal skid-steer attachments |
|---|
| Loader Model | 521; 541; 541 self-leveling | LL4106; LL4001 |
|---|
| Loader Lift Height | 521: 122 in; 541: 126 in; 541 self-leveling: 130 in | LL4106: 94.4 in; LL4001: 104.3 in |
|---|
| Loader Lift Capacity (Full Height) | 521: 2,500 lb; 541: 2,500 lb; 541 self-leveling: 2,800 lb (full at pin) | LL4106: 2,680 lb; LL4001: 2,998 lb |
|---|
| Loader Breakout Force | 521: 3,485 lbf; 541: 3,484 lbf; 541 self-leveling: 4,125 lbf (at pin) | LL4106: 4,063 lb; LL4001: 4,295 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 6-year limited powertrain warranty |
|---|
