Which has more horsepower, the Kioti CK2510 or the Kioti CX2510?

The Kioti CK2510 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CX2510.

Which has more PTO horsepower, the Kioti CK2510 or the Kioti CX2510?

The Kioti CK2510 leads on pto hp at 20 hp hp, compared to 19.3 hp hp for the Kioti CX2510.

Which has more loader lift capacity, the Kioti CK2510 or the Kioti CX2510?

They are effectively tied: both machines are rated at 1,092 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kioti CK2510 or the Kioti CX2510?

The Kioti CK2510 leads on 3-pt lift (24 in) at 1,203 lb lb, compared to 700 lb lb for the Kioti CX2510.

Kioti CK2510 vs Kioti CX2510

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kioti CK2510 leads 4 categories to 0 (4 tied). Machine pages: Kioti CK2510 and Kioti CX2510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CK2510	Kioti CX2510
Engine HP (hp)	▲ 24.5 hp	21 hp
PTO HP (hp)	▲ 20 hp	19.3 hp
Weight (lb)	—	1,488 lb
Loader Lift (lb)	1,092 lb	1,092 lb
3-Pt Lift (24 in) (lb)	▲ 1,203 lb	700 lb
Lift Height (in)	87.8 in	87.8 in
Breakout Force (lbf)	1,843 lbf	1,843 lbf
Hydraulic Flow (gpm)	11.3 gpm	11.3 gpm
Travel Speed (mph)	▲ 10.8 mph	0.8 mph

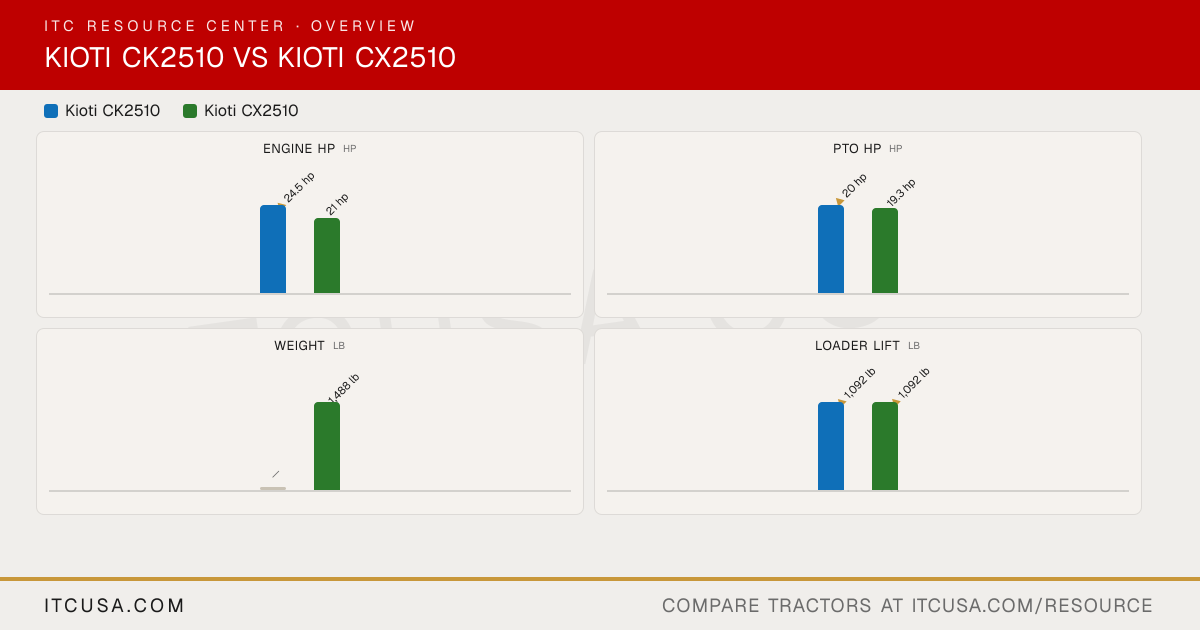

The headline numbers at a glance.

Kioti CK2510Kioti CX2510

Engine HPhp

▲24.5 hp

21 hp

PTO HPhp

▲20 hp

19.3 hp

Weightlb

—

1,488 lb

Loader Liftlb

▲1,092 lb

3-Pt Lift (24 in)lb

▲1,203 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK2510	KiotiCX2510


PTO Power	20 hp	19.3 hp
Alternator	Not Published	—
Air Cleaner	Not Published	—
Engine Type	Liquid-cooled, inline, diesel	S204.2 gal-F
Fuel System	Indirect injection	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)
Displacement	85 in³	69 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	Liquid-cooled	Liquid cooled
Engine Manufacturer	KIOTI (Daedong)	Daedong Industrial Co., LTD
Engine Power (Gross)	24.5 hp	21 hp
Engine Emissions Constraints	Tier 4	—

Weight with ROPS and Loader	Not Published	2,308 lb
Weight with Cab and Loader	Not Published	2,804 lb
Tractor Weight (Base)	—	1,488 lbs with ROPS

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	6 year powertrain warranty

Pump Type	Gear pump	Variable displacement pump
Steering Flow	Not Published	4.4 qts 1.1 gal
Implement Flow	Not Published	6.86 gpm
Total Hydraulic Flow	11.3 gpm	11.3 gpm
Hydraulic System Type	Open center	open center
Rear Remote Hydraulic Flow	Not Published	NOT FOUND
Overall Hydraulic Pump Flow	11.3 gpm	11.3 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	0	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)
System Operating Pressure	—	Not specified in document

PTO Rear	540 rpm	540 rpm
PTO Type	Transmission	Transmission (CX2510); Live (CX2510 HST/CAB)
Lift Control Type	Position control	Position
Hitch Lift Capacity	1,203.0 lb (at 24 in)	1,203 lb.
Mid-PTO Availability	Optional	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,203.0 lb	700 lbs

R3 Turf - Rear	33X12.50-16.5	33×12.5-16.5
R3 Turf - Front	23X8.50-12	23×8.5-12
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)
R4 Industrial - Rear	12-16.5	12-16.5
R4 Industrial - Front	23X8.50-12	23×8.5-12
R1 Agricultural - Rear	11.2-16	11.2-16
R1 Agricultural - Front	7.0-12	7.0-12

Coolant Capacity	Not Published	1.0 U.S. gal
Crankcase Capacity	Not Published	0.8 U.S. gal
Fuel Tank Capacity	6.6 gal	6.60 gal
Front Axle Fluid Capacity	Not Published	—
Transmission / Hydraulic System Capacity	Not Published	3.4 U.S. gal

Loader Lift Height	87.8 in	87.8 in.
Loader Breakout Force	1,843 lb	1,843 lbs.
Quick Attach Loader System	Not Published	Quick attach bucket, 50 in.
Loader Lift Capacity (Full Height)	1,092 lb	1,092 lbs.

Clutch	Dry disc	Dry single
No. of Speeds	6F/2R	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]
Transmission Type	Gear	Manual [CX2510] / Hydrostatic [CX2510 HST]
Max Travel Speed (Forward)	10.8 mph	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]
Max Travel Speed (Reverse)	Not Published	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear Standard

Brakes	Wet disc	Wet Disc Type
Steering	Hydrostatic power	Hydrostatic Power Steering
Frame Type	Not Published	—
Front Axle Type	Not Published	Four-wheel drive
Drawbar Capacity	Not Published	—
Front Axle Rating	Not Published	—
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat with dual armrests and seat belt

Wheelbase	59.8 in	59.8 in.
Overall Width	49.2 in	49.4 in.
Ground Clearance	13.4 in	13.4 in.
Height to Top of ROPS	82.8 in	82.8 in.
Height to Top of Cab Model	Not Published	86.6 in.
Height to Top of ROPS (folded)	Not Published	82.8 in.
Min. Turn Radius without Brakes	Not Published	9 ft (2.75 m)
Overall Length with 3-Point Hitch	109.1 in	109.1 in. [CX2510/HST]; 111 in. [CAB]
Overall Length	—	110.25 in with weights; 99.33 in without weights

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti CX2510 / CK2510 Brush Screen Insert $249.99 Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Kioti CK2510 vs Kioti CX2510: Quick Answers

Which has more horsepower, the Kioti CK2510 or the Kioti CX2510?: The Kioti CK2510 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CX2510.
Which has more PTO horsepower, the Kioti CK2510 or the Kioti CX2510?: The Kioti CK2510 leads on pto hp at 20 hp hp, compared to 19.3 hp hp for the Kioti CX2510.
Which has more loader lift capacity, the Kioti CK2510 or the Kioti CX2510?: They are effectively tied: both machines are rated at 1,092 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Kioti CK2510 or the Kioti CX2510?: The Kioti CK2510 leads on 3-pt lift (24 in) at 1,203 lb lb, compared to 700 lb lb for the Kioti CX2510.
