Kioti CK3520 vs Kioti CK4010
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, this matchup is a dead heat: 3 categories to the Kioti CK3520, 3 to the Kioti CK4010, 3 tied. Machine pages: Kioti CK3520 and Kioti CK4010.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

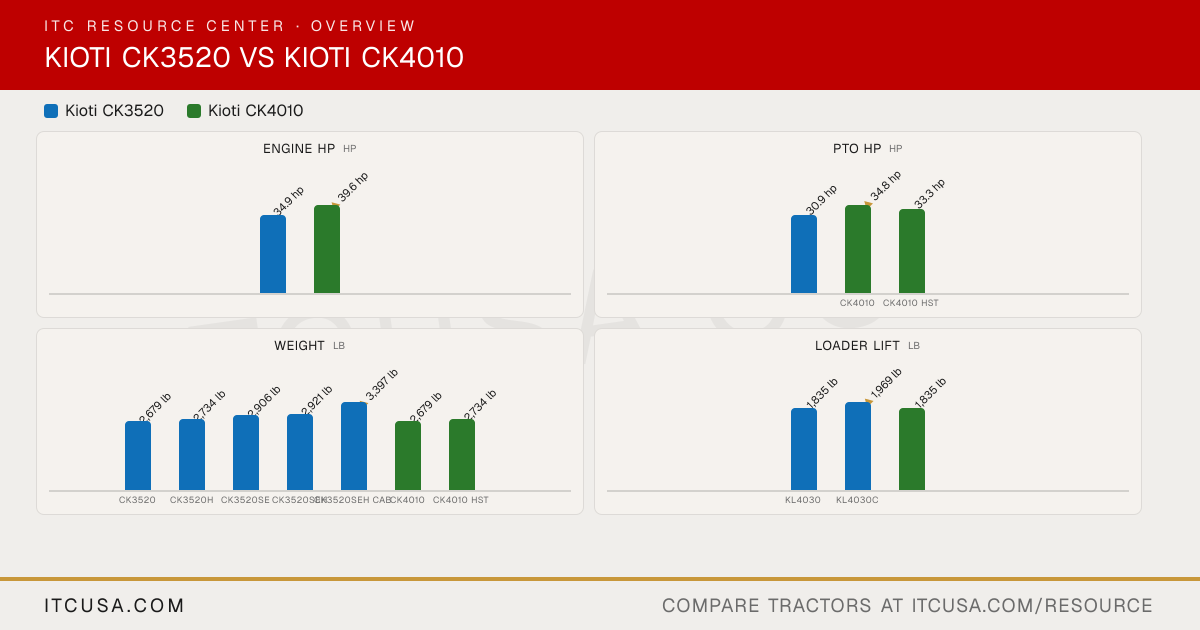

Category Verdict
| Spec | Kioti CK3520 | Kioti CK4010 |
|---|---|---|
| Engine HP (hp) | 34.9 hp | ▲ 39.6 hp |
| PTO HP (hp) | 30.9 hp | ▲ 34.8 hp |
| Weight (lb) | ▲ 3,397 lb | 2,734 lb |
| Loader Lift (lb) | ▲ 1,969 lb | 1,835 lb |
| 3-Pt Lift (24 in) (lb) | 1,631 lb | 1,631 lb |
| Lift Height (in) | 98.4 in | 98.4 in |
| Breakout Force (lbf) | 3,464 lbf | 3,464 lbf |
| Hydraulic Flow (gpm) | ▲ 11.7 gpm | 11.7 gpm |
| Travel Speed (mph) | 14.6 mph | ▲ 14.8 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiCK3520 | KiotiCK4010 |
|---|
| Engine Manufacturer | KIOTI | KIOTI (Daedong) |
|---|---|---|
| Engine Model | CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 | CK4010: 3H-TM4A; CK4010 HST: 3H-TH4A |
| Engine Type | 3-cylinder, in-line, liquid-cooled diesel | 3 cylinder, in-line vertical, water-cooled 4-cycle diesel, CRDI |
| No. of Cylinders | 3 | 3 |
| Displacement | 111.4 in³ | 111.4 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 34.9 hp | 39.6 hp |
| PTO Power | CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp | CK4010: 34.8 hp; CK4010 HST: 33.3 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Liquid-cooled | Water-cooled |
| Air Cleaner | Dry element | Not Published |
| Fuel System | Not Published | Common rail direct injection |
| Alternator | Not Published | 75 A, 12 V |
Kioti CK3520 vs Kioti CK4010: Quick Answers
- Which has more horsepower, the Kioti CK3520 or the Kioti CK4010?
- The Kioti CK4010 leads on engine hp at 39.6 hp hp, compared to 34.9 hp hp for the Kioti CK3520.
- Which has more PTO horsepower, the Kioti CK3520 or the Kioti CK4010?
- The Kioti CK4010 leads on pto hp at 34.8 hp hp, compared to 30.9 hp hp for the Kioti CK3520.
- Which is heavier, the Kioti CK3520 or the Kioti CK4010?
- The Kioti CK3520 leads on weight at 3,397 lb lb, compared to 2,734 lb lb for the Kioti CK4010.
- Which has more loader lift capacity, the Kioti CK3520 or the Kioti CK4010?
- The Kioti CK3520 leads on loader lift at 1,969 lb lb, compared to 1,835 lb lb for the Kioti CK4010.
- Which has more three-point hitch lift capacity, the Kioti CK3520 or the Kioti CK4010?
- They are effectively tied: both machines are rated at 1,631 lb lb for 3-pt lift (24 in).
