Kioti CK3520 vs Kioti DK35
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Kioti DK35 leads 5 categories to 4. Machine pages: Kioti CK3520 and Kioti DK35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

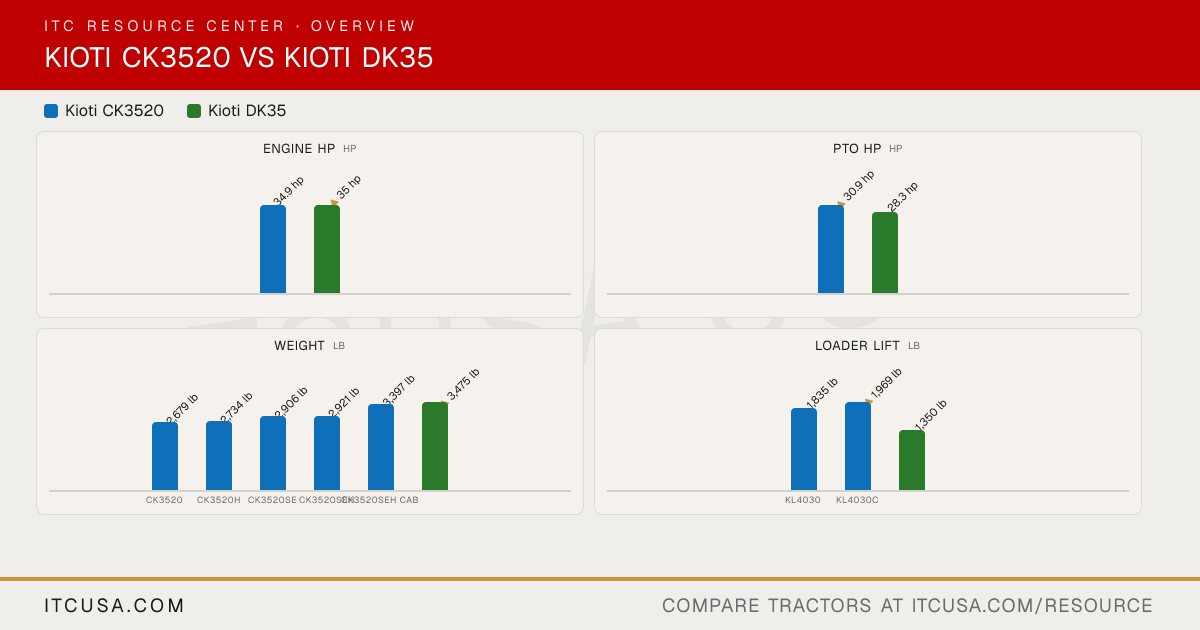

Category Verdict
| Spec | Kioti CK3520 | Kioti DK35 |
|---|---|---|
| Engine HP (hp) | 34.9 hp | ▲ 35 hp |
| PTO HP (hp) | ▲ 30.9 hp | 28.3 hp |
| Weight (lb) | 3,397 lb | ▲ 3,475 lb |
| Loader Lift (lb) | ▲ 1,969 lb | 1,350 lb |
| 3-Pt Lift (24 in) (lb) | 1,631 lb | ▲ 2,270 lb |
| Lift Height (in) | 98.4 in | ▲ 103.5 in |
| Breakout Force (lbf) | ▲ 3,464 lbf | 2,100 lbf |
| Hydraulic Flow (gpm) | 11.7 gpm | ▲ 12.5 gpm |
| Travel Speed (mph) | ▲ 14.6 mph | 13.9 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiCK3520 | KiotiDK35 |
|---|
| Engine Manufacturer | KIOTI | KIOTI (Daedong) |
|---|---|---|
| Engine Model | CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 | 3A165D |
| Engine Type | 3-cylinder, in-line, liquid-cooled diesel | Indirect injection, vertical, water-cooled, 4-cycle diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 111.4 in³ | 100.5 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 34.9 hp | 35 hp |
| PTO Power | CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp | 28.3 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry element | Dual stage air filter cartridge |
| Fuel System | Not Published | Indirect injection |
| Alternator | Not Published | 50 A, 12 V |
Kioti CK3520 vs Kioti DK35: Quick Answers
- Which has more horsepower, the Kioti CK3520 or the Kioti DK35?
- The Kioti DK35 leads on engine hp at 35 hp hp, compared to 34.9 hp hp for the Kioti CK3520.
- Which has more PTO horsepower, the Kioti CK3520 or the Kioti DK35?
- The Kioti CK3520 leads on pto hp at 30.9 hp hp, compared to 28.3 hp hp for the Kioti DK35.
- Which is heavier, the Kioti CK3520 or the Kioti DK35?
- The Kioti DK35 leads on weight at 3,475 lb lb, compared to 3,397 lb lb for the Kioti CK3520.
- Which has more loader lift capacity, the Kioti CK3520 or the Kioti DK35?
- The Kioti CK3520 leads on loader lift at 1,969 lb lb, compared to 1,350 lb lb for the Kioti DK35.
- Which has more three-point hitch lift capacity, the Kioti CK3520 or the Kioti DK35?
- The Kioti DK35 leads on 3-pt lift (24 in) at 2,270 lb lb, compared to 1,631 lb lb for the Kioti CK3520.
