Kioti CK3520 vs Kubota LX3520HSDC
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kioti CK3520 leads 5 categories to 2 (1 tied). Machine pages: Kioti CK3520 and Kubota LX3520HSDC.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

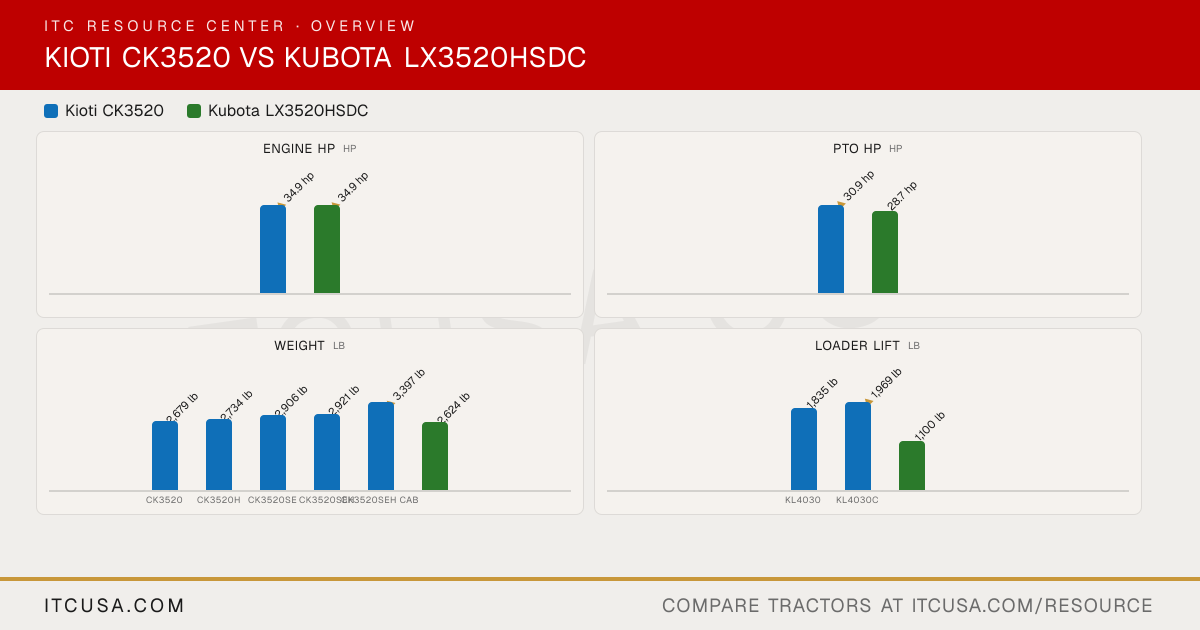

Category Verdict
| Spec | Kioti CK3520 | Kubota LX3520HSDC |
|---|---|---|
| Engine HP (hp) | 34.9 hp | 34.9 hp |
| PTO HP (hp) | ▲ 30.9 hp | 28.7 hp |
| Weight (lb) | ▲ 3,397 lb | 2,624 lb |
| Loader Lift (lb) | ▲ 1,969 lb | 1,100 lb |
| 3-Pt Lift (24 in) (lb) | 1,631 lb | ▲ 1,962 lb |
| Lift Height (in) | ▲ 98.4 in | 87.6 in |
| Breakout Force (lbf) | 3,464 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 11.7 gpm | 9.5 gpm |
| Travel Speed (mph) | 14.6 mph | ▲ 17 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiCK3520 | KubotaLX3520HSDC |
|---|
| Engine Manufacturer | KIOTI | Kubota |
|---|---|---|
| Engine Model | CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 | V1505-CR-TE5-D40Q4 |
| Engine Type | 3-cylinder, in-line, liquid-cooled diesel | Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 91.4 in³ |
| Rated Engine Speed | 2600 rpm | 2700 rpm |
| Engine Power (Gross) | 34.9 hp | 34.9 hp |
| PTO Power | CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp | 28.7 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Liquid-cooled | Pressurized radiator |
| Air Cleaner | Dry element | 6 in paper filter (with dual element) |
| Fuel System | Not Published | Direct injection |
| Alternator | Not Published | Not Published |
Kioti CK3520 vs Kubota LX3520HSDC: Quick Answers
- Which has more horsepower, the Kioti CK3520 or the Kubota LX3520HSDC?
- They are effectively tied: both machines are rated at 34.9 hp hp for engine hp.
- Which has more PTO horsepower, the Kioti CK3520 or the Kubota LX3520HSDC?
- The Kioti CK3520 leads on pto hp at 30.9 hp hp, compared to 28.7 hp hp for the Kubota LX3520HSDC.
- Which is heavier, the Kioti CK3520 or the Kubota LX3520HSDC?
- The Kioti CK3520 leads on weight at 3,397 lb lb, compared to 2,624 lb lb for the Kubota LX3520HSDC.
- Which has more loader lift capacity, the Kioti CK3520 or the Kubota LX3520HSDC?
- The Kioti CK3520 leads on loader lift at 1,969 lb lb, compared to 1,100 lb lb for the Kubota LX3520HSDC.
- Which has more three-point hitch lift capacity, the Kioti CK3520 or the Kubota LX3520HSDC?
- The Kubota LX3520HSDC leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,631 lb lb for the Kioti CK3520.
