Kioti DK45 vs Kioti NX4510

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the Kioti DK45, 4 to the Kioti NX4510, 1 tied. Machine pages: Kioti DK45 and Kioti NX4510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK45	KiotiNX4510

▶Engine
Engine Manufacturer	KIOTI (Daedong)	KIOTI
Engine Model	4A220	3F183T
Engine Type	Not Published	3-cylinder, in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI
No. of Cylinders	4	3
Displacement	134.1 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	45 hp
PTO Power	38 hp	37.6 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Dual stage air filter cartridge	Dry element
Fuel System	Not Published	Common Rail Diesel (CRDI)
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	9.9 gpm	Not Published
Steering Flow	4.3 gpm	Not Published
Total Hydraulic Flow	14.2 gpm	16.5 gpm
Overall Hydraulic Pump Flow	14.2 gpm	16.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Not Published	1
▶Fluid Capacity
Fuel Tank Capacity	11.5 gal	14.8 gal
Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.58 gal
Transmission / Hydraulic System Capacity	Not Published	14.53 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
▶PTO & Hitch
PTO Type	Hydraulic independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I (Category II ends optional)	Category I
Hitch Lift Capacity	3,968 lb	3,538 lb
Hitch Lift Capacity (at 24”)	2,987 lb	3,177 lb
Lift Control Type	Position, Draft and Mixed control	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	Synchronized shuttle	Synchro Shuttle
No. of Speeds	12F/12R	24x24
Max Travel Speed (Forward)	15.84 mph	15.71 mph
Max Travel Speed (Reverse)	Not Published	13.96 mph
Clutch	Dry single plate	Dry Type Single Stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet disc	Wet Multi Disc
Seat Suspension & Adjustability	Adjustable seat	Adjustable Seat
Front Axle Type	4WD (MFWD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Width	61.0 in	65.6 in
Wheelbase	71.6 in	75.6 in
Ground Clearance	14.5 in	13.8 in
Min. Turn Radius without Brakes	123.2 in	9.8 ft
Height to Top of ROPS	87.5 in	103.1 in
Height to Top of ROPS (folded)	64.5 in	Not Published
Height to Top of Cab Model	91 in	Not Published
Overall Length	130.7 in (with 3-point hitch)	139.6 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,895 lb (ag tires, ROPS)	3,978 lb (with AG tires)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural, Turf, Industrial
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	14.9-24	13.6-24
R3 Turf - Front	29x12.5-15	29-12.5-15
R3 Turf - Rear	21.5L-16.1	21.5L-16.1
R4 Industrial - Front	12x16.5	10-16.5
R4 Industrial - Rear	17.5L-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Not Published	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	KL249; KL1470; KL1590	KL6010
Loader Lift Height	KL249: 107.5 in; KL1470: 111.44 in; KL1590: 121.06 in	KL6010: 108.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	KL249: 2,050 lb; KL1470: 2,100 lb; KL1590: 2,500 lb	KL6010: 2,761 lb (at pivot pin, max height)
Loader Breakout Force	KL249: 3,695 lb; KL1470: 3,400 lb; KL1590: 4,000 lb	KL6010: 3,727 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Non-commercial: basic 2 years, powertrain 72 months, unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a KIOTI dealer near you→

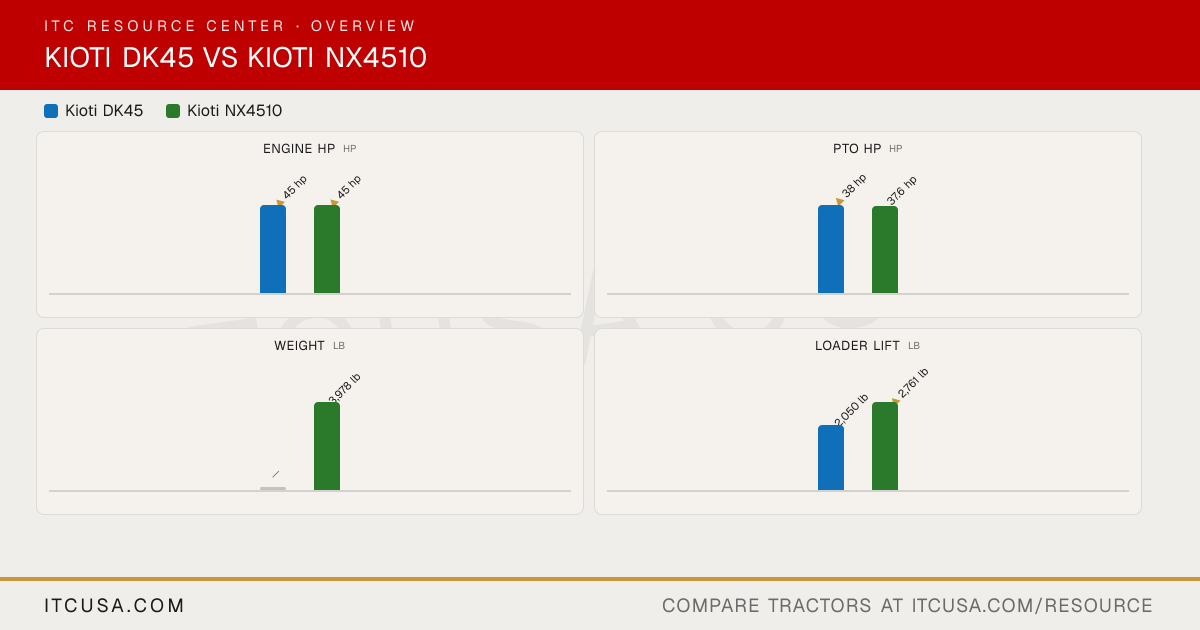

Kioti DK45 vs Kioti NX4510: Quick Answers

Which has more horsepower, the Kioti DK45 or the Kioti NX4510?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Kioti DK45 or the Kioti NX4510?

The Kioti DK45 leads on pto hp at 38 hp hp, compared to 37.6 hp hp for the Kioti NX4510.

Which is heavier, the Kioti DK45 or the Kioti NX4510?

The Kioti NX4510 leads on weight at 3,978 lb lb, compared to 3,895 lb lb for the Kioti DK45.

Which has more loader lift capacity, the Kioti DK45 or the Kioti NX4510?

The Kioti NX4510 leads on loader lift at 2,761 lb lb, compared to 2,500 lb lb for the Kioti DK45.

Which has more three-point hitch lift capacity, the Kioti DK45 or the Kioti NX4510?

The Kioti NX4510 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,987 lb lb for the Kioti DK45.
