Kioti DK5010 vs Kioti DK5320

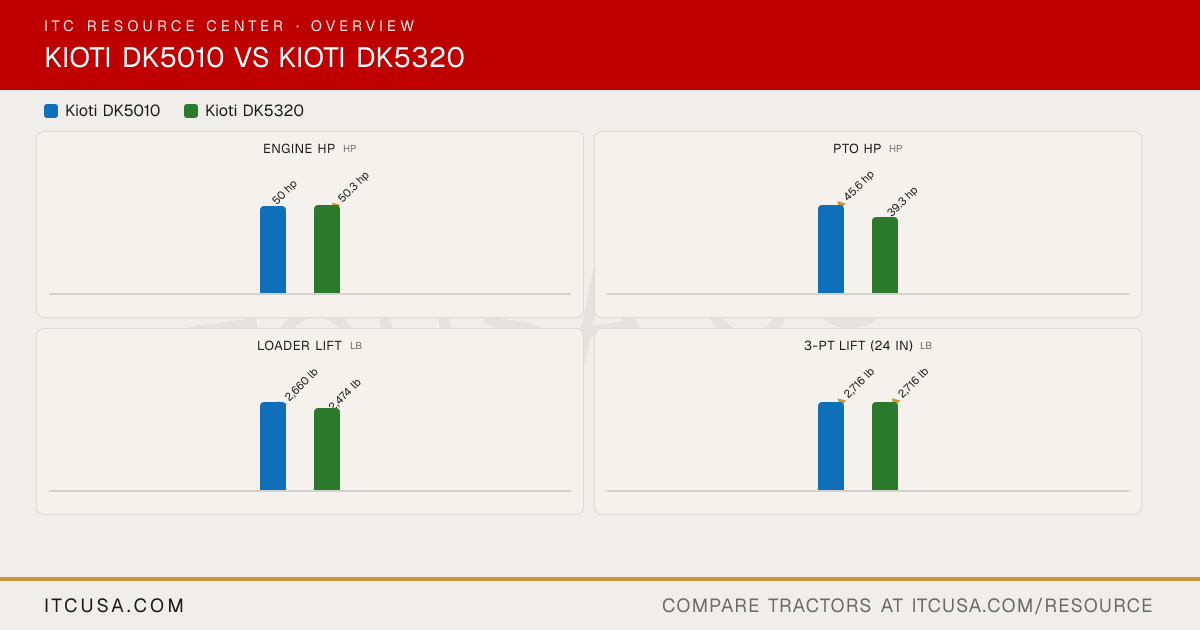

Across 8 measurable specs, the Kioti DK5010 leads 4 categories to 3 (1 tied). Machine pages: Kioti DK5010 and Kioti DK5320.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5010	KiotiDK5320

▶Engine
PTO Power	45.6 hp	39.3 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Dry element
Engine Type	In-Line Vertical, Water-Cooled Turbo Diesel Engine, CRDI	3-Cyl Turbo Diesel (CRDI)
Fuel System	Common Rail Direct Injection (CRDI)	Not Published
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Liquid-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	50 hp	50.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Gear	Gear
Steering Flow	Not Published	6.87 gpm
Implement Flow	Not Published	9.62 gpm
Total Hydraulic Flow	14.5 gpm	16.49 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.5 gpm	16.49 gpm
No. of Optional Remote Valves	2	Not Published
No. of Standard Remote Valves	0	2
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position
Hitch Lift Capacity	2,716 lbs (24 in aft. of hitch)	2,998 lbs @ lower link ball
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,716 lbs	2,716 lbs @ 24 in behind
▶Tire Options
R3 Turf - Rear	5.7 gal-16.1	5.7 gal-16.1
R3 Turf - Front	29X12.5-15	29X12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8.0-16	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	2.1 gal
Crankcase Capacity	Not Published	1.95 gal
Fuel Tank Capacity	11.9 gal	12.7 gal
Front Axle Fluid Capacity	Not Published	1.48 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
▶Loader & Attachments
Loader Lift Height	109 in (to pivot pin)	107.7 in
Loader Breakout Force	3,900 lb (at pivot pin)	3,895.0 lb
Quick Attach Loader System	Built-in parking stand (quick attach/detach); single-lever joystick w/ float; bucket level indicator	Quick attach (QA) bucket
Loader Lift Capacity (Full Height)	2,660 lb (at pivot pins)	2,474.0 lb
▶Transmission & Drivetrain
Clutch	Dry type, single stage	None
No. of Speeds	8F/8R	3 ranges w/ infinite speeds
Transmission Type	Synchronized H-Shuttle	Hydrostatic
Max Travel Speed (Forward)	17.3 mph	18.45 mph
Max Travel Speed (Reverse)	16.9 mph	12.92 mph
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock: Rear standard
▶Chassis, Steering & Controls
Brakes	Wet multi disc	Wet Disc Type
Steering	Hydrostatic power steering; tilt steering wheel	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Mechanical 4WD
Drawbar Capacity	Not Published	Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe suspension seat
▶Dimensions & Maneuverability
Wheelbase	71.3 in	71.3 in
Overall Width	62.8 in	62.8 in
Ground Clearance	15.2 in	14.5 in
Height to Top of ROPS	92.0 in	96.8 in
Height to Top of Cab Model	Not Published	93.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	124.3 in	125.5 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Kioti DK5010 vs Kioti DK5320: Quick Answers

Which has more horsepower, the Kioti DK5010 or the Kioti DK5320?

The Kioti DK5320 leads on engine hp at 50.3 hp hp, compared to 50 hp hp for the Kioti DK5010.

Which has more PTO horsepower, the Kioti DK5010 or the Kioti DK5320?

The Kioti DK5010 leads on pto hp at 45.6 hp hp, compared to 39.3 hp hp for the Kioti DK5320.

Which has more loader lift capacity, the Kioti DK5010 or the Kioti DK5320?

The Kioti DK5010 leads on loader lift at 2,660 lb lb, compared to 2,474 lb lb for the Kioti DK5320.

Which has more three-point hitch lift capacity, the Kioti DK5010 or the Kioti DK5320?

They are effectively tied: both machines are rated at 2,716 lb lb for 3-pt lift (24 in).
