Kioti DK5010 vs Kioti NS5310

Across 8 measurable specs, the Kioti DK5010 leads 5 categories to 3. Machine pages: Kioti DK5010 and Kioti NS5310.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

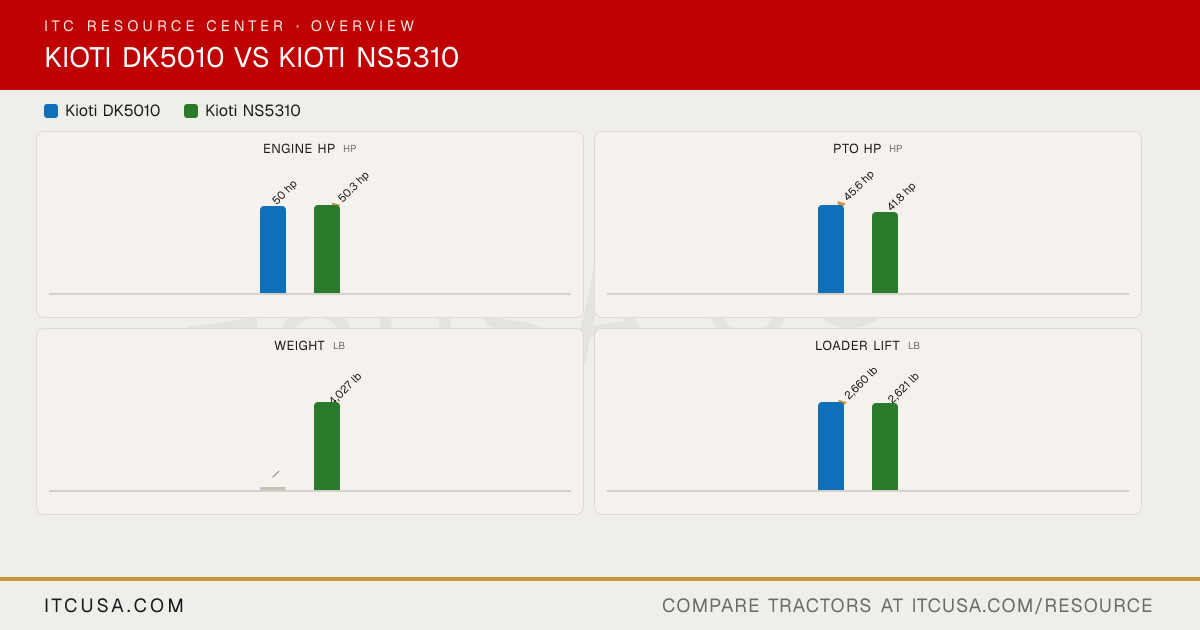

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5010	KiotiNS5310

▶Engine
PTO Power	45.6 hp	41.8 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	In-Line Vertical, Water-Cooled Turbo Diesel Engine, CRDI	In-line Vertical, Water-cooled 4-cycle Turbo Diesel, CRDI (Engine model: 3HT-S4TH50A)
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	50 hp	50.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	4,027.0 (1,827.0) (Weight w/AG tires)
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶Hydraulics
Pump Type	Gear	Gear
Steering Flow	Not Published	6.87 gpm
Implement Flow	Not Published	9.61 gpm
Total Hydraulic Flow	14.5 gpm	16.48 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.5 gpm	16.48 gpm
No. of Optional Remote Valves	2	1
No. of Standard Remote Valves	0	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position, Draft, Mixed Control
Hitch Lift Capacity	2,716 lbs (24 in aft. of hitch)	2,940 lb
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,716 lbs	2,493 lb
▶Tire Options
R3 Turf - Rear	5.7 gal-16.1	5.7 gal-16.1
R3 Turf - Front	29X12.5-15	29X12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8.0-16	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	2.03 gal
Crankcase Capacity	Not Published	1.95 gal
Fuel Tank Capacity	11.9 gal	13.2 gal
Front Axle Fluid Capacity	Not Published	2.25 gal
Transmission / Hydraulic System Capacity	Not Published	9.51 gal
▶Loader & Attachments
Loader Lift Height	109 in (to pivot pin)	106.30 in
Loader Breakout Force	3,900 lb (at pivot pin)	3,896 lb
Quick Attach Loader System	Built-in parking stand (quick attach/detach); single-lever joystick w/ float; bucket level indicator	Built-in parking stand; designed to be quickly and easily attached/detached
Loader Lift Capacity (Full Height)	2,660 lb (at pivot pins)	2,621 lb
▶Transmission & Drivetrain
Clutch	Dry type, single stage	None
No. of Speeds	8F/8R	3-Range / Infinite
Transmission Type	Synchronized H-Shuttle	Hydrostatic (HST)
Max Travel Speed (Forward)	17.3 mph	17.5 mph
Max Travel Speed (Reverse)	16.9 mph	12.2 mph
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical differential lock: rear standard
▶Chassis, Steering & Controls
Brakes	Wet multi disc	Wet disc type
Steering	Hydrostatic power steering; tilt steering wheel	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe suspension seat
▶Dimensions & Maneuverability
Wheelbase	71.3 in	75.5 in
Overall Width	62.8 in	67.1 in
Ground Clearance	15.2 in	13.4 in
Height to Top of ROPS	92.0 in	98.4 (2,499.4) w/o Beacon
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	124.3 in	136.4 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet

Kioti DK5010 vs Kioti NS5310: Quick Answers

Which has more horsepower, the Kioti DK5010 or the Kioti NS5310?

The Kioti NS5310 leads on engine hp at 50.3 hp hp, compared to 50 hp hp for the Kioti DK5010.

Which has more PTO horsepower, the Kioti DK5010 or the Kioti NS5310?

The Kioti DK5010 leads on pto hp at 45.6 hp hp, compared to 41.8 hp hp for the Kioti NS5310.

Which has more loader lift capacity, the Kioti DK5010 or the Kioti NS5310?

The Kioti DK5010 leads on loader lift at 2,660 lb lb, compared to 2,621 lb lb for the Kioti NS5310.

Which has more three-point hitch lift capacity, the Kioti DK5010 or the Kioti NS5310?

The Kioti DK5010 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,493 lb lb for the Kioti NS5310.
